Product Details:
Payment & Shipping Terms:
|
| Name: | Alumina Rotary Kiln | Type: | Metallurgy Machine Rotary Kiln |
|---|---|---|---|
| Condition: | New | Production Capacity T/d: | 240 |
| Slope %: | 3.5-4 | Supporting Bearing: | Roll，slide |
| Weight (t): | 217 | Warranty: | 12 Months |
| High Light: | Alumina Metallurgy Rotary Kiln,Refractory Alumina Rotary Kiln,Metallurgy Alumina Rotary Kiln |
||

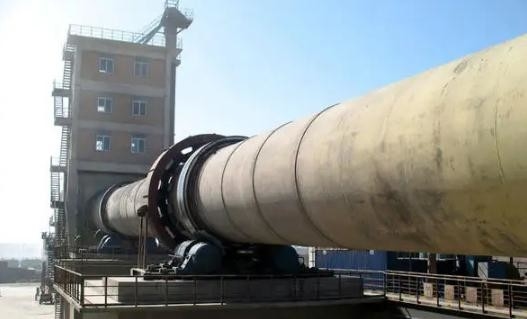

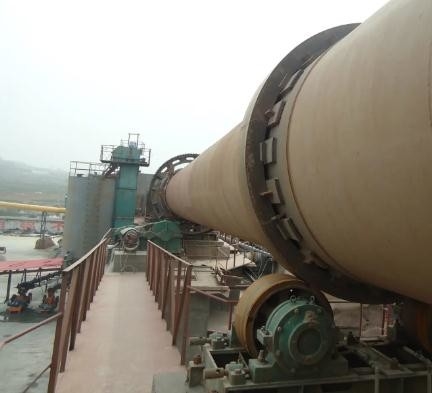

Φ4.5×90m Rotary Kiln Metallurgy Machine Refractory Alumina Rotary Kiln
1. Metallurgical chemical kiln introduction of Metallurgy Machine
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Refractory rotary kiln product parameters of Metallurgy Machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ2.5×60 | (912) | 0.3～1.0 | 4 | 240 | 55 | Machine | roll | 217 | |||||
| 2 | Φ3/3.6×60 | (4 929-2) | 0.7～1.35 | 3.5 | 360 | 80 | Machine | slide | 310 | |||||
3. Alumina rotary kiln product parameters of Metallurgy Machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×90 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
