| Name: | Plate Feeder /Apron Feeder | Feeding Size: | ≤1800mm |
|---|---|---|---|
| Length: | 19000 Mm | Model: | WBL120-19 |
| Classification: | Conveying Hoisting Machine | Brand: | ZTIC |
| Warranty: | 12 Months | Color: | Custom |
| High Light: | 19000mm Length Plate Feeder,Apron Plate Feeder For Mining,19000mm Apron Plate Feeder |
||

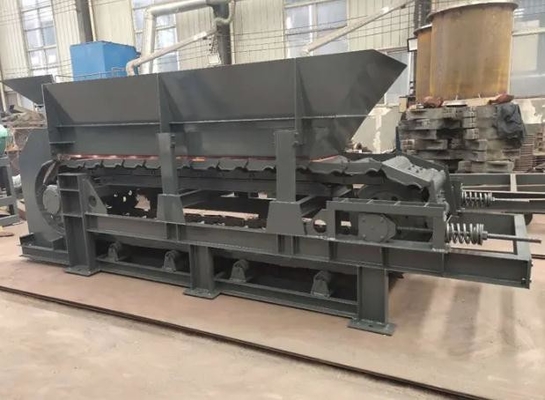

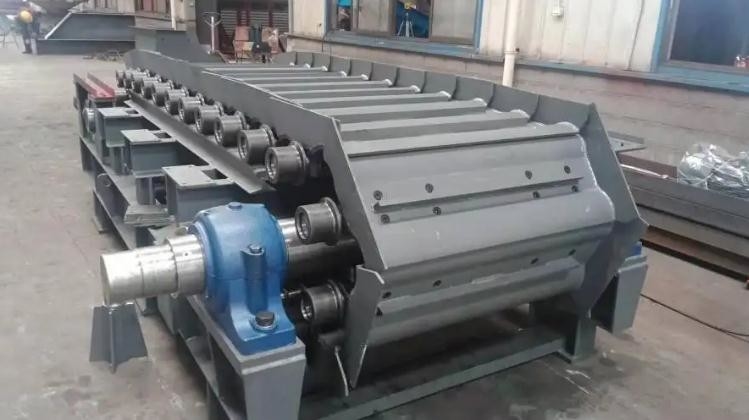

19000mm Length Plate Feeder Conveying Hoisting Machine For Mining
1. Performance characteristics of plate feeder(Apron Feeder) Of Conveying Hoisting Machine:
Traction chain adopts long pitch plate pin roller chain, the chain parts are made of alloy steel material, and after scientific heat treatment, wear-resisting performance is good, high tensile strength, long service life, the use of stamping tank, with transverse reinforcement in the middle, good rigidity of the tank, large bearing capacity. Arc lap of tank bottom plate to prevent material leakage. Drive motor adopts speed regulating motor, running speed is adjustable, in order to choose more reasonable throughput. Decorate form diversiform, but level, incline to decorate, still have a variety of level, incline combination to decorate. The single-machine conveying length is less than or equal to 60m, and the lifting height is less than or equal to 30m. Maximum dip Angle 0-75 degrees. The temperature of the material is lower than or equal to 600 ° C. Model can be divided into light plate feeder, medium plate feeder, heavy plate feeder.
2. Plate Feeder(Apron Feeder) Of Conveying Hoisting Machine Parameters:
(1)The technical parameters of medium duty Plate feeder(Apron Feeder):
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBL100-6 | 1000 | 6000 | 0.01-0.1 | ≦500 | 80-160 |
| WBL100-12 | 1000 | 12000 | 0.05-0.1 | ≦500 | 60-130 |
| WBL120-4 | 1200 | 4000 | 0.014-0.08 | ≦600 | 45-150 |
| WBL120-6 | 1200 | 6000 | 0.01-0.1 | ≦600 | 80-160 |
| WBL120-11 | 1200 | 11000 | 0.01-0.1 | ≦600 | 50-100 |
| WBL120-19 | 1200 | 19000 | 0.014-0.09 | ≦600 | 45-150 |
| WBL125-6 | 1250 | 6000 | 0.014-0.08 | ≦700 | 45-150 |
| WBL125-12 | 1250 | 12000 | 0.014-0.08 | ≦700 | 45-150 |
| WBL140-8 | 1400 | 8000 | 0.017-0.17 | ≦900 | 100-200 |
| WBL140-16 | 1400 | 16000 | 0.006-0.06 | ≦900 | 20-200 |
| WBL150-5 | 1500 | 5000 | 0.014-0.08 | ≦700 | 85-288 |
| WBL150-15 | 1500 | 15000 | 0.006-0.06 | ≦700 | 20-200 |
| WBL150-10.5 | 1500 | 10500 | 0.006-0.06 | ≦700 | 20-200 |
| WBL160-6 | 1600 | 6000 | 0.017-0.17 | ≦800 | 61-610 |
| WBL160-9 | 1600 | 9000 | 0.076 | ≦800 | 180 |
| WBL180-8 | 1800 | 8000 | 0.022-0.046 | ≦800 | 100-1000 |
| WBL180-12 | 1800 | 12000 | 0.05 | ≦800 | 360 |
| WBL220-10 | 2200 | 10000 | 0.018-0.055 | ≦1500 | 220-680 |
| WBL240-10 | 2400 | 10000 | 0.018-0.055 | ≦1500 | 220-680 |
(2)The technical parameters of heavy duty Plate feeder(Apron Feeder):
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBZ160-9 | 1600 | 9000 | 0.01-0.07 | ≦1000 | 27-270 |
| WBZ180-8 | 1800 | 8000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-8.75 | 1800 | 8750 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9 | 1800 | 9000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9.8 | 1800 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-10 | 1800 | 10000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ200-9.8 | 2000 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ220-10 | 1800 | 10000 | 0.01-0.07 | ≦1200 | ≦700 |
| WBZ230-10 | 2300 | 10000 | 0.01-0.07 | ≦1500 | ≦800 |
| WBZ240-10 | 2400 | 10000 | 0.02-0.06 | ≦1600 | ≦850 |
| WBZ250-11.5 | 2500 | 11500 | 0.01-0.07 | ≦1800 |
19000mm Length Plate Feeder Conveying Hoisting Machine For Mining
