Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Model: | Chain Conveyor |
|---|---|---|---|
| Advantage: | Large Conveying Capacity，Efficient Stable | Used In: | Mining, Metallurgy, Chemical, Casting, Building Materials |
| Conveying Speed M/s: | 1.25--2 | Color: | Custom |
| Classification: | Conveying Hoisting Machine | Warranty: | 12 Months |
| High Light: | Small Energy Consumption Chain Conveyor,Large Conveying Capacity Chain Conveyor |
||

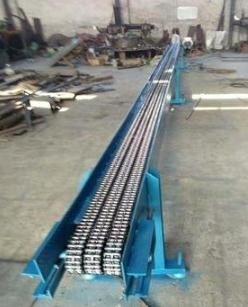

Small Energy Consumption Chain Conveyor Conveying Hoisting Machine
1. Chain conveyor Of Conveying Hoisting Machine product description
Widely used in mining, metallurgy, chemical, casting, building materials and other industries of transportation and production lines, hydropower station construction sites and ports and other production departments.
Synchronous chain conveyor two chains synchronous movement, suitable for all kinds of assembly conveyor line belt conveyor because of its large volume, long distance, small energy consumption, welcomed by users, but because of its plane can not bend, so that the scope of adaptation is limited. Coal mine due to the change of geological conditions, transport roadway must be bent in case of faults, forcing the long distance transport system into broken lines, had to use a number of belt conveyor (or scraper), the composition of multi-section broken line transport, complete the transport task.
2. Advantages of chain conveyor Of Conveying Hoisting Machine
The conveyor belt moves according to the friction transmission principle, which has the advantages of large conveying capacity, long conveying distance, smooth conveying, no relative movement between materials and the conveyor belt, small noise, simple structure, convenient maintenance, less energy consumption, standardized components and so on.
3. Product parameters of chain conveyor Of Conveying Hoisting Machine
| Belt width(mm) | Conveying length(m) Power (Kw) | Conveying speed(m/S) | Conveying capacity (t/h) | ||
| 400 | ≤12/2.2 | 12∽20/2.2∽4 | 20∽25/3.5∽7.5 | 1.25∽2.0 | 30∽60 |
| 500 | ≤12/3 | 12∽20/3∽5.5 | 30∽30/5.5∽7.5 | 1.25∽2.0 | 40∽80 |
| 650 | ≤12/4 | 12∽20/4∽5.5 | 20∽30/5.5∽11 | 1.25∽2.0 | 80∽120 |
| 800 | ≤6/4 | 10∽15/4∽5.5 | 15∽30/5.5∽15 | 1.25∽2.0 | 120∽200 |
| 1000 | ≤10/5.5 | 10∽20/5.5∽11 | 20∽40/11∽22 | 1.25∽2.0 | 200∽320 |
| 1200 | ≤10/7.5 | 10∽20/7.5∽15 | 20∽40/15∽30 | 1.25∽2.0 | 320∽480 |
Small Energy Consumption Chain Conveyor Conveying Hoisting Machine
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
