| Name: | Bucket Elevator | Type: | Belt Type Bucket Elevator |
|---|---|---|---|
| Suitable: | Metallurgy, Chemical Industry | Advantage: | Efficient Stable |
| Keyword: | Belt Bucket Elevator | Condition: | New |
| Warranty: | 12 Months | Classification: | Conveying Hoisting Machine |
| High Light: | Metallurgy Belt Type Bucket Elevator,Metallurgy Belt Bucket Elevator,ISO Belt Type Bucket Elevator |
||

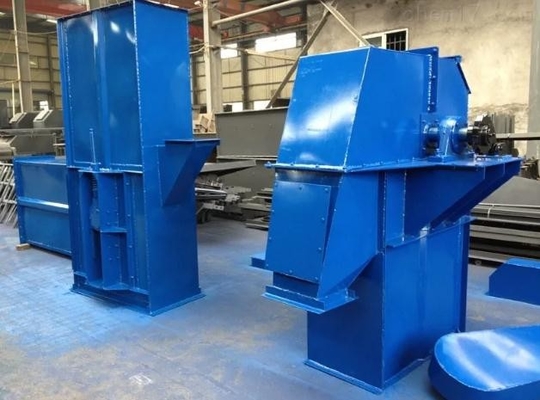

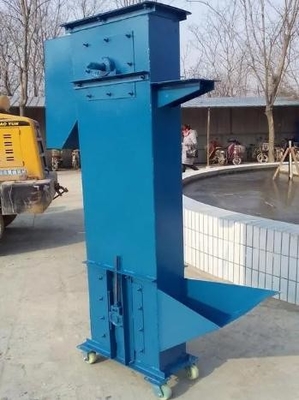

D160S/Q Belt Type Bucket Elevator Conveying Hoisting Machine
1. Conveying hoisting machine bucket elevator main components:
Bucket elevator by hopper, driving device, top and bottom roller (or sprocket), tape (or traction chain), tensioning device and housing.
2. Conveying hoisting machine bucket elevator product description:
Bucket elevator is suitable for low to high lifting, the supply of materials through the shaking table into the hopper after the machine automatically continuous operation upward transport.
3. Bucket elevator product parameters of conveying hoisting machine:
| Model | Production capacity (t/h) |
Feeding size Max(mm) |
Bucket speed(m/s) | Pitch of buckets (mm) | Device weight(kg) | |
| 10m | ±1m | |||||
| D160S/Q | 8/3.1 | 25 | 1.0 | 300 | 1580 | 100 |
| D250S/Q | 21.6/11.8 | 35 | 1.25 | 400 | 2930 | 130 |
| D350S/Q | 42/25 | 45 | 1.25 | 500 | 3315 | 190 |
| D450S/Q | 69.5/48 | 55 | 1.25 | 640 | 4664 | 250 |
| TD160S/Q | 27/9 | 25 | 1.4 | 350/280 | 1640 | 120 |
| TD250S/Q | 59/20 | 35 | 1.6 | 450/360 | 3060 | 150 |
| TD315S/Q | 67/28 | 40 | 1.6 | 500/400 | 3310 | 180 |
| TD400S/Q | 110/40 | 45 | 1.8 | 560480 | 4016 | 210 |
| TD500S/Q | 154/63 | 50 | 1.8 | 625/500 | 5110 | 280 |
| TD630S/Q | 238/142 | 60 | 2.0 | 710 | 8160 | 430 |
| HL300S/Q | 28/16 | 40 | 1.25 | 500 | 3930 | 200 |
| HL400S/Q | 47/30 | 50 | 1.25 | 600 | 4990 | 260 |
| TH315Sh/Zh | 59/35 | 35 | 1.4 | 512 | 3860 | 160 |
| TH400Sh/Zh | 94/58 | 40 | 1.4 | 512 | 4780 | 180 |
| TH500Sh/Zh | 118/73 | 50 | 1.5 | 688 | 5620 | 235 |
| TH630Sh/Zh | 185/114 | 55 | 1.5 | 688 | 8670 | 453 |
| PL250 | 22.3/30 | 35 | 0.5 | 200 | 3012 | 136 |
| PL350 | 50/59 | 45 | 0.4 | 250 | 4180 | 214 |
| PL450 | 85/100 | 50 | 0.4 | 320 | 5660 | 293 |
| ZL250 | 55 | 35 | 0.58 | 250 | 3217 | 148 |
| ZL350 | 80 | 45 | 0.58 | 250 | 4210 | 175 |
| ZL450 | 120 | 50 | 0.58 | 300 | 5692 | 250 |
| ZL600 | 160 | 55 | 0.58 | 300 | 9374 | 480 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
