Product Details:
Payment & Shipping Terms:
|
| Name: | Bucket Elevator | Model: | D250S/Q |
|---|---|---|---|
| Production Capacity: | 21.6/11.8 T/h | Usage: | Conveye Materials In Vertical State |
| Feeding Size: | 35 Mm Max | Warranty: | 12 Months |
| Color: | Custom | Type: | Conveying Hoisting Machine |
| High Light: | Efficient Stable Belt Bucket Elevator,11.8t/h Belt Bucket Elevator,35mm max Belt Bucket Elevator |
||

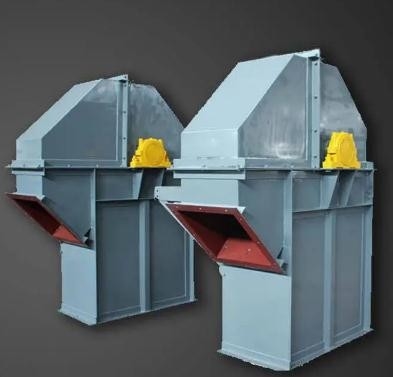

Efficient Stable Belt Type Bucket Elevator Conveying Hoisting Machine
1. Conveying hoisting machine bucket elevator working principle:
The hopper scoops up the material from the storage below, and as the conveyor belt or chain is lifted to the top, bypits the jacking wheel and flipped down, the bucket elevator pours the material into the receiving tank. Belt drive bucket elevator transmission belt generally adopts rubber belt, mounted on or above the transmission drum and the upper and lower to the drum. Chain drive bucket elevator is generally equipped with two parallel transmission chains, on or below a pair of transmission sprockets, under or above a pair of sprockets. The bucket elevator is generally equipped with a casing to prevent dust from flying in the bucket elevator.
2. Conveying hoisting machine bucket elevator product parameters:
| Model | Production capacity (t/h) |
Feeding size Max(mm) |
Bucket speed(m/s) | Pitch of buckets (mm) | Device weight(kg) | |
| 10m | ±1m | |||||
| D160S/Q | 8/3.1 | 25 | 1.0 | 300 | 1580 | 100 |
| D250S/Q | 21.6/11.8 | 35 | 1.25 | 400 | 2930 | 130 |
| D350S/Q | 42/25 | 45 | 1.25 | 500 | 3315 | 190 |
| D450S/Q | 69.5/48 | 55 | 1.25 | 640 | 4664 | 250 |
| TD160S/Q | 27/9 | 25 | 1.4 | 350/280 | 1640 | 120 |
| TD250S/Q | 59/20 | 35 | 1.6 | 450/360 | 3060 | 150 |
| TD315S/Q | 67/28 | 40 | 1.6 | 500/400 | 3310 | 180 |
| TD400S/Q | 110/40 | 45 | 1.8 | 560480 | 4016 | 210 |
| TD500S/Q | 154/63 | 50 | 1.8 | 625/500 | 5110 | 280 |
| TD630S/Q | 238/142 | 60 | 2.0 | 710 | 8160 | 430 |
| HL300S/Q | 28/16 | 40 | 1.25 | 500 | 3930 | 200 |
| HL400S/Q | 47/30 | 50 | 1.25 | 600 | 4990 | 260 |
| TH315Sh/Zh | 59/35 | 35 | 1.4 | 512 | 3860 | 160 |
| TH400Sh/Zh | 94/58 | 40 | 1.4 | 512 | 4780 | 180 |
| TH500Sh/Zh | 118/73 | 50 | 1.5 | 688 | 5620 | 235 |
| TH630Sh/Zh | 185/114 | 55 | 1.5 | 688 | 8670 | 453 |
| PL250 | 22.3/30 | 35 | 0.5 | 200 | 3012 | 136 |
| PL350 | 50/59 | 45 | 0.4 | 250 | 4180 | 214 |
| PL450 | 85/100 | 50 | 0.4 | 320 | 5660 | 293 |
| ZL250 | 55 | 35 | 0.58 | 250 | 3217 | 148 |
| ZL350 | 80 | 45 | 0.58 | 250 | 4210 | 175 |
| ZL450 | 120 | 50 | 0.58 | 300 | 5692 | 250 |
| ZL600 | 160 | 55 | 0.58 | 300 | 9374 | 480 |
Efficient Stable Belt Type Bucket Elevator Conveying Hoisting Machine
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
