Product Details:
Payment & Shipping Terms:
|
| Model: | CT60-9 Hydraulic Crawler Excavator | Name: | Crawler Tractor |
|---|---|---|---|
| Max. Digging Height: | 5889mm | Max. Dumping Height: | 4201 Mm |
| Max. Digging Depth: | 3812mm | Bucket Width Mm: | 750 Mm |
| Classification: | Heavy Duty Construction Machinery | Warranty: | 12 Months |
| High Light: | Digging Height 5889mm Hydraulic Crawler Excavator,Digging Height 5889mm Crawler Excavator |
||

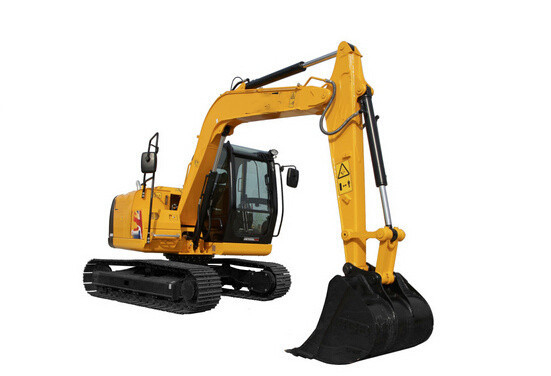

Heavy Duty Construction Machinery Crawler Excavator Max. Digging Height 5889mm
1. Technical Specification Of Heavy Duty Construction Machinery CT60-9 Hydraulic Crawler Excavator
| Engine | Travel System | ||
| Model | Yanmar 4TNV94L | Travel motors |
KYB, Japan; |
| Type | Direct injection, 4 stroke, water cooled, natural intake | Support roller quantities | 2×5 |
| Carrier roller quantities | 2×1 | ||
| No. of cylinder | 4 | Travel shoes | 2X37 |
| Bore and stroke | 94X110(mm) | Travel speed | 2.5/4.0(km/h) |
| Displacement | 3.054L | Drawbar pulling force | 50.4kN |
| Power output | 36.2kw/2100rpm | Gradeability | 70%(300) |
|
Max. torque |
193.2～210.6N.m/1260±100 rpm | Track shoes thickness | 6mm |
| Hydraulic System | Cab & Electrical System | |||||
| Pump
|
KYB, Japan | Cab | installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | |||
| Type | axial piston pump+ gear pump | |||||
| Max. discharge flow | 160 (L/min) | |||||
| Max. discharge pressure | ||||||
| Boom, arm and bucket | 24.5 MPa | Voltage | 12V | |||
| Travel circuit | 18.6 MPa | Batteries | 1x12V | |||
| Swing circuit | 20.5 MPa | Battery capacity | 80Ah | |||
| Control circuit | 3.9 MPa | Boom, Arm ＆ Bucket | ||||
| Pilot control pump | Gear type | Boom cylinder | Φ110xΦ65xS720-L1095 | |||
| Main control valves | KYB, Japan | Arm cylinder | Φ85xΦ55xS880-L1280 | |||
| Oil cooler | Air cooled type | Bucket cylinder | Φ80xΦ50xS600-L925 | |||
| Swing System | Refilling Capacity & lubrication | |||||
| Swing motor |
KYB, Japan |
Fuel tank | 125 L | |||
| Swing motor type | Axial-piston motor | Cooling system | 15 L | |||
| Brake | Hydraulic oil released | Engine oil | 10.5 L | |||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 78 L Tank Oil Level | |||
| Swing speed | 10 r/min | 100 L Hydraulic System | ||||
| Bucket | ||||||
| Type | Backhoe bucket | |||||
| Bucket capacity | 0.22m3 (SAE) | |||||
| Bucket Capacity scope | 0.072-0.25m3 | |||||
| Number of bucket teeth | 5 | |||||
| Bucket width | 750 mm | |||||
| Working Ranges | ||||||
| Boom length | 3050mm | |||||
| A | Max. digging height | 5889mm | ||||
| B | Max. dumping height | 4201mm | ||||
| C | Max. digging depth | 3812mm | ||||
| D | Max. vertical digging depth | 3008mm | ||||
| F | Max. digging distance | 6257mm | ||||
| G | Max. digging reach at ground level | 6102mm | ||||
| H | Min swing radius of work equipment | 2585mm | ||||
| Digging Force (ISO6015) | ||||||
| Arm length | 1580mm | |||||
| A | Bucket digging force | 36.7 KN | ||||
| B | Arm digging force | 26.1 KN | ||||

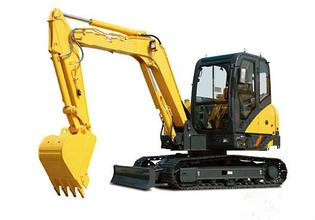

Heavy Duty Construction Machinery Crawler Excavator Max. Digging Height 5889mm
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
