Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Grade Ability: | 40% |
|---|---|---|---|
| Overall Dimension (LxWxH): | 2400x880x1100 Mm | Drum Width: | 600 Mm |
| Diesel Engine Power: | 5.68 KW | Warranty: | 12 Months |
| Classification: | Yellow | Port: | Qingdao/Tianjin/Shanghai |
| High Light: | 2400x880x1100mm Hand Road Roller,5.68KW Hand Road Roller |
||

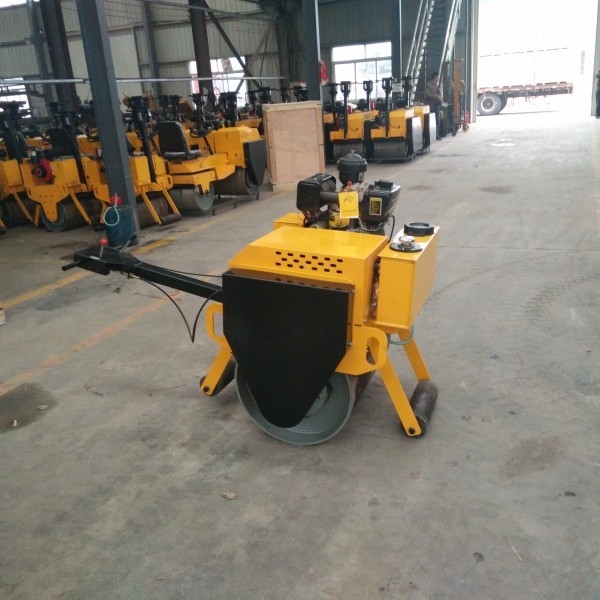

2400x880x1100mm Mini Hand Road Roller For Heavy Duty Construction Machinery
1. Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery Product introduction:
LTC08H Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface,such as foundation of groove wider than 0.8m, building construction, back filling for pipeline and gymnasium ground.
2. Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery Main Features:
(1) The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
(2) All wheel drive, strong climbing capability;
(3) Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;
(4) Designed with guide wheel and joystick, it is labor saving and easy to control.Adopt imported pump and starting motor,CVT.
3. Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery technical data:
| Model | LTC08H | |||
| Operating mass | kg | 770 | ||
| Static linear load | N/cm | 62/62 | ||
| Vibration amplitude | mm | 0.25 | ||
| Centrifuge force | Kn | 12 | ||
| Vibration frequency | Hz | 48 | ||
| Travel speed | Km/h | 0-4 | ||
| Grade ability | % | 40 | ||
| Turning radius | mm | 2700 | ||
| Overall dimension (LxWxH) | mm | 2400x880x1100 | ||
| Vibration drum diameter | mm | 400 | ||
| Drum width | mm | 600 | ||
| Wheel base | mm | 470 | ||
| Diesel engine power | Kw | 5.68 | ||
| Diesel engine model | CF186F | |||
| Spinkler tank capacity | L | 32 | ||
| Driving pump | DANFOSS | |||
| Driving motor | Eton | |||
2400x880x1100mm Mini Hand Road Roller For Heavy Duty Construction Machinery
2400x880x1100mm Mini Hand Road Roller For Heavy Duty Construction Machinery
