Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Small Size Road Roller |
|---|---|---|---|
| Vibration Frequency: | 48 Hz | Grade Ability: | 40% |
| Overall Dimension (LxWxH Mm): | 2400x880x1100 | Diesel Engine Power Kw: | 5.68 |
| Port: | Qingdao/Tianjin/Shanghai | Classification: | Heavy Duty Construction Machinery |
| High Light: | 770kg Road Roller Small Size,48Hz Road Roller Small Size |
||

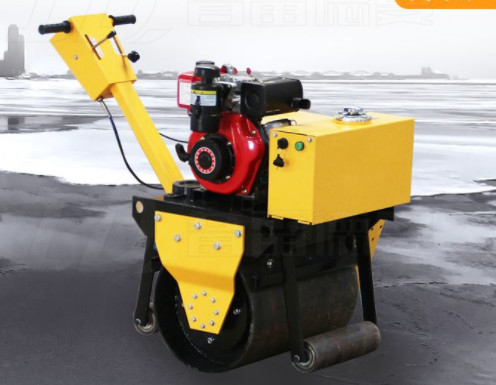

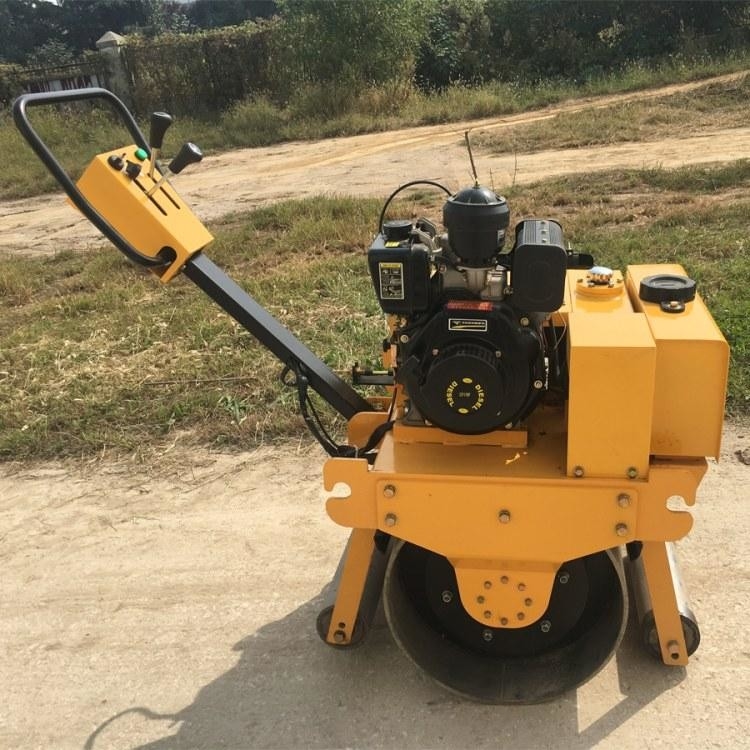

Heavy Duty Construction Machinery Small Size Road Roller Operating Mass 770kg
1. Road Roller Of Heavy Duty Construction Machinery Product introduction:
LTC08H Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface,such as foundation of groove wider than 0.8m, building construction, back filling for pipeline and gymnasium ground.
2. Road Roller Of Heavy Duty Construction Machinery Main Features:
(1) The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
(2) All wheel drive, strong climbing capability;
(3) Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;
(4) Designed with guide wheel and joystick, it is labor saving and easy to control.Adopt imported pump and starting motor,CVT.
3. Road Roller Of Heavy Duty Construction Machinery technical data:
| Model | LTC08H | |||
| Operating mass | kg | 770 | ||
| Static linear load | N/cm | 62/62 | ||
| Vibration amplitude | mm | 0.25 | ||
| Centrifuge force | Kn | 12 | ||
| Vibration frequency | Hz | 48 | ||
| Travel speed | Km/h | 0-4 | ||
| Grade ability | % | 40 | ||
| Turning radius | mm | 2700 | ||
| Overall dimension (LxWxH) | mm | 2400x880x1100 | ||
| Vibration drum diameter | mm | 400 | ||
| Drum width | mm | 600 | ||
| Wheel base | mm | 470 | ||
| Diesel engine power | Kw | 5.68 | ||
| Diesel engine model | CF186F | |||
| Spinkler tank capacity | L | 32 | ||
| Driving pump | DANFOSS | |||
| Driving motor | Eton | |||
Our Products will be continuously improved with the progressing of the technique, So please indicate the difference between the listed parameters in the sample sheet and structure features and take material object as the standard.
