| Condition: | New | Type: | 0.8ton Mini Hand Road Roller |
|---|---|---|---|
| Operating Mass: | 770kg | Vibration Frequency: | 48 Hz |
| Overall Dimension (LxWxH): | 2400x880x1100 Mm | Drum Width: | 600 Mm |
| Classification: | Heavy Duty Construction Machinery | Port: | Qingdao/Tianjin/Shanghai |
| High Light: | Wheel Base 470mm Hand Road Roller,48Hz Hand Road Roller |
||

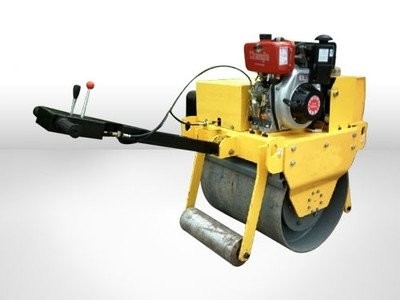

Wheel Base 470mm Mini Hand Road Roller Heavy Duty Construction Machinery
1. Mini Hand Road Roller Of Heavy Duty Construction Machinery Product introduction:
LTC08H Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface,such as foundation of groove wider than 0.8m, building construction, back filling for pipeline and gymnasium ground.
2. Mini Hand Road Roller Of Heavy Duty Construction Machinery Main Features:
(1) The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
(2) All wheel drive, strong climbing capability;
(3) Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;
(4) Designed with guide wheel and joystick, it is labor saving and easy to control.Adopt imported pump and starting motor,CVT.
3. Mini Hand Road Roller Of Heavy Duty Construction Machinery technical data:
| Model | LTC08H | |||
| Operating mass | kg | 770 | ||
| Static linear load | N/cm | 62/62 | ||
| Vibration amplitude | mm | 0.25 | ||
| Centrifuge force | Kn | 12 | ||
| Vibration frequency | Hz | 48 | ||
| Travel speed | Km/h | 0-4 | ||
| Grade ability | % | 40 | ||
| Turning radius | mm | 2700 | ||
| Overall dimension (LxWxH) | mm | 2400x880x1100 | ||
| Vibration drum diameter | mm | 400 | ||
| Drum width | mm | 600 | ||
| Wheel base | mm | 470 | ||
| Diesel engine power | Kw | 5.68 | ||
| Diesel engine model | CF186F | |||
| Spinkler tank capacity | L | 32 | ||
| Driving pump | DANFOSS | |||
| Driving motor | Eton | |||
Wheel Base 470mm Mini Hand Road Roller Heavy Duty Construction Machinery
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
