Product Details:
Payment & Shipping Terms:
|
| Product Name: | WZ30-25 Backhoe Loader | Type: | Comfort Edition |
|---|---|---|---|
| L*W*H (mm ): | 7600×2100×3100 | Wheel Base: | 2250 Mm |
| Min. Ground Clearance: | 300mm | Bucket Capacity: | 1.3m3 |
| Classification: | Heavy Duty Construction Machinery | Warranty: | 12 Months |
| High Light: | Backhoe Loader Heavy Duty Construction Machinery,Bucket Dumping Distance 1022mm Backhoe Loader |
||

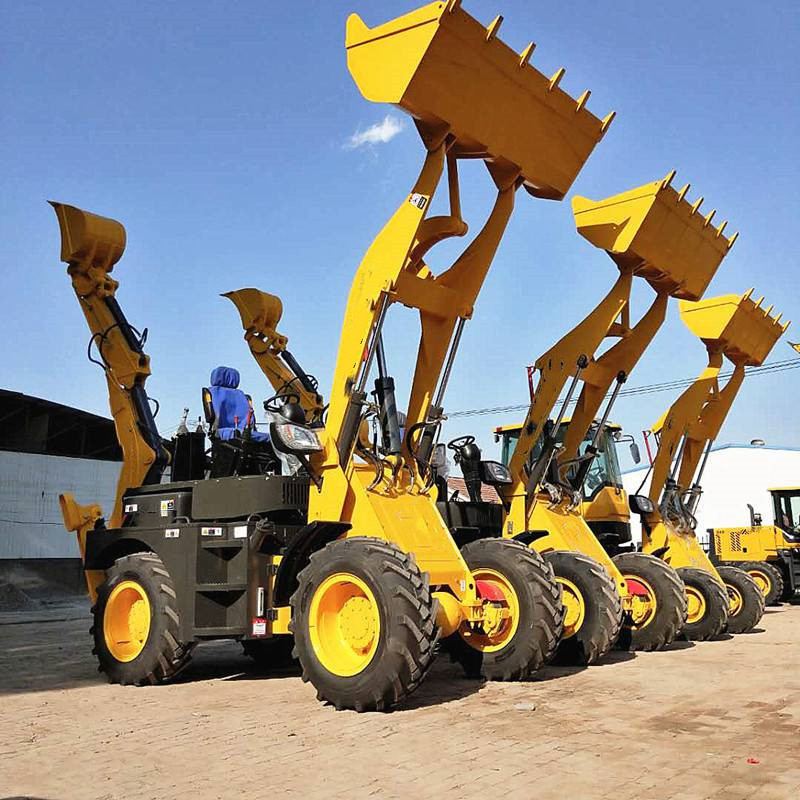

Backhoe Loader Heavy Duty Construction Machinery Bucket Dumping Distance 1022mm
1. Backhoe loader Heavy Duty Construction Machinery product introduction
The excavation loader is a single device composed of three pieces of construction equipment. Commonly known as "busy at both ends". During construction, the operator only needs to turn the chair to change the working end. The main job of the excavators is to dig ditches to lay out pipes and underground cables, lay foundations for buildings and set up drainage systems.
2. Heavy Duty Construction Machinery WZ30-25 backhoe loader Comfort Edition product parameters
| The Performance Parameter of Backhoe Loader WZ30-25 Comfort Edition | |
| Overall Operating Weight | 6600KG |
| Transport Dimension | |
| L*W*H (mm ) | 7600×2100×3100 |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.3m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 3500mm |
| Bucket Dumping Distance | 1022mm |
| Digging Depth | 52mm |
| Backhoe Capacity(Width) | 0.3m3(620mm) |
| Max. Digging Depth | 4082mm |
| Optional Max. Digging Depth | 5100mm(Digging arm with telescopic function) |
| Swing Angle of backhoe | 1900 |
| Max. Pulling Force | 39KN |
| Wheel tread | 1600mm |
| Wheel base | 2680mm |
| Engine | |
| Model | YUNNEI 4102 Turbo |
| Type | In Line,Direct injection,Four-Stroke,Water Cooling |
| Rated Power | 76KW |
| Rated Speed | 2400r/min |
| Displacement | 4.4L |
| Steering System | |
| Steering Angle | ±36 ° |
| Min. turning radius | 5018mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Model | Wheel Hub Reducer |
| Final Reducer | Single Stage Final Reducer |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Power Transmission |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max.Speed | 28Km/h |
| Optional Gears | Four Gears Ahead, Four Gears Astern |
| Max.Speed | 40Km/h |
| Tyre | |
| Model | 16/70-20 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Standard equipped | Before shovel bucket, after digging scoop, luxury interior cab, heater, fan, luxury adjustable rotating seat, adjustable dashboard, after digging shovel is hydraulic pilot before operation, the cab with push-pull window, cab can move forward (maintenance), 76 kw engine within cloud, 16/70-20 tires, 280 gearbox, the double pump, add big round edge bridge, The A-leg strap is locked. |
| The parameters or configuration are subject to change without notice. | |

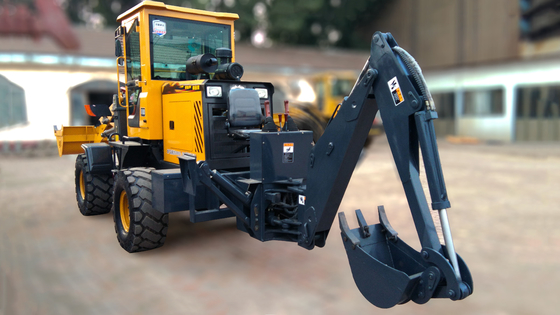

Backhoe Loader Heavy Duty Construction Machinery Bucket Dumping Distance 1022mm
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
