Product Details:
Payment & Shipping Terms:
|
| Type: | Deluxe Configuratio | Total Operating Weight: | 7500Kg |
|---|---|---|---|
| Length*width*height(mm): | 7600x2260x2900 | Service Braking: | 2250mm |
| Emergency Brake: | Air Over Hydraulic Caliper Disc Brake Parking | Flow: | 120L/min |
| Classification: | Heavy Duty Construction Machinery | Warranty: | 12 Months |
| High Light: | Deluxe Configuration Backhoe Loader,Backhoe Loader 2200R/MIN |
||

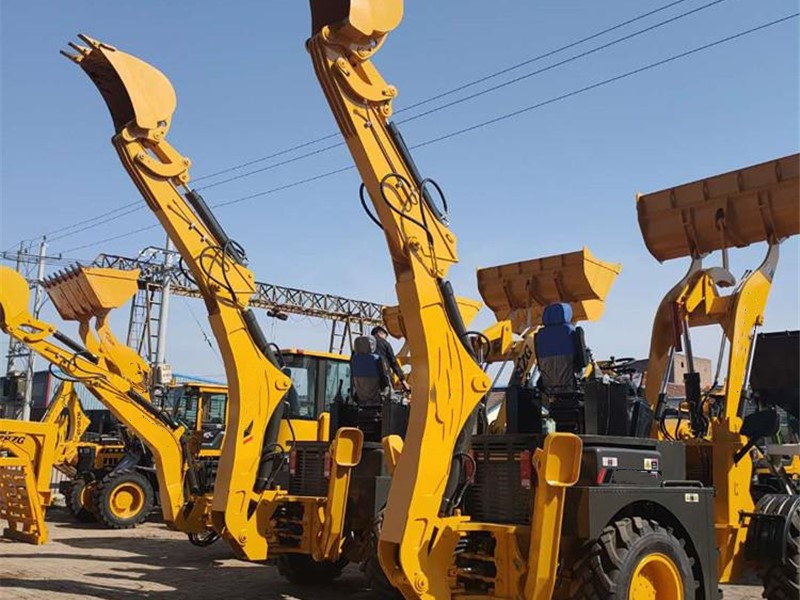

Deluxe Configuration Backhoe Loader Of Heavy Duty Construction Machine
1. Backhoe loader Heavy Duty Construction Machinery product introduction
The excavation loader is a single device composed of three pieces of construction equipment. Commonly known as "busy at both ends". During construction, the operator only needs to turn the chair to change the working end. The main job of the excavators is to dig ditches to lay out pipes and underground cables, lay foundations for buildings and set up drainage systems.
2. Composition of backhoe loader Heavy Duty Construction Machinery

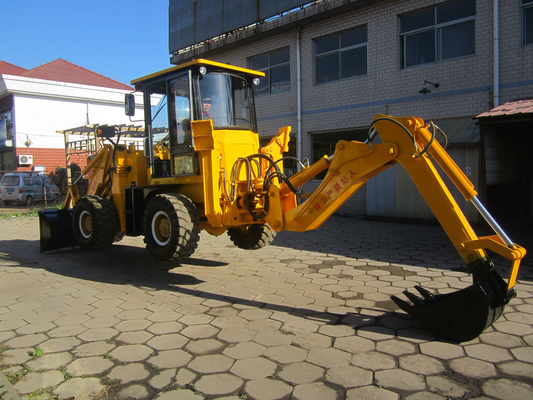

A excavating loader consists of: Power train, loading end, excavating end. Each device is designed for a specific type of job. On a typical construction site, an excavator operator typically needs to use all three components to get the job done.
(1) Power train
Excavate loader cab
(2) Loader
Excavate loader loading end
(3) Excavator
Excavating loader excavating end
(4) Stabilizer foot
3. WZ30-25 Backhoe Loader Deluxe Edition Heavy Duty Construction Machinery product parameters
| WZ30-25 Deluxe Edition Dimension technological parameters | |
| Total operating weight | 7500Kg |
| Length*width*height(mm) | 7600x2260x2900 |
| Wheel base | 2250mm |
| Axle track | 1700mm |
| Minimum ground clearance | 300mm |
| Loading bucket capacity | 1.2m³ |
| Digging up capacity | 38KN |
| Loading lift capacity | 2500Kg |
| Bucket discharge height | 2742mm |
| Bucket discharge distance | 1062mm |
| Backhoe bucket capacity | 0.3m³ |
| Backhoe discharge height | 3878mm |
| Maximum digging depth | 4082mm |
| Bucket slewing angle | 180° |
| Bucket stick revolving radian | 180° |
| Maximum puling force | 39KN |
| Enging | |
| Model | YUNNEI YN38GBZ |
| Type | Inline,direct injection,four-stroke,liquid cooled |
| Cylinder –internal diameter*stroke | 4—102x125mm |
| Rated power | 76KW 2200R/MIN |
| Maximum torque | 600NM |
| Displacement | 4.33L |
| Steering system | |
| Type | Articulated hydraulic steering |
| Steering angle | 36° |
| Minimum turning radius | 3660mm |
| System pressure | 16Mpa |
| Transmission system | |
| Torque converter | YJ-280 |
| Type of gearbox | Fixed shaft power shift transmission |
| Gear | 2gears ahead,2gears reverse |
| Maximum speed | 25Km/h |
| Axles | |
| Main transmission type | Circular Arc Bevel gear, single stage |
| Wheel reduction type | Single stage planetary type |
| Tire | |
| Tire size | 16/17-20 |
| Front wheel pressure | 0.22Mpa |
| Rear wheel pressure | 0.20Mpa |
| Service braking | Air over hydraulic caliper disc brake parking |
| Emergency brake | Flexible shaft operated disc brake |
| Hydraulic system | |
| Flow | 120L/min |
| Four-wheel drive whole hydraulic system | Four-wheel drive |
| Standard equipped | Front shovel with bucket, rear dig with bucket, luxury with interior cab, warm air, fan, luxury adjustable rotating seat, adjustable dashboard, front shovel and rear dig are hydraulic pilot operation, cloud 76 engine, 16/70-20 tires, 280 gearbox, weighted large wheel side bridge, A-shaped legs. |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
