| Name: | WZ30-25 Backhoe Loader | Type: | Deluxe Edition |
|---|---|---|---|
| Total Operating Weight: | 7500Kg | Length*width*height(mm): | 7600x2260x2900 |
| Maximum Puling Force: | 39KN | Bucket Slewing Angle: | 180° |
| Maximum Digging Depth: | 4082mm | Classification: | Heavy Duty Construction Machinery |
| High Light: | 7500kg Backhoe Loader,Backhoe Loader 39KN,Articulated Hydraulic Steering Backhoe Loader |
||

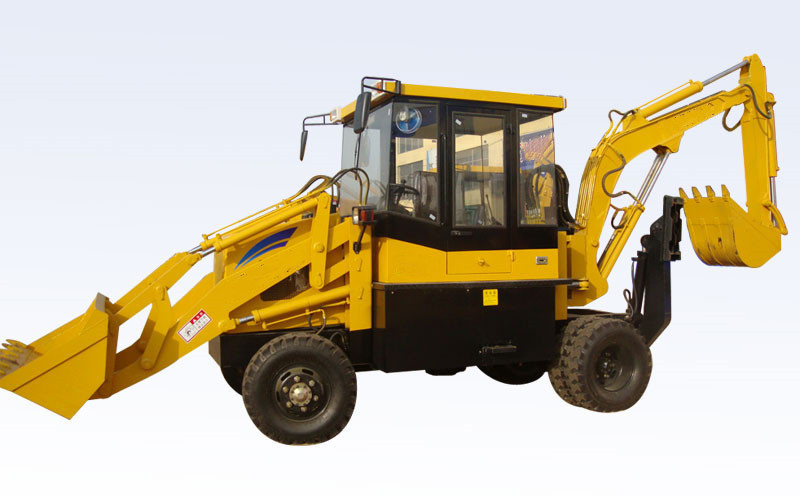

Heavy Duty Construction Machinery Total Operating Weight 7500kg Backhoe Loader
1. Heavy Duty Construction Machinery Backhoe Loader product parameters
| WZ30-25 Deluxe Edition Dimension technological parameters | |
| Total operating weight | 7500Kg |
| Length*width*height(mm) | 7600x2260x2900 |
| Wheel base | 2250mm |
| Axle track | 1700mm |
| Minimum ground clearance | 300mm |
| Loading bucket capacity | 1.2m³ |
| Digging up capacity | 38KN |
| Loading lift capacity | 2500Kg |
| Bucket discharge height | 2742mm |
| Bucket discharge distance | 1062mm |
| Backhoe bucket capacity | 0.3m³ |
| Backhoe discharge height | 3878mm |
| Maximum digging depth | 4082mm |
| Bucket slewing angle | 180° |
| Bucket stick revolving radian | 180° |
| Maximum puling force | 39KN |
| Enging | |
| Model | YUNNEI YN38GBZ |
| Type | Inline,direct injection,four-stroke,liquid cooled |
| Cylinder –internal diameter*stroke | 4—102x125mm |
| Rated power | 76KW 2200R/MIN |
| Maximum torque | 600NM |
| Displacement | 4.33L |
| Steering system | |
| Type | Articulated hydraulic steering |
| Steering angle | 36° |
| Minimum turning radius | 3660mm |
| System pressure | 16Mpa |
| Transmission system | |
| Torque converter | YJ-280 |
| Type of gearbox | Fixed shaft power shift transmission |
| Gear | 2gears ahead,2gears reverse |
| Maximum speed | 25Km/h |
| Axles | |
| Main transmission type | Circular Arc Bevel gear, single stage |
| Wheel reduction type | Single stage planetary type |
| Tire | |
| Tire size | 16/17-20 |
| Front wheel pressure | 0.22Mpa |
| Rear wheel pressure | 0.20Mpa |
| Service braking | Air over hydraulic caliper disc brake parking |
| Emergency brake | Flexible shaft operated disc brake |
| Hydraulic system | |
| Folw | 120L/min |
| Four-wheel drive whole hydraulic system | Four-wheel drive |
| Standard equipped | Front shovel with bucket, rear dig with bucket, luxury with interior cab, warm air, fan, luxury adjustable rotating seat, adjustable dashboard, front shovel and rear dig are hydraulic pilot operation, cloud 76 engine, 16/70-20 tires, 280 gearbox, weighted large wheel side bridge, A-shaped legs. |
2. Composition of Backhoe loader Heavy Duty Construction Machinery
A excavating loader consists of: Power train, loading end, excavating end. Each device is designed for a specific type of job. On a typical construction site, an excavator operator typically needs to use all three components to get the job done.
(1) Power train
Excavate loader cab
The core structure of the excavator loader is the power train. The excavator loader's power train is designed to run freely on all kinds of rough terrain. It has a powerful turbocharged diesel engine, large deep gear tires and a cab equipped with driving controls (steering wheel, brakes, etc.).
(2) Loader

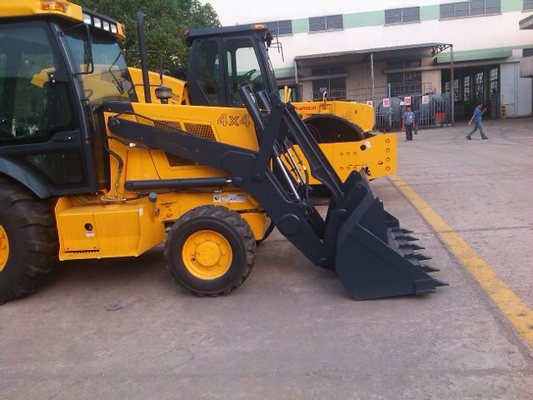

Excavate loader loading end
The loader is assembled at the front of the device and the excavator is assembled at the back. These two components provide completely different capabilities. Loaders can perform many different tasks. In many applications, you can think of it as a big, powerful dustpan or coffee spoon. It is not generally used for digging, but mainly for picking up and carrying large amounts of loose material. It can also be used as a plough to move earth, or as a knife to butter bread. The operator can drive the tractor while controlling the loader.
(3) Excavator
(4) Stabilizer foot
