Product Details:
Payment & Shipping Terms:
|
| Type: | Deluxe Edition | Gear: | 2gears Ahead,2gears Reverse |
|---|---|---|---|
| Torque Converter: | YJ-280 | Type Of Gearbox: | Fixed Shaft Power Shift Transmission |
| Rated Power: | 76KW 2200R/MIN | Usage: | Mining,construction Industry |
| Warranty: | 12 Months | Classification: | Heavy Duty Construction Machinery |
| High Light: | 25Km/h Backhoe Loader,1.2m3 Loading Backhoe Loader,Construction Industry Backhoe Loader |
||

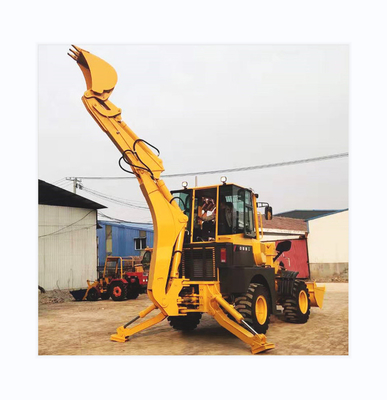

Heavy Duty Construction Machine With 1.2m³ Loading Bucket Capacity Backhoe Loader
1. WZ30-25 backhoe loader Heavy Duty Construction Machinery product introduction
The excavation loader is a single device composed of three pieces of construction equipment. Commonly known as "busy at both ends". During construction, the operator only needs to turn the chair to change the working end. The main job of the excavators is to dig ditches to lay out pipes and underground cables, lay foundations for buildings and set up drainage systems.
2. Composition of WZ30-25 excavator loader Heavy Duty Construction Machinery

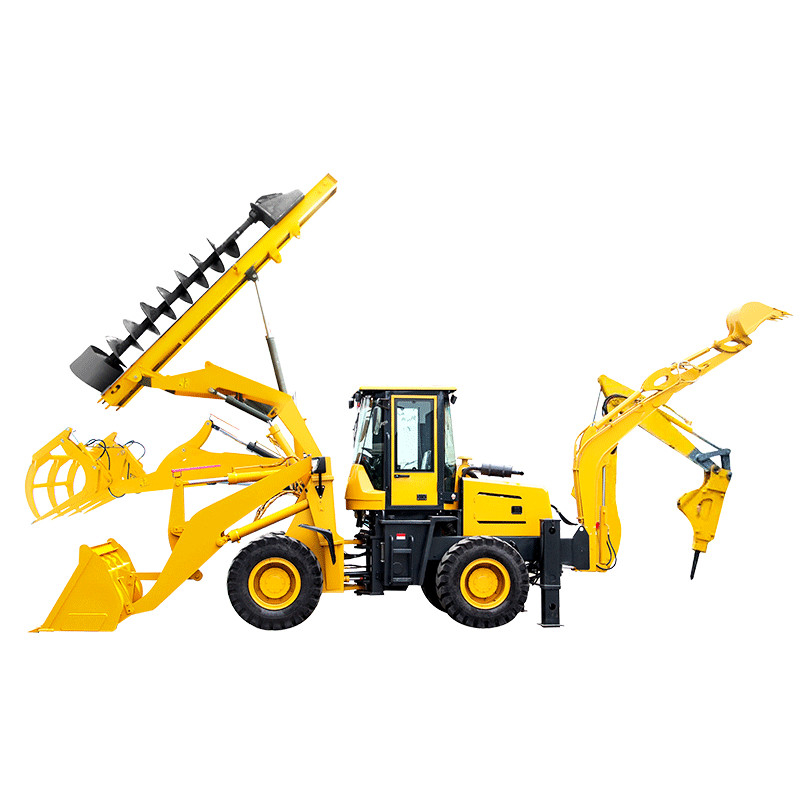

A excavating loader consists of: Power train, loading end, excavating end. Each device is designed for a specific type of job. On a typical construction site, an excavator operator typically needs to use all three components to get the job done.
(1) Power train
Excavate loader cab
(2) Loader
Excavate loader loading end
(3) Excavator
Excavating loader excavating end
Excavators are the main tools of excavating loaders. It can be used to dig up dense, hard material (often soil) or to lift heavy objects (such as sewer culverts). Excavators can pick up the material and pile it on the side of the hole. Simply put, the excavator is an extremely powerful giant arm or finger, which consists of three parts: the arm, the bucket rod, and the bucket.
(4) Stabilizer foot
Other add-ons typically seen on excavation loaders include two stabilizing legs behind the rear wheels. These legs are essential to the operation of the excavator. When the excavator performs the excavation operation, the feet can absorb the impact of the weight. Without stabilizing feet, the weight of heavy loads or the downward force of digging will damage the hub and tires, and the whole tractor will bounce continuously. The stabilizing foot can keep the tractor stable and minimize the impact force produced by the excavator. The stabilizer foot also holds the tractor in place and prevents it from sliding into a ditch or cave.
3. WZ30-25 Backhoe Loader Deluxe Edition Heavy Duty Construction Machinery product parameters
| WZ30-25 Deluxe Edition Dimension technological parameters | |
| Total operating weight | 7500Kg |
| Length*width*height(mm) | 7600x2260x2900 |
| Wheel base | 2250mm |
| Axle track | 1700mm |
| Minimum ground clearance | 300mm |
| Loading bucket capacity | 1.2m³ |
| Digging up capacity | 38KN |
| Loading lift capacity | 2500Kg |
| Bucket discharge height | 2742mm |
| Bucket discharge distance | 1062mm |
| Backhoe bucket capacity | 0.3m³ |
| Backhoe discharge height | 3878mm |
| Maximum digging depth | 4082mm |
| Bucket slewing angle | 180° |
| Bucket stick revolving radian | 180° |
| Maximum puling force | 39KN |
| Enging | |
| Model | YUNNEI YN38GBZ |
| Type | Inline,direct injection,four-stroke,liquid cooled |
| Cylinder –internal diameter*stroke | 4—102x125mm |
| Rated power | 76KW 2200R/MIN |
| Maximum torque | 600NM |
| Displacement | 4.33L |
| Steering system | |
| Type | Articulated hydraulic steering |
| Steering angle | 36° |
| Minimum turning radius | 3660mm |
| System pressure | 16Mpa |
| Transmission system | |
| Torque converter | YJ-280 |
| Type of gearbox | Fixed shaft power shift transmission |
| Gear | 2gears ahead,2gears reverse |
| Maximum speed | 25Km/h |
| Axles | |
| Main transmission type | Circular Arc Bevel gear, single stage |
| Wheel reduction type | Single stage planetary type |
| Tire | |
| Tire size | 16/17-20 |
| Front wheel pressure | 0.22Mpa |
| Rear wheel pressure | 0.20Mpa |
| Service braking | Air over hydraulic caliper disc brake parking |
| Emergency brake | Flexible shaft operated disc brake |
| Hydraulic system | |
| Folw | 120L/min |
| Four-wheel drive whole hydraulic system | Four-wheel drive |
| Standard equipped | Front shovel with bucket, rear dig with bucket, luxury with interior cab, warm air, fan, luxury adjustable rotating seat, adjustable dashboard, front shovel and rear dig are hydraulic pilot operation, cloud 76 engine, 16/70-20 tires, 280 gearbox, weighted large wheel side bridge, A-shaped legs. |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
