Product Details:
Payment & Shipping Terms:
|
| Product: | Belt Conveyor | Feature: | Large Throughput, Long Conveying Distance |
|---|---|---|---|
| Condition: | New | Temperature Range: | -20℃ To +40℃ |
| Brand: | ZTIC | Color: | Custom |
| Type: | Conveying Hoisting Machine | Warranty: | 12 Months |
| High Light: | Large Throughput Conveying Hoisting Machine,Custom Conveying Hoisting Machine,Long Conveying Distance Hoisting Machine |
||

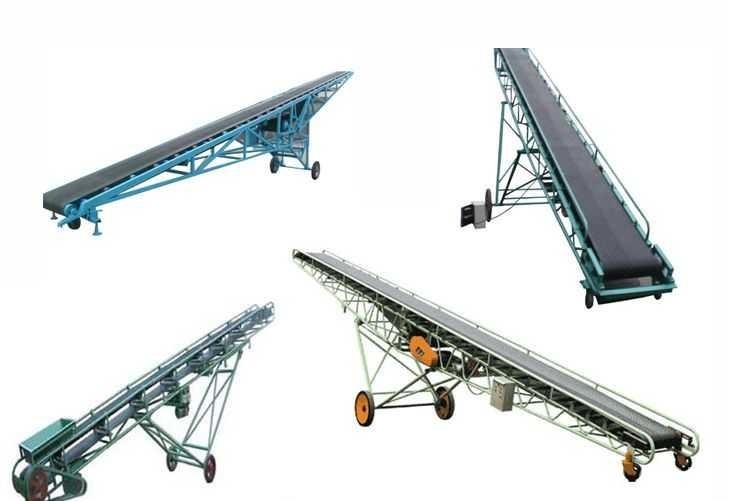

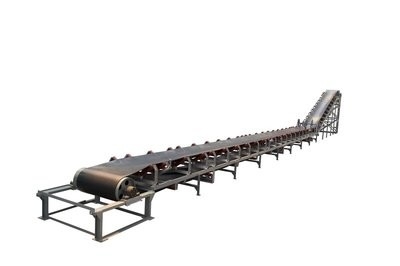

Conveying Hoisting Machine Belt Conveyor With Long Conveying Distance
1. Product introduction of belt conveyor conveying hoisting machine
The belt conveyor manufactured by Luoyang Mining Machinery Factory can transport various materials economically and effectively. It has the characteristics of large throughput, long conveying distance, smooth conveying, low noise, simple structure, convenient maintenance, less energy consumption, standardized components and so on. Widely used in mining, metallurgy, chemical, casting, building materials and other industries of transportation and production lines and hydropower station construction sites and other production departments.
Belt conveyor, also known as belt conveyor, is widely used in household appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food and other industries, objects assembly, testing, debugging, packaging and transportation.
Belt conveyor is also called belt conveyor. The conveyor belt moves according to the principle of friction transmission. It is suitable for conveying powdery, granular, small block low grinding cut materials and bag materials, such as coal, gravel, sand, cement, fertilizer, food and so on. The belt conveyor can be used in the ambient temperature range of -20℃ to +40℃, and the temperature of the material to be delivered is less than 60℃. Its length and the form of assembly can be determined according to the user's requirements, the transmission can be electric drum, also can be used with a drive frame drive device.
2. Product parameters of conveying hoisting machine
Main technical parameters of belt conveyor:
| Belt width (mm) | Belt length/power | Conveying speed(r/s) | Processing capacity(t/h) | ||
| Ⅰ(L/kW) | Ⅱ(L/kW) | Ⅲ(L/kW) | |||
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-550 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 440-850 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2 | 660-1200 |
Conveying Hoisting Machine Belt Conveyor With Long Conveying Distance
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
