Product Details:
Payment & Shipping Terms:
|
| Product Name: | Vibrating Feeder | Model: | ZSW Series Vibrating Feeder |
|---|---|---|---|
| Suitable: | Mining, Metallurgy, Coal, Building Materials | Condition: | New |
| Advantages: | Small Size, Light Weight,high Efficiency | Color: | Yellow,red,blue... |
| Type: | Conveying Hoisting Machine | Warranty: | 12 Months |
| High Light: | High Efficiency Vibrating Feeder,High Efficiency Conveying Hoisting Machine,ISO Vibrating Feeder |
||

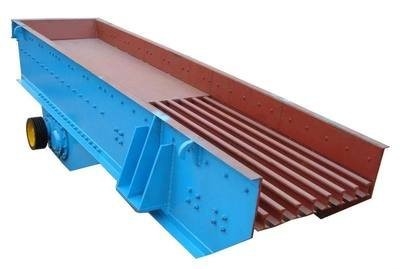

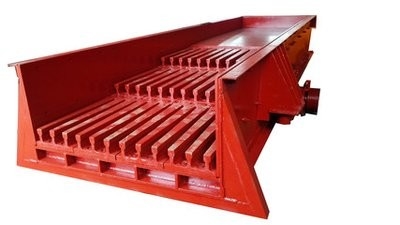

High efficiency Conveying Hoisting Machine and Vibrating Feeder
1. Vibration feeder Of Conveying Hoisting Machine product introduction:
Vibration feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other departments, to put the block, granular and powdery materials from uniform continuous or quantitative transport to the crushing device.
GZG series feeder for ordinary groove type, used for no special requirements of material feeding, GZGF series feeder for closed groove type feeder, used for dust and volatile material feeding. Inertial vibration feeder can be matched with reverse brake control box, the control box can make the feeder in a short time to stop quickly, so that the feeder through the resonance zone.
2. Vibrating Feeder Of Conveying Hoisting Machine Application scope:
GZT series vibratory feeder is designed and manufactured by digesting and absorbing foreign technology, using vibration motor as excitation source. This series of feeder is used for uniform feeding of large material before coarse crushing crusher, at the same time, due to the role of bar screen surface, and can remove the soil and other finely broken materials, to achieve pre-screening function, can improve the coarse crushing capacity. Especially suitable for water and electricity industry, construction stone, metal ore and other coarse crushing before feeding.
GZG series self synchronous inertial vibration feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries, to put the block, granular and powder materials from the storage bin or funnel evenly continuous or quantitative to the material device. Such as crushing, coal preparation, screening, transportation, packaging machinery and other feeding, ingredients, etc.
3. Characteristics and advantages of vibration feeder ,Conveying Hoisting Machine:
(1) Small size, light weight, simple and compact structure;
(2) Easy installation and maintenance, low operation cost;
(3) High efficiency, large feeding capacity;
(4) Low noise, conducive to improving the working environment;
(5) Small power consumption, high power factor;
(6) The equipment works in the state of far beyond resonance, so the amplitude is stable, the operation is reliable, and the adaptability to various materials is strong;
(7) With the motor governor without adjusting the eccentric block can easily stepless adjustment of the feed.
4. Vibration feeder product parameters ,Conveying Hoisting Machine
| Model | Feed size Max (mm) |
(t/h) |
Eccentric shaft speed(r/mi)n | Motor power(kw) | Dimensions (L×W×H)(mm) | Size of Funnel(mm) |
| ZSW-380×95 | 500 | 96-160 | 500-714 | 11 | 3882×2224×2121 | 3800×950 |
| ZSW-490×110 | 580 | 120-280 | 500-800 | 15 | 4957×2400×2150 | 4900×1100 |
| ZSW-590×110 | 600 | 200-350 | 500-800 | 22 | 6000×2500×2150 | 5900×1100 |
