Product Details:
Payment & Shipping Terms:
|
| ITEM: | Sinking Winch | Maximum Static Tension Of Wire Rope: | 50-400KN |
|---|---|---|---|
| Keyword: | Sinking Winch | Structure: | Conveyor System |
| Brand: | ZTIC | MOQ: | 1 SET |
| Type: | Conveying Hoisting Machine | Warranty: | 12 Months |
| High Light: | Single Barrel Sinking Winch,400KN Conveying Hoisting Machine,Sinking Winch Conveying Hoisting Machine |
||

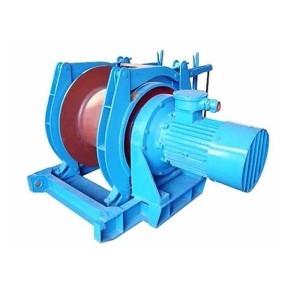

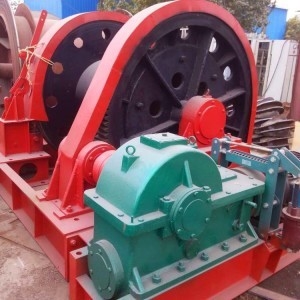

Conveying Hoisting Machine JZ-5/400 Single Barrel Sinking Winch
1. Conveying hoisting machine Sinking winch parameters:
| Model |
Maximum static tension of wire rope (KN) |
Rope capacity(M) |
Wire rope speed(m/min) | Wire rope diameter(mm) | Motor | Dimensions (L*W*H)(mm) |
Weight (kg) |
||
| Fast | slow | Power (kw) |
Voltage (V) |
||||||
| JZ-5/400 | 50 | 400 | 6 | 3 | 23 | 11 | 380 | 2375×1970×1340 | 3140 |
| JZ-10/600 | 100 | 600 | 6 | 3 | 31 | 22 | 380 | 3037×2570×1770 | 6250 |
| JZ-10/800 | 100 | 800 | 6 | 3 | 31 | 22 | 380 | 3342×2906×1825 | 6500 |
| JZ-16/800 | 160 | 800 | 6 | 3 | 40 | 30 | 380 | 3358×3200×2240 | 11480 |
| JZ-16/1000 | 160 | 1000 | 6 | 3 | 40 | 37 | 380 | 3508×3200×2240 | 11700 |
| JZ-25/1300 | 250 | 1300 | 6 | 3 | 52 | 45 | 380 | 3827×2623×2500 | 14678 |
| JZ-40/1300 | 400 | 1300 | 6 | 3 | 65 | 75 | 380 | 4596×4218×2975 | 25000 |
2. Product Series of sinking winch conveying hoisting machine :
(1) Single barrel JKZ sinking winch
(2) double barrel 2JKZ sinking winch
3. Folding winch lubrication of sinking winch conveying hoisting machine
(1) The reducer shall be lubricated with winter HL-20 gear oil or HG-24 saturated cylinder oil, and its oil surface shall ensure that the worm is fully immersed in oil. The reducer is used once a year to change the oil.
(2) The bearing of the spindle and the bearing of the output shaft end of the reducer should be replaced regularly or supplemented with No. 4 calcium-based grease, and the oil should be changed once every two years.
(3) Lubricating oil should be added to the open gear before each start.
(4) The remaining parts to be lubricated should be lubricated before each start, especially the thrust ring between the two gears on the output shaft of the reducer and the shaft sleeve of the movable gear should be lubricated.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
