Product Details:
Payment & Shipping Terms:
|
| Name: | Sinking Winch | Model: | JZ-10/600 |
|---|---|---|---|
| Rope Capacity(M): | 600 | Structure: | Conveyor System |
| Brand: | ZTIC | Motor Power: | 22 Kw |
| Motor Voltage: | 380v | Warranty: | 12 Months |
| High Light: | Lifting Well Sinking Winch,Large Load Variation Lifting Winch,22kw Lifting Winch |
||

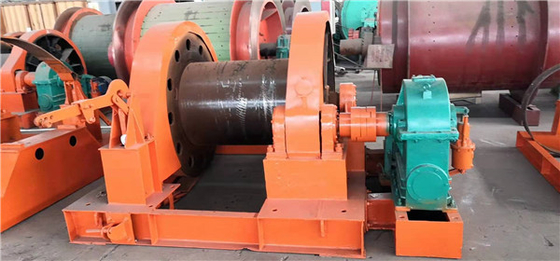

Conveying Hoisting Machine Lifting Well Sinking Winch With Large Load Variation
1. Conveying hoisting machine Sinking winch parameters:
| Model |
Maximum static tension of wire rope (KN) |
Rope capacity(M) |
Wire rope speed(m/min) | Wire rope diameter(mm) | Motor | Dimensions (L*W*H)(mm) |
Weight (kg) |
||
| Fast | slow | Power (kw) |
Voltage (V) |
||||||
| JZ-5/400 | 50 | 400 | 6 | 3 | 23 | 11 | 380 | 2375×1970×1340 | 3140 |
| JZ-10/600 | 100 | 600 | 6 | 3 | 31 | 22 | 380 | 3037×2570×1770 | 6250 |
| JZ-10/800 | 100 | 800 | 6 | 3 | 31 | 22 | 380 | 3342×2906×1825 | 6500 |
| JZ-16/800 | 160 | 800 | 6 | 3 | 40 | 30 | 380 | 3358×3200×2240 | 11480 |
| JZ-16/1000 | 160 | 1000 | 6 | 3 | 40 | 37 | 380 | 3508×3200×2240 | 11700 |
| JZ-25/1300 | 250 | 1300 | 6 | 3 | 52 | 45 | 380 | 3827×2623×2500 | 14678 |
| JZ-40/1300 | 400 | 1300 | 6 | 3 | 65 | 75 | 380 | 4596×4218×2975 | 25000 |

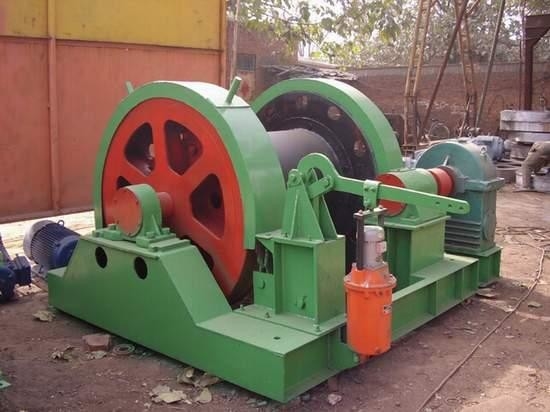

2. Structure overview of sinking winch conveying hoisting machine
The structure of this series winch is winding type, which is mainly composed of spindle device, reducer, elastic coupling with brake wheel, working brake, safety brake, frame, motor and other parts.
(1) Spindle device
Spindle device includes: spindle, gear, drum, brake wheel, bearing seat and bearing, etc. The drum is connected with the gear and the brake wheel by the copper sleeve and bolt, and the gear is connected with the main shaft by the key, so the main shaft only rotates with the drum and does not transfer torque. The exit direction of the wire rope is up.
(2) reducer
Reducer is the use of spherical worm gear pair deceleration, plus a change gear. Change the fast and slow position of the gear change handle, which can change the fast and slow two speeds. Double-barrel 10-ton winch has a set of differential system, the differential handle is placed in the straight-through position, the speed of the two gears of the output shaft of the reducer is identical; If the differential handle is placed in the differential position, the two gears can produce relative rotation, that is, differential action.
(3) Working brake
Working brake using tile type brake, start the motor, electro-hydraulic actuator to loosen the brake, stop the motor is spring force brake.
(4) Safety brake
Full brake for tile floating type, by the weight of the hammer down for braking, electrohydraulic actuator loose brake.
3. Conveying hoisting machine Sinking winch usage:
JZ series drilling winch is mainly used in coal mine, metal mine and non-metal mine shaft excavation shaft suspension, water pump, water pipe, grouting pipe, air duct and other driving equipment and tensioning stability rope. The winch is mainly used to replace the tail rope connected between the two cages of the hoist; And to change the best flat rope, can also be used as a shaft winch, its performance is the same as the shaft.
4. Product Series of sinking winch conveying hoisting machine :
(1) Single barrel JKZ sinking winch
(2) double barrel 2JKZ sinking winch
