Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Three Cylinder Dryer |
|---|---|---|---|
| Application: | River Sand Drying, Quartz Sand Drying, Yellow Sand, Dry Mixed Mortar Drying, Slag Drying, Fly Ash, Iron Powder, Clay, Coal, And Other Industries. | Layer Number: | 2-8 |
| Length: | 4-8 M | Capacity: | Max 90 T/h |
| Drive Motor Power: | 3-18.5*4 Kw | Warranty: | 12 Months |
| Material Staying Time: | 12-30 | Classification: | Metallurgy Machine |
| High Light: | High Thermal Efficiency Three Cylinder Dryer,High Thermal Efficiency I Industrial Dryer Machine,Three Cylinder Dryer 90t/H |
||

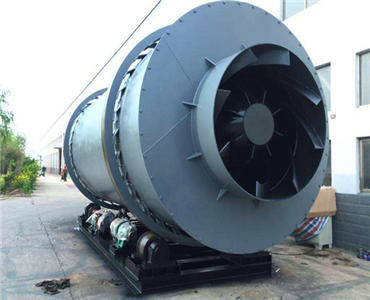

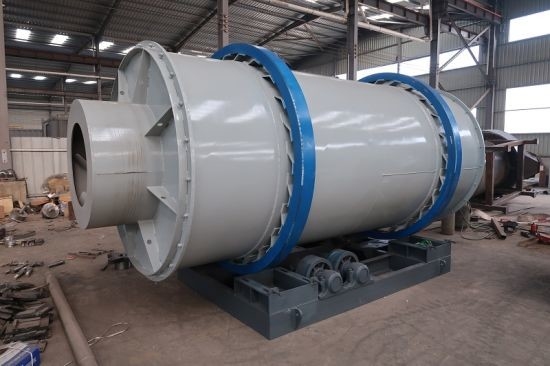

Metallurgy Machine High Thermal Efficiency Three Cylinder Dryer
1. Three cylinder dryer Introduction for Metallurgy Machine
The three-cylinder dryer has improved the internal structure of the original single-cylinder dryer, increased the pre-drying of wet materials before the machine and extended the drying time of wet materials in the machine, coupled with sealing, heat preservation and reasonable supporting measures, so that the production capacity of the dryer compared with the original single-cylinder dryer, Increase by 48-80%, unit volume evaporation intensity can reach 120-180kg/m3, standard coal consumption is only 6-8kp/t. Its advanced technology, reasonable operating parameters, simple and feasible operation.
Three cylinder dryer machine is mainly used in: river sand drying, quartz sand drying, yellow sand, dry mixed mortar drying, slag drying, fly ash, iron powder, clay, coal, and other industries.
2. Three cylinder dryer parameter list for Metallurgy Machine
| Model and Spec | 4.2*8.5 | 3.6*8 | 3.2*7 | 3.0*7 | 2.6*7 | 2.5*6.5 | 2.1*5.5 | 1.8*5 | 1.6*4 |
| Middle layer diameter | 3.2 | 2.8 | 2.3 | 2.2 | 2.0 | 1.8 | 1.6 | 1.3 | 1.2*36 |
| Inner layer diameter | 2.2 | 2 | 1.6 | 1.5 | 1.3 | 1.1 | 1.1 | 0.9 | 0.85*3.2 |
| Volume | 118 | 81.43 | 56.26 | 49.48 | 40 | 31.9 | 19 | 12.7 | 8 |
| Rotate speed (rpm) | 2-6 | 2-6.5 | 2-6.5 | 2-6.5 | 2-8 | 2-8 | 2-8 | 2-10 | 2-10 |
| Material staying time | 12~30 | ||||||||
| Initial water content | 15-25 | ||||||||
| Processed water content | ＜1% | ||||||||
| Airflow temperature | 750℃~900℃ | ||||||||
| Reducer series | XWD8-23 | XWD8-23 | XWD6-23 | XWD6-23 | XWD6-23 | XWD6-23 | XWD4-23 | XWD4-23 | XWD4-23 |
| Speed ratio | 35:1 | 29:1 | |||||||
| Capacity (sand)tph | 70-90 | 65-70 | 45-50 | 38~43 | 32-36 | 28-30 | 15-25 | 12 | 7 |
| Capacity (slag)tph | 65-80 | 45-60 | 35-40 | 30~35 | 25-30 | 20-25 | 15-20 | 10-15 | 5-10 |
| Capacity (coal ash)tph | 15-18 | 10-15 | 8-10 | 5~8 | 4-6 | 3-5 | 2-3 | 1-2 | 0.5-1 |
| Introduced draft fan | 37KW | 22KW | 18.5KW | 18.5kw | 15KW | 11KW | 7.5KW | 5.5KW | 3KW |
| Motor power(kw) | 18.5*4 | 11*4 | 7.5*4 | 7.5*4 | 5.5*4 | 7.5*2 | 5.5*2 | 4*2 | 3*2 |
| Equipment weight (T) | 72 | 52 | 38 | 33 | 30 | 27 | 22 | 19 | 16 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
