Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | Three Cylinder Dryer |
|---|---|---|---|
| Feature: | Discharge Temperature Is Lower Than 60 Degrees | Initial Water Content: | 15-25 |
| Processed Water Content: | ＜1% | Airflow Temperature: | 750℃~900℃ |
| Material Staying Time: | 12-30 | Warranty: | 12 Months |
| Classification: | Metallurgy Machine | ||
| High Light: | Low Discharge Temperature Three Cylinder Dryer,Metallurgy Machine Three Cylinder Dryer,Low Discharge Temperature Metallurgy Machine |
||

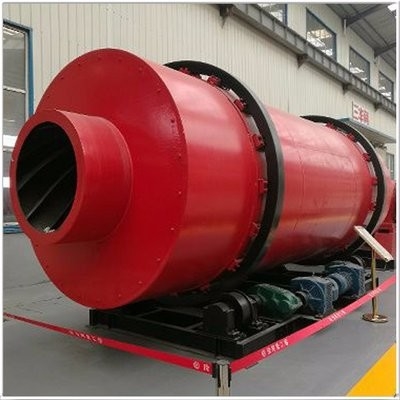

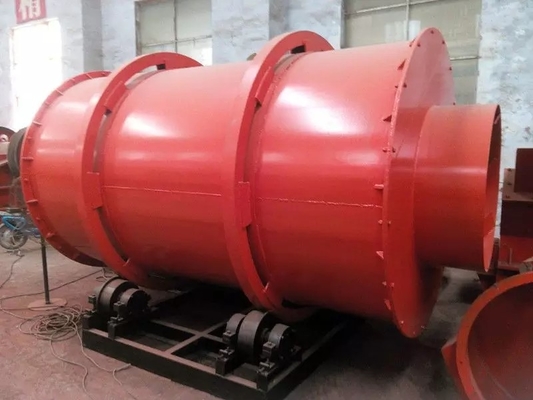

Metallurgy Machine Three Cylinder Dryer With Low Discharge Temperature
1. Three cylinder dryer working principle for Metallurgy Machine
Material from the feeding device into the inner layer of the rotary drum, to achieve downstream drying, material under the inner layer of the copy plate is constantly copied up, scattered drought spiral travel type to achieve heat exchange, material moved to the other end of the inner layer into the middle layer, counter-current drying, material in the middle layer is constantly repeated into, The material in the middle layer not only fully absorbs the heat of the inner cylinder, but also absorbs the heat of the middle layer cylinder. At the same time, the drying time is extended. The material here reaches the best drying state. When the material reaches the other end of the middle layer and falls into the outer layer, the material moves in a rectangular multi-loop mode in the outer roller. The material that achieves the drying effect moves quickly out of the roller under the action of hot air, while the wet material that does not achieve the drying effect cannot move quickly due to its weight. The material is fully dried in the rectangular sheet plate, thus completing the purpose of drying.
2. Three cylinder dryer parameter list for Metallurgy Machine
| Model and Spec | 4.2*8.5 | 3.6*8 | 3.2*7 | 3.0*7 | 2.6*7 | 2.5*6.5 | 2.1*5.5 | 1.8*5 | 1.6*4 |
| Middle layer diameter | 3.2 | 2.8 | 2.3 | 2.2 | 2.0 | 1.8 | 1.6 | 1.3 | 1.2*36 |
| Inner layer diameter | 2.2 | 2 | 1.6 | 1.5 | 1.3 | 1.1 | 1.1 | 0.9 | 0.85*3.2 |
| Volume | 118 | 81.43 | 56.26 | 49.48 | 40 | 31.9 | 19 | 12.7 | 8 |
| Rotate speed (rpm) | 2-6 | 2-6.5 | 2-6.5 | 2-6.5 | 2-8 | 2-8 | 2-8 | 2-10 | 2-10 |
| Material staying time | 12~30 | ||||||||
| Initial water content | 15-25 | ||||||||
| Processed water content | ＜1% | ||||||||
| Airflow temperature | 750℃~900℃ | ||||||||
| Reducer series | XWD8-23 | XWD8-23 | XWD6-23 | XWD6-23 | XWD6-23 | XWD6-23 | XWD4-23 | XWD4-23 | XWD4-23 |
| Speed ratio | 35:1 | 29:1 | |||||||
| Capacity (sand)tph | 70-90 | 65-70 | 45-50 | 38~43 | 32-36 | 28-30 | 15-25 | 12 | 7 |
| Capacity (slag)tph | 65-80 | 45-60 | 35-40 | 30~35 | 25-30 | 20-25 | 15-20 | 10-15 | 5-10 |
| Capacity (coal ash)tph | 15-18 | 10-15 | 8-10 | 5~8 | 4-6 | 3-5 | 2-3 | 1-2 | 0.5-1 |
| Introduced draft fan | 37KW | 22KW | 18.5KW | 18.5kw | 15KW | 11KW | 7.5KW | 5.5KW | 3KW |
| Motor power(kw) | 18.5*4 | 11*4 | 7.5*4 | 7.5*4 | 5.5*4 | 7.5*2 | 5.5*2 | 4*2 | 3*2 |
| Equipment weight (T) | 72 | 52 | 38 | 33 | 30 | 27 | 22 | 19 | 16 |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
