Product Details:
Payment & Shipping Terms:
|
| Name: | Clay Brick Making Machine | Model: | 220（With HP15 Diesel Engine） |
|---|---|---|---|
| Dimensions: | 3320*940*920mm | Power: | 11kw Or 15hp |
| Spindle Speed: | 45 RPM | Output: | 800-1200 Pieces Per Hour |
| Weight: | 670kg | Type: | Machine Metallurgy Machine |
| High Light: | 45RPM Clay Brick Making Machine,Metallurgy Clay Brick Making Machine,HP15 Diesel Engine Clay Brick Machine |
||
Metallurgy Machine Clay Brick Making Machine With HP15 Diesel Engine
1. Product introduction of clay brick machine, Metallurgy Machine
Clay brick machine is suitable for the production of various specifications of hollow brick from shale, coal gangue, clay and other raw materials. The machine adopts upper and lower structure, which can be installed in a word or T according to the terrain. The upper and lower drives are made of ZQ GB reducer and axial pneumatic clutch. The body is welded with steel plate. The surface of the reamer adopts wear-resistant material spray welding process to prolong the service life. Strong and durable, easy to operate.
The clay brick machine is suitable for hollow brick production of low plastic raw materials such as shale, coal gangue, high content of fly ash and barren soil. This machine uses a motor, through the axial pneumatic clutch through the reducer shunt drive upper stirring and lower extrusion part synchronously. Compact structure, energy saving effect is obvious. The whole machine is of steel structure, and the reducer is all hard face gear. Reamer using wear-resistant material spray welding process, easy maintenance, strong and durable.
2. Working principle of clay brick machine, Metallurgy Machine
The clay brick machine adopts the principle of single machine extrusion, single shaft, single mud cylinder, single spiral coaxial sealing mechanism. The body is all welded by steel plate. Reasonable structure design, high extrusion pressure. Suitable for shale, high content of fly ash, coal gangue, clay and other raw materials production of various specifications hollow brick. This machine has strong practicability, small investment and quick effect, and is the ideal equipment for technical transformation of brick works.
3. Model number parameter of clay brick machine , Metallurgy Machine
| Clay brick machine |
| Model:220(With HP15 diesel engine) |
| Dimensions: 3320*940*920mm |
| Power: 11kw or 15hp |
| Spindle speed: 45 RPM |
|
Output: 800-1200 pieces per hour (GB solid brick 240*115*53mm) Cut 12 pieces at a time |
| Weight :670kg |

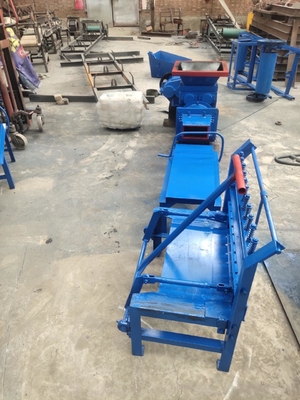

Metallurgy Machine Clay Brick Making Machine With HP15 Diesel Engine

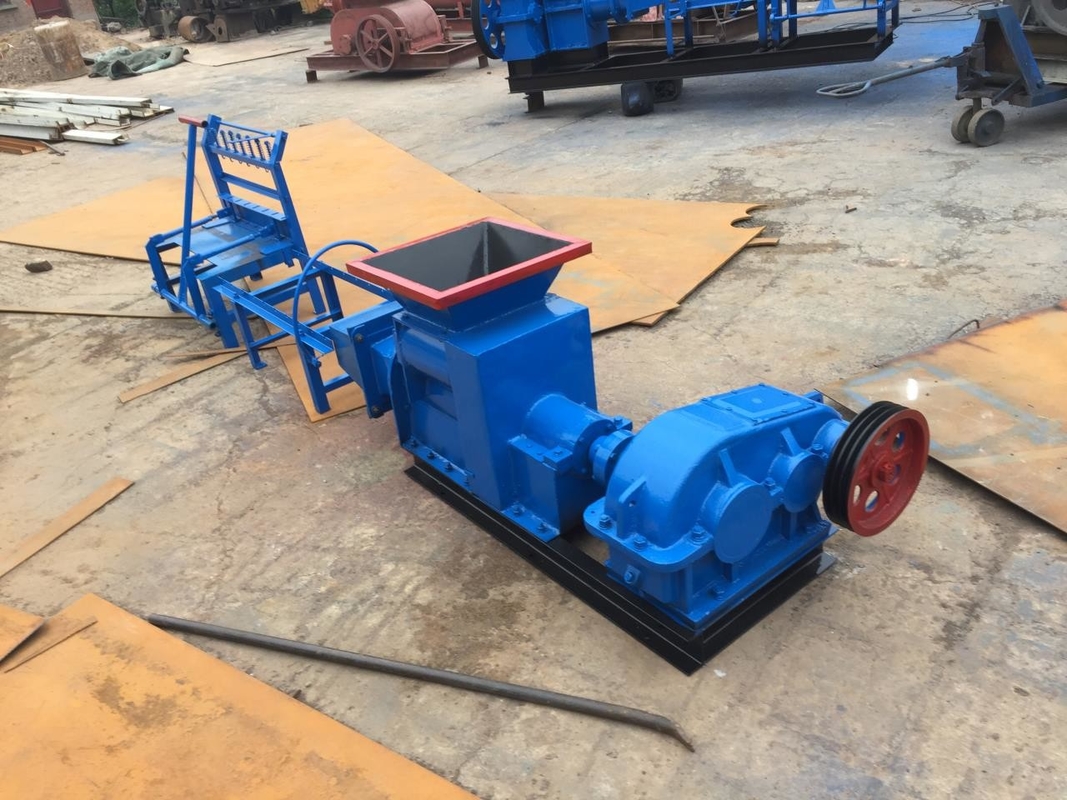

Metallurgy Machine Clay Brick Making Machine With HP15 Diesel Engine
Metallurgy Machine Clay Brick Making Machine With HP15 Diesel Engine
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
