| Condition: | New | Name: | Guoliu Haoman 8 M³ Concrete Mixing Transporter , Rear Eight Wheels |
|---|---|---|---|
| Model: | XR8000-HM-220 | Capacity: | 8-10m³ |
| Engine Type: | WP4.6NQ220E61A | Engine: | WD615 |
| Type Of Oil: | Diesel Oil | Engine Power: | 220hp |
| WARRANTY: | 12 Months | Port: | Qingdao/Tianjin/Shanghai |
| High Light: | Heavy Duty Construction Machinery 8m3,8m3 Concrete Transporter,220hp Engine Concrete Transporter |
||
Heavy Duty Construction Machinery 8m³ Concrete Mixing Transporter
Heavy Duty Construction Machinery 8m³ Concrete Mixing Transporter, Rear Eight Wheels
1. Introduction of concrete mixing transporter
Concrete mixing truck or mixing truck, is used to transport the construction of ready-mixed concrete truck; Because of its appearance, it is also often called the field snail car. The truck is equipped with a cylindrical mixing drum to carry the mixed concrete. The drum is kept rotating during transportation to ensure that the concrete is not set. After transporting the concrete, the inside of the mixing drum is usually rinsed with water to prevent hardened concrete from taking up space.
2. Composition of concrete mixing transporter
The concrete mixing transporter is composed of an automobile chassis and a special device for concrete mixing transport. The second type of general chassis which is provided by manufacturers of mixed concrete transporters in China is mainly adopted. Its special mechanism mainly includes force extractor, stirring cylinder before and after support, reducer, hydraulic system, stirring cylinder, control mechanism, cleaning system, etc. The working principle is that the power of the vehicle chassis is taken out through the force taking device, and the variable pump of the hydraulic system is driven, and the mechanical energy is converted into hydraulic energy and transferred to the quantitative motor. The motor drives the reducer, and the reducer drives the mixing device to stir the concrete.
3.Technical parameters Guoliu Haoman 8 m³ concrete mixing transporter, rear eight wheels
| Name |
Guoliu Haoman 8 m³ concrete mixing transporter , rear eight wheels |
Model | XR8000-HM-220 |
| Brand | Truk Haoman |
Square quantity (capacity) |
8-10m³ |
| Engine type | WP4.6NQ220E61A | Type of oil | Diesel oil |
| Engine power | 220hp | bridge | Row half |
| Emission standard | Guo Liu | Steering form | Steering wheel |
| Driving form | 6X4 | Directional assist | Hydraulic power assist |
| Number of axes | 3 | Clutch power | Pneumatic booster |
| Wheelbase | 3400+1350 | Number of leaf springs | 9/10 |
|
Service brake |
Air brake | Fuel tank volume | 200L |
| Parking brake | Air brake | Accumulator | 2-12V-120AH |
| Gearbox |
Fashite 10 speed Transmission (10JS90A-B) |
Tank and blade material | Q345B-4mm |
| Maximum speed | 80km/h | Head | Q345B-6mm |
| Rear axle specification | 153 with ABS | Hydraulic system | Closed hydraulic system |
| Tyre specification | 10.00R20 18PR | Reducer | Keyi,PMP,etc |
| Number of tires | 10 | Feed rate | ≥3m³/min |
| Climbing ability | 25° | Discharge rate | ≥1m³/min |
| Discharge height | 1600mm | Discharge residual rate | ≤0.5% |
|
Geometric volume of tank |
11.52m³ | Discharge range | 180° rotation discharge |
| Rated stirring volume | 8-10m³ | In-and-out operation | Post operation |
|
Quality of maintenance |
10315kg | Tank volume | 260L |
| Total mass | 24500kg | Hydraulic radiator |
18L Temperature-controlled automatic aluminum exchanger |
| Vehicle size | 8370*2420*3650(mm) | Rated hydraulic pressure | 20MPa |
| Optional configuration | In and out of the material operation, etc. | ||

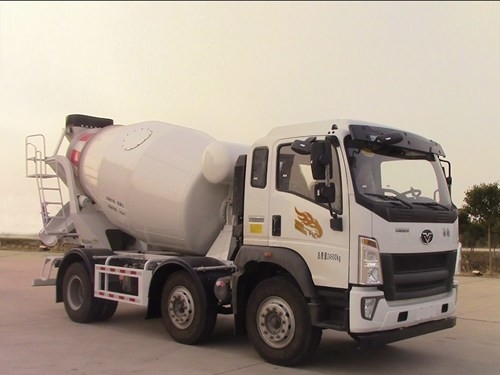

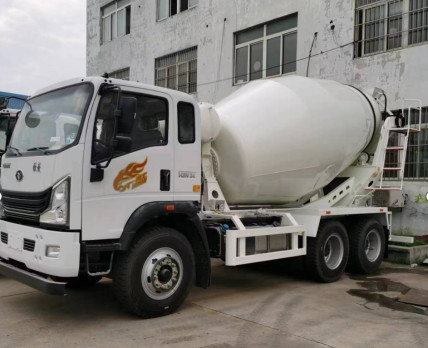

Heavy Duty Construction Machinery 8m³ Concrete Mixing Transporter, Rear Eight Wheels

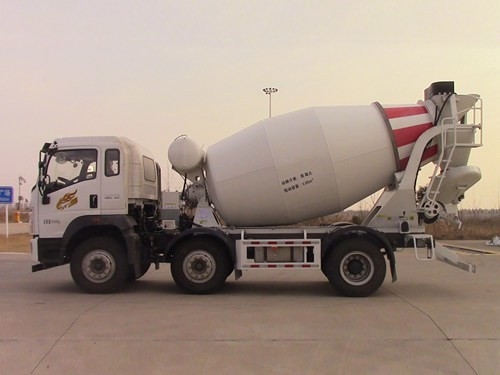

Heavy Duty Construction Machinery 8m³ Concrete Mixing Transporter, Rear Eight Wheels
