| Model Number: | 600 | Air-frame Material: | Q235 Steel |
|---|---|---|---|
| Overall Dimensions (mm): | 2600*1200*1600 | Appliacation: | Multi-stage Screening And Dry Material Operation |
| Speed (r/min): | 11rpm | Required Power (kw): | 15*2kw |
| Cutter Material: | 9crsi | Classification: | Metallurgy Machine |
| High Light: | model 600 heavy duty shredder,metallurgy heavy duty shredder,11rpm heavy duty shredding machine |
||

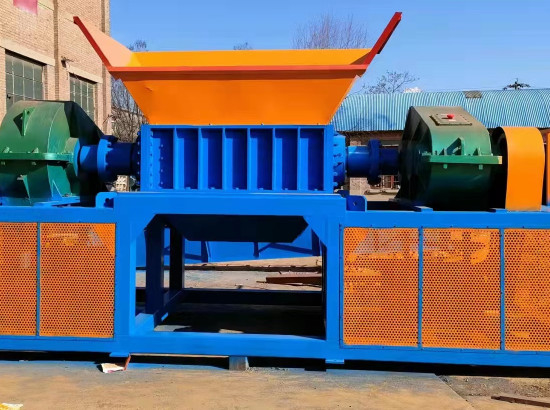

Metallurgy Machine Model 600 Shredding Machine For Metal And Plastic
1. Metallurgy Machine Shredder introduction
Shredder is a kind of machine used for coarse crushing, generally used for processing raw materials or scraps, recycling industry, to make its size smaller. Compared with other crushers, the tool shaft has low speed, low noise and low energy consumption.
2. Metallurgy Machine Shredder use
Shredder is a machine used for fine crushing, generally used for processing raw materials or scraps, to make its size smaller. A typical example is the shredding of plastic or rubber scraps as raw materials to melt and then granulated, used to recreate plastic bottles, tires or trash cans, etc. Shredder used in plastic recycling industry, often used for waste large diameter PE plastic pipe, bale packaging plastic film, large piles of plastic sheets and machine head material crushing.
3. The application of shredder of Metallurgy Machine:
(1) Shred unqualified products into smaller pieces for recycling.
(2) Reduce the volume of raw materials for mixing with other materials.
(3) Shred organic material to make biofuels.
(4) Shred some textile materials in order to facilitate the reuse of fibers, such as the crushing of carpets.
4. The type of shredder of Metallurgy Machine:
The commonly used structure of the shredder mainly has two axes (or four axes) shear type, single-axis roller cutting rough crushing tear type and so on.
1) Shear shredder

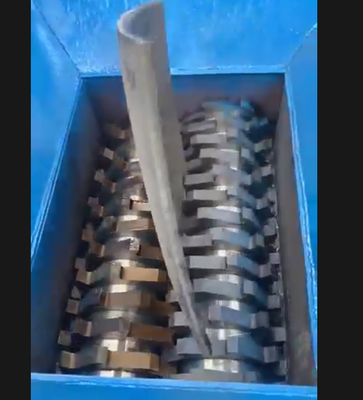

The most common is the shear crusher, which has two to four knife shafts and mainly relies on the principle of "cutting and cutting" to complete the crushing process. The pulverizer works by shredding objects like scissors.
2) Roller cutting mill
The machine is equipped with a number of blades on a rotating knife roll, and the fixed blade is formed to cut, to complete the effect of crushing materials.
3) Tear type coarse crusher
The principle of the shredder is to swing the hook to tear the garbage material. This type is mainly used for rough crushing.
5. A detailed list of attachments required for Model 600 shredder
| Subject form | Model number | 600 |
| Air-frame | It is easy to disassemble and assemble with split type and welded with Q235 steel plate | |
| Overall dimensions (mm) | 2600*1200*1600 (length, width and height including hopper) | |
| Speed (r/min) | 11 RPM | |
| Required power (kw) | 15kw*2 sets of national standard copper wire (Kaifeng Wanli) | |
| Reduction type number | ZQ400*2 (Zibo Huiyi) | |
| Reducer speed ratio | 48.57 | |
| Rack | Square steel structure | |
| Cutter head | Quantity (pieces) | 75 |
| Cutter material | 9crsi | |
| Cutter diameter | 220mm | |
| Cutter thickness | 0.8mm | |
| Knife cut | Small hook Angle external triangular multi-dense tooth shape, the inner hole is hexagonal | |
| Supporting manufacturer | Ma On Shan | |
| Shaft | Form | Octagonal axis |
| Shaft diameter (mm) | 120 | |
| Shaft length (mm) | 1000 | |
| Spacer sleeve | Material | 9crsi |
| Quantity (PCS) | 75 | |
| Bearing | - | Harbin (aligning roller bearing) |
| connect | Host connection mode | Chain coupling |
| Control cabinet | Start protection | Automatic reversal when current is overloaded |
Remarks:
1. According to the data provided by the user and relevant requirements, according to the site design layout, to optimize the process and minimize the crushing cost.
2. Technical guidance installation, free technical training for user operators.
3. Provide basic drawings, installation instructions, and precautions for operation and maintenance.
4. The warranty period is one year, and the supplier of the equipment has quality problems during the warranty period for free maintenance of the user. If there is a problem outside the warranty period, the supplier will pay the cost to the user for maintenance.
Parts quality assurance:
1. Universal parts and standard parts shall be implemented according to national standards.
2. Non-standard parts shall be executed in accordance with the contract.
