Product Details:
Payment & Shipping Terms:
|
| Name: | Shredding Machine | Model: | 600 Type |
|---|---|---|---|
| Color: | Customized | Overall Dimensions (mm): | 2600*1200*1600 |
| Speed (r/min): | 11rpm | Required Power (kw): | 15*2kw |
| Type: | Shredder | Classification: | Metallurgy Machine |
| High Light: | 600 type coconut waste shredder machine,pet bottles waste plastic shredder,600 type waste plastic shredder |
||

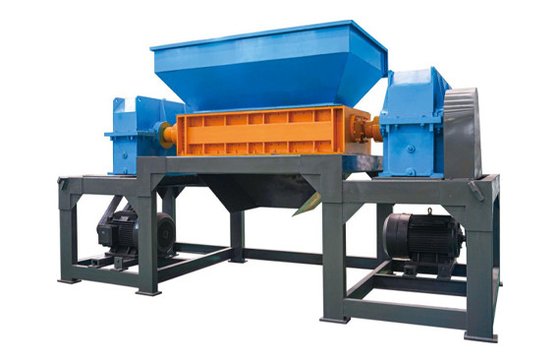

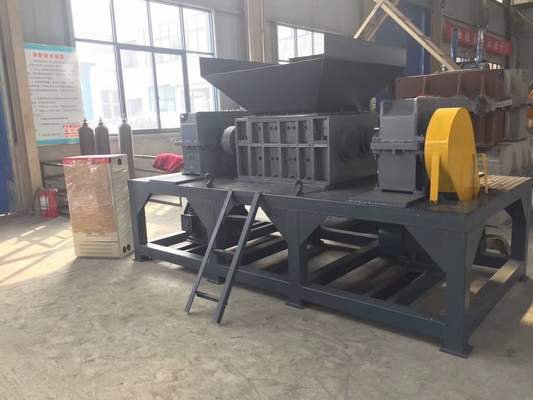

Waste Coconut Husk Car Tire Pet Bottles Shredding Machine Of Metallurgy Machine
1. Metallurgy Machine Shredder introduction
Shredder is a kind of machine used for coarse crushing, generally used for processing raw materials or scraps, recycling industry, to make its size smaller. Compared with other crushers, the tool shaft has low speed, low noise and low energy consumption.
2. The type of shredder of Metallurgy Machine:
The commonly used structure of the shredder mainly has two axes (or four axes) shear type, single-axis roller cutting rough crushing tear type and so on.
1) Shear shredder
The most common is the shear crusher, which has two to four knife shafts and mainly relies on the principle of "cutting and cutting" to complete the crushing process. The pulverizer works by shredding objects like scissors.
2) Roller cutting mill
The machine is equipped with a number of blades on a rotating knife roll, and the fixed blade is formed to cut, to complete the effect of crushing materials.
3) Tear type coarse crusher
The principle of the shredder is to swing the hook to tear the garbage material. This type is mainly used for rough crushing
3. A detailed list of attachments required for Model 600 shredder
| Subject form | Model number | 600 |
| Air-frame | It is easy to disassemble and assemble with split type and welded with Q235 steel plate | |
| Overall dimensions (mm) | 2600*1200*1600 (length, width and height including hopper) | |
| Speed (r/min) | 11 RPM | |
| Required power (kw) | 15kw*2 sets of national standard copper wire (Kaifeng Wanli) | |
| Reduction type number | ZQ400*2 (Zibo Huiyi) | |
| Reducer speed ratio | 48.57 | |
| Rack | Square steel structure | |
| Cutter head | Quantity (pieces) | 75 |
| Cutter material | 9crsi | |
| Cutter diameter | 220mm | |
| Cutter thickness | 0.8mm | |
| Knife cut | Small hook Angle external triangular multi-dense tooth shape, the inner hole is hexagonal | |
| Supporting manufacturer | Ma On Shan | |
| Shaft | Form | Octagonal axis |
| Shaft diameter (mm) | 120 | |
| Shaft length (mm) | 1000 | |
| Spacer sleeve | Material | 9crsi |
| Quantity (PCS) | 75 | |
| Bearing | - | Harbin (aligning roller bearing) |
| connect | Host connection mode | Chain coupling |
| Control cabinet | Start protection | Automatic reversal when current is overloaded |
Waste Coconut Husk Car Tire Pet Bottles Shredding Machine Of Metallurgy Machine
