Product Details:
Payment & Shipping Terms:
|
| Type: | 1000 Heavy Duty Shredder | Air-frame Material: | Q235 Steel |
|---|---|---|---|
| Overall Dimensions: | 4000*1600*1800 Mm | Required Power (kw): | 37kw*2 |
| Host Connection Mode: | Chain Coupling | Shaft Diameter: | 200 (mm) |
| Shaft Length: | 1400 (mm) | Classification: | Metallurgy Machine |
| High Light: | plastics industry waste shredder metallurgy machine,heavy duty shredding metallurgy machine,metallurgy waste shredder machine |
||

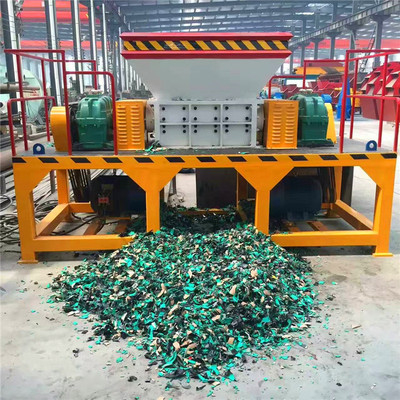

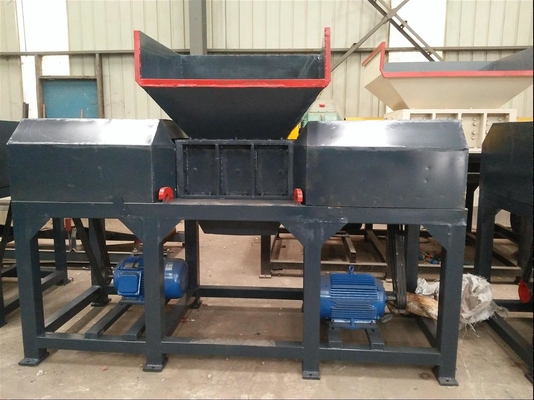

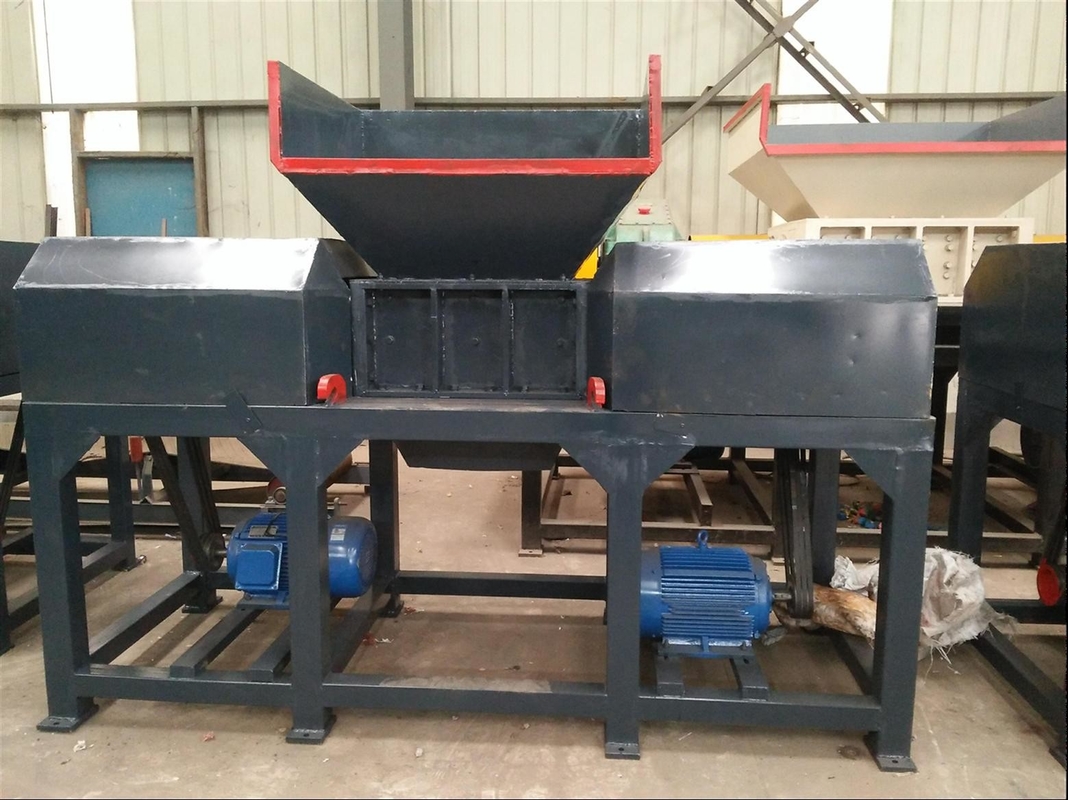

Professional Manufacturer Plastics Industry Waste Shredder Metallurgy Machine
1. Metallurgy Machine Shredder introduction
Shredder is a kind of machine used for coarse crushing, generally used for processing raw materials or scraps, recycling industry, to make its size smaller. Compared with other crushers, the tool shaft has low speed, low noise and low energy consumption.
2. The type of shredder of Metallurgy Machine:
The commonly used structure of the shredder mainly has two axes (or four axes) shear type, single-axis roller cutting rough crushing tear type and so on.
1) Shear shredder
The most common is the shear crusher, which has two to four knife shafts and mainly relies on the principle of "cutting and cutting" to complete the crushing process. The pulverizer works by shredding objects like scissors.
2) Roller cutting mill
The machine is equipped with a number of blades on a rotating knife roll, and the fixed blade is formed to cut, to complete the effect of crushing materials.
3) Tear type coarse crusher
The principle of the shredder is to swing the hook to tear the garbage material. This type is mainly used for rough crushing.
3. A detailed list of attachments required for 1000 heavy duty shredder
| Subject form | Model number | 1000 heavy duty |
| Air-frame | It is easy to disassemble and assemble with split type and welded with Q235 steel plate | |
| Overall dimensions (mm) | 4000*1600*1800 (length, width and height including hopper) | |
| Speed (r/min) | 12 RPM | |
| Required power (kw) | 37kw*2 sets of national standard copper wire (Kaifeng Wanli) | |
| Reduction type number | ZQ750*2 (Zibo Huiyi) | |
| Reducer speed ratio | 48.57 | |
| Rack | Square steel structure | |
| Cutter head | Quantity (pieces) | 33 |
| Cutter material | 9crsi | |
| Cutter diameter | 360mm | |
| Cutter thickness | 30mm | |
| Knife cut | Small hook Angle triangular tooth shape, the inner hole for eight | |
| Supporting manufacturer | Ma On Shan | |
| Shaft | Form | Octagonal axis |
| Shaft diameter (mm) | 200 | |
| Shaft length (mm) | 1400 | |
| Spacer sleeve | Material | 55crsi |
| Quantity (PCS) | 33 | |
| Bearing | - | Harbin (aligning roller bearing) |
| Connect | Host connection mode | Chain coupling |
| Control cabinet | Start protection | Automatic reversal when current is overloaded |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
