Condition: | New | Product: | Electric Winch |
---|---|---|---|
Type: | Single Barrel JZ Sinking Winch | Lift Weight: | 1.5t |
Motor Power: | 7.5kw | Lift Speed: | 35-38m/min |
Classification: | Conveying Hoisting Machine | Warranty: | 12 Months |
High Light: | 1.5t conveying hoisting machine,3 axis conveying hoisting machine |
JK 1.5 Tons-3 Axis 7.5KW Electric Winch Conveying Hoisting Machine
1. Introduction to winch (Conveying Hoisting Machine)
A winch is a mechanical device used for lifting and suspending heavy objects. It usually consists of a motor, a drum, a rope or chain and some auxiliary equipment.
Windlass are widely used in various industries. They can be used to lift and suspend construction materials, cargo, machinery and equipment, stage sets and perform maintenance and rescue missions. The use of winches can improve work efficiency and reduce manual labor while ensuring safe and reliable lifting operations.
It should be noted that when using winches, safe operating procedures should be followed to ensure correct installation and maintenance of equipment to reduce the occurrence of accidents.
2. Working principle of winch (Conveying Hoisting Machine)
The working principle of a winch is to provide power through an electric motor to rotate the drum to tighten or loosen the rope or chain. Weights are suspended and lifted by hooks or clamps attached to ropes or chains. Windlass usually has adjustable speed and load capacity to suit different work needs.
3. Common winch types:
(1) Electric winch: Uses an electric motor as a power source to provide efficient lifting capacity and control.
(2) Manual winch: It requires manual operation to lift or lower heavy objects by manually rotating the drum. This type of winch is suitable for smaller loads and simple lifting tasks.
(3) The diesel version of the winch is a type of winch that uses a diesel engine as its power source. Compared with winches using electric motors, diesel winches are more suitable for use in places where there is no power supply or where mobile operation is required.
(4) Hydraulic winch: It uses a hydraulic system to provide power and has high lifting capacity and smooth operation. Hydraulic winches are commonly used for large projects and heavy lifting tasks.
(5) Wind winch: It uses wind power to provide power and is suitable for outdoor environments and places without power supply.
4. Parameters of electric winch with lifting weight of 1.5 tons
JK1.5 tons-3 axis 7.5KW fast 35-38 Electromagnetic brake | |
Lift weight | 1.5t |
Motor power | 7.5kw |
Lift speed | 35-38m/min |
Brake form | Electromagnetic brake |
Gear box | 3 axis |
Winch Weight | 250kg |
Rope capacity | 9.3mm/130m |
5. The electric winch is a winch that uses an electric motor as its power source. Compared with the diesel version, the electric winch has some differences in use and environment. The following is some relevant information about electric winches:
(1) Power source: The electric winch uses an electric motor as a power source, usually by connecting to the grid or using a battery to supply power. The electric motor drives the reel of the winch to rotate, thereby realizing the function of lifting and hanging heavy objects.
(2) Lifting capacity: the lifting capacity of the electric winch can vary according to different models and specifications. Common lifting capacities range from a few hundred kilograms to several tons. Selecting the proper lifting capacity depends on the desired application and job requirements.
(3) Lifting speed: The lifting speed of the electric winch is usually faster than that of the diesel version. It depends on the power output of the motor and drum design. Lifting speeds are usually specified in meters per minute or meters per second.
(4) Control mode: Electric winches can use different control modes. Common control methods include manual control and electric control. Manual controls require the operator to operate via a joystick or buttons, while electric controls can be operated remotely via a remote control or control panel.
(5) Safety: Electric winches usually have safety functions and protection devices, such as overload protection, emergency stop buttons and limit switches. These features help improve operational safety and protect equipment and the work environment.
(6) Adaptability: Electric winches are suitable for various application scenarios, including industry, construction, warehousing and stages, etc. They can adapt to different working environments and requirements, with high flexibility and versatility.
(7) Maintenance and maintenance: Compared with the diesel version of the winch, the maintenance and upkeep of the electric winch is relatively simple. Electric motors typically require no fuel or lubricants, reducing some maintenance work and costs.

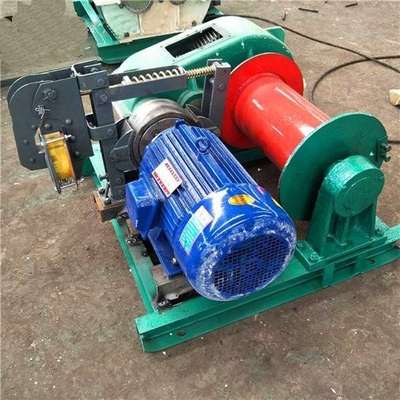

JK 1.5 Tons-3 Axis 7.5KW Electric Winch Conveying Hoisting Machine

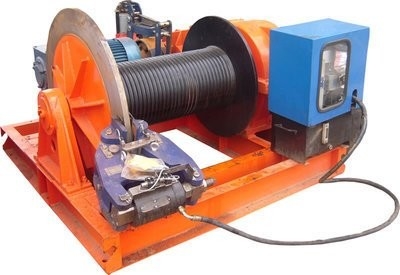

JK 1.5 Tons-3 Axis 7.5KW Electric Winch Conveying Hoisting Machine
