Product Details:
Payment & Shipping Terms:
|
| Name: | Pinion Gear/ Small Gear | Material: | 42CrMo |
|---|---|---|---|
| Diameter(mm): | Custom | Weight(kg): | According To Drawings |
| Usage: | Various Types Of Mills | Processing: | Forged Ring,Rolled Plate,Cast Steel |
| Port: | QingDao,ShangHai,TianJian | Warranty: | 12 Months |
| High Light: | oem pinion gear,rotary kiln pinion gear,oem cement mixer pinion gear |
||

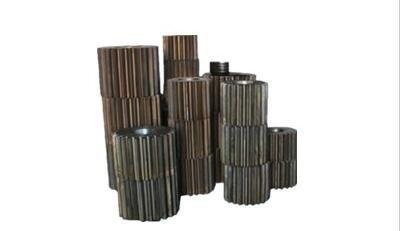

OEM Industry Machinery Parts Pinion Gears For Rotary Kiln /Ball Mill /Cement Mixer
1. Pinion design
Bored solid on shaft / integral self aligned spur, helical or double helical
Materialization forged alloyed steel through hardened, case hardened or quenched and tempered
Spur, helical or double helical carburized induction nitrided
2. Characteristics
• Gear cutting with hobs
• The gear quality is checked by profile tester
• Tooth flank modification
• Profile correction
• Lead correction (straight/barrel)
• Designs /ratios according to ISO-DIN-A.G.M.A.
• FEM/FEA simulation software

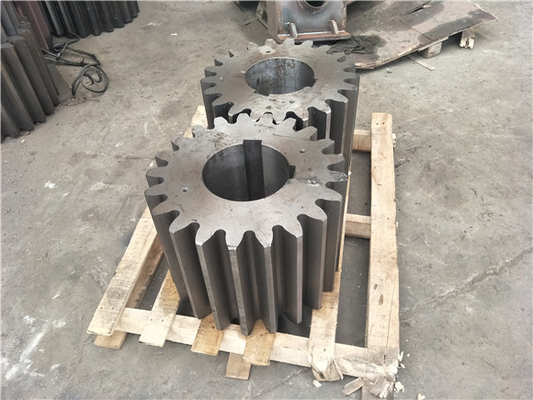

OEM Industry Machinery Parts Pinion Gears For Rotary Kiln /Ball Mill /Cement Mixer
3. Pinion gear material
42CRMO STEEL DATA
| C : 0.38-0.45% |
| Si: 0.17-0.37% |
| Mn: 0.50-0.80% |
| S : Allow residual content <0.035% |
| P : Allow residual content <0.035% |
| Cr: 0.90-1.20% |
| Ni: Allow residual content <0.030% |
| Cu: Allow residual content <0.030% |
| Mo: 0.15-0.25% |
MECHANICAL DATA
| Tensile Strength σb (MPa): >1080(110) |
| Yield point σs (MPa): >930(95) |
| Reduction of area ψ (%): >45 Akv (J) |
| Impact absorbing energy Akv(J): >63 |
| Impact toughness value αkv (J/cm2): >78(8) |
| Elongation σ5 (%): >12 |
| Hardness: <217HB |
OEM Industry Machinery Parts Pinion Gears For Rotary Kiln /Ball Mill /Cement Mixer
4. Standards/Certificates
• UNI EN ISO
• AWS
• ASTM
• ASME
• DIN
5. Applications
Our pinions are applied in the cement and minerals industries:
Ball - mills
ROD - mills
Semi Autogeneous Grind (SAG)
Rotary kilns/coolers/dryers
6. Advantages
One Source
Original Equipment Manufacture (OEM) Technical Drawings
Gearing technical expertise for kilns and grinding mills
State of the art manufacturing facilities and quality
Global sales and service support
High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion
OEM Machinery Part Pinion Gear For Rotary Kiln / Ball Mill / Cement Mixer
