| Product: | Pinion Gear/ Small Gear | Materials: | 42CrMo\45 Steel\ 35CrMo... |
|---|---|---|---|
| Diameter: | Customized | Weight(kg): | According To Drawings |
| Characteristic: | Gear Cutting With Hobs | Processing: | Forged,Cast |
| Packing: | Normal Packing | Warranty: | 12 Months |
| High Light: | 42crmo steel pinion gear,ball mill steel pinion gear,cast and forged mill pinion gears |
||

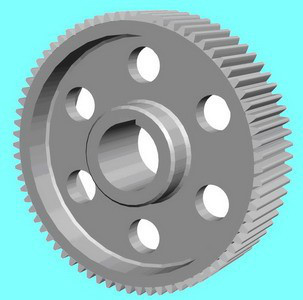

42CrMo Steel Cast And Forged Pinion Gear For Ball Mill Spare Parts
1. Pinion design
Bored solid on shaft / integral self aligned spur, helical or double helical
Materialization forged alloyed steel through hardened, case hardened or quenched and tempered
Spur, helical or double helical carburized induction nitrided
2. Characteristics
• Gear cutting with hobs
• The gear quality is checked by profile tester
• Tooth flank modification
• Profile correction
• Lead correction (straight/barrel)
• Designs /ratios according to ISO-DIN-A.G.M.A.
• FEM/FEA simulation software
Customized Carbon Steel Cement Ball Mill Spare Parts Mill Pinion Gear Spur Gear
3. Pinion gear material
42CRMO STEEL DATA
| C : 0.38-0.45% |
| Si: 0.17-0.37% |
| Mn: 0.50-0.80% |
| S : Allow residual content <0.035% |
| P : Allow residual content <0.035% |
| Cr: 0.90-1.20% |
| Ni: Allow residual content <0.030% |
| Cu: Allow residual content <0.030% |
| Mo: 0.15-0.25% |
MECHANICAL DATA
| Tensile Strength σb (MPa): >1080(110) |
| Yield point σs (MPa): >930(95) |
| Reduction of area ψ (%): >45 Akv (J) |
| Impact absorbing energy Akv(J): >63 |
| Impact toughness value αkv (J/cm2): >78(8) |
| Elongation σ5 (%): >12 |
| Hardness: <217HB |

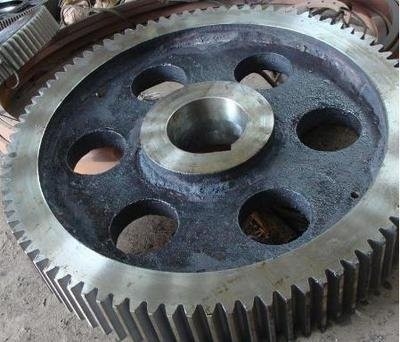

42CrMo Steel Cast And Forged Pinion Gear For Ball Mill Spare Parts
4. Applications
Our pinions are applied in the cement and minerals industries:
Ball - mills
ROD - mills
Semi Autogeneous Grind (SAG)
Rotary kilns/coolers/dryers

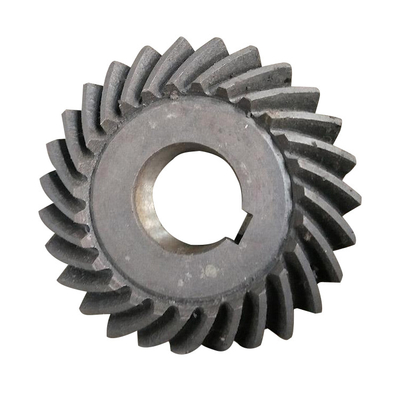

42CrMo Steel Cast And Forged Pinion Gear For Ball Mill Spare Parts
42CrMo Steel Cast And Forged Pinion Gear For Ball Mill Spare Parts
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
