Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product: | Pinion Gear |
|---|---|---|---|
| Material: | Steel, Cast Iron, Brass | Diameter: | Customised |
| Pressure Angle: | 15° - 25° | Hardness: | HRC 40 - HRC 50 |
| Warranty: | 1 Years | Delivery Time: | 2~3 Months |
| High Light: | customized small spur gear,cast iron small spur gear,pinion small spur gear |
||

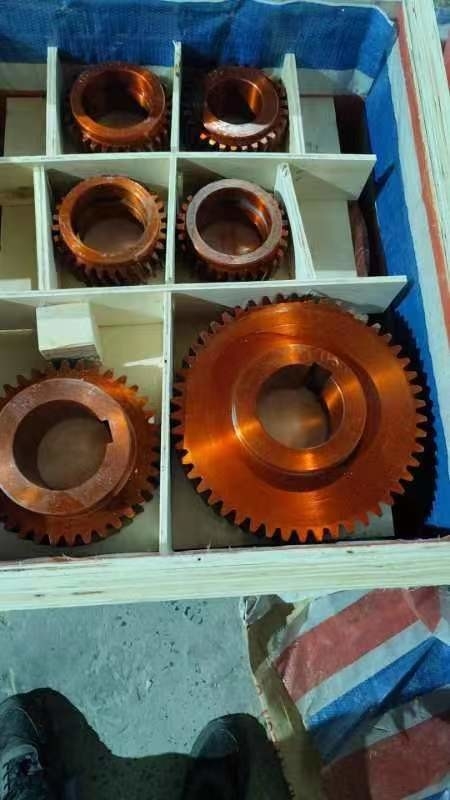

Customized Steel Cast Iron Brass Gear Reducer Gearbox Pinion Small Spur Gear
1. Reducer pinion Introduction:
Reducer pinion is one of the key transmission components of reducer, through the combination of different types of pinion, to achieve the reduction of input speed and torque.

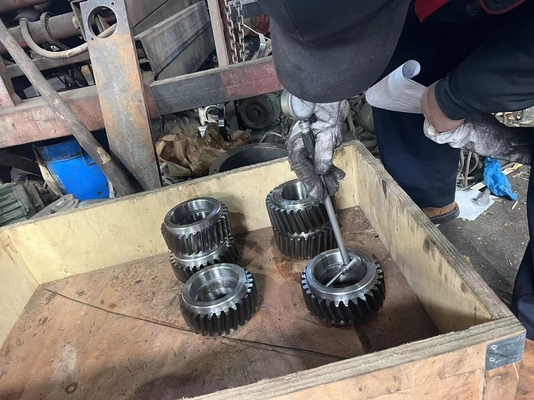

Customized Steel Cast Iron Brass Gear Reducer Gearbox Pinion Small Spur Gear
2. Reducer pinion type:
Common types of reducer pinion include:
(1) straight pinion: the rack and pinion are parallel to the axis, and the tooth surface is linear, which is suitable for high-speed deceleration transmission.
(2) helical pinion: the rack and pinion are at a certain Angle with the axis, the tooth surface is slanted, and it has smooth transmission characteristics, which is suitable for applications with low noise and high vibration requirements.
(3) conical pinion: the pinion rack and axis intersect at a point, the tooth surface is conical shape, suitable for transmitting the axis of rotation is not parallel.
Customized Steel Cast Iron Brass Gear Reducer Gearbox Pinion Small Spur Gear
3. Reducer Pinion parameter table:
The following are the numerical ranges of common pinion parameters for designing and selecting the right pinion:
| Parameter | Description | Reference value |
| Module | Size parameters of the rack and pinion | 1.0 mm - 2.0 mm |
| Number of teeth | The number of teeth of the pinion | 15 - 30 |
| Pressure Angle | The pressure Angle at which the gear engages | 15° - 25° |
| Tooth width | The width of the pinion rack | 10 mm - 15 mm |
| Normal displacement | The amount of axial movement of a gear when engaged | 0.1 mm - 0.5 mm |
| Spiral Angle | Bevel Angle of a pinion | 20° - 40° |
| Hardness | Surface hardness of pinion | HRC 40 - HRC 50 |
| Tooth surface roughness | Roughness of pinion tooth surface | Ra 1.2 μm - Ra 2.0 μm |
By selecting the appropriate value within the parameter range according to the actual requirements and design standards, the transmission efficiency and reliability of the reducer pinion can be ensured.
Customized Steel Cast Iron Brass Gear Reducer Gearbox Pinion Small Spur Gear
Company Information
Luoyang Zhongtai Industries Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
Contact Person: Mr. David
Tel: 86-18637916126
