Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | Pinion Gear |
|---|---|---|---|
| Material: | 42CrMo, 20CrMnTi ,40Cr | Diameter: | Customized |
| Module: | Customized | Number Of Teeth: | Customized |
| Warranty: | 12 Months | Delivery Time: | 2~3 Months |
| High Light: | bevel pinion gear,precision custom made machining pinion gear,cnc turning pinion gear |
||
Customized High Precision CNC Machining Parts Gear Reducer Gearbox Pinion Gear
1. Reducer pinion type:
Common types of reducer pinion include:
(1) straight pinion: the rack and pinion are parallel to the axis, and the tooth surface is linear, which is suitable for high-speed deceleration transmission.
(2) helical pinion: the rack and pinion are at a certain Angle with the axis, the tooth surface is slanted, and it has smooth transmission characteristics, which is suitable for applications with low noise and high vibration requirements.
(3) conical pinion: the pinion rack and axis intersect at a point, the tooth surface is conical shape, suitable for transmitting the axis of rotation is not parallel.

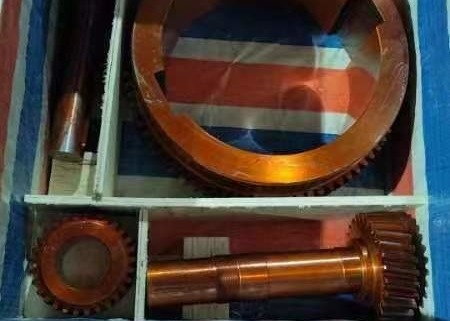

Precision Custom Made Gear Machining Cnc Turning Parts Bevel Gear Pinion Gear, Gear Reducer Gearbox Pinion Gear
2. Reducer pinion material:
20CrMnTi
40Cr
42CrMo
HT200
HT250
H62
H68

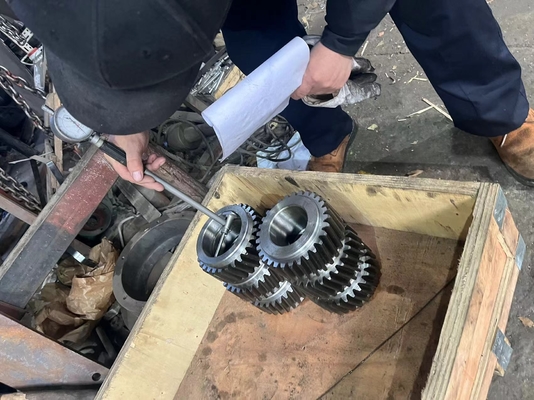

Precision Custom Made Gear Machining Cnc Turning Parts Bevel Gear Pinion Gear, Gear Reducer Gearbox Pinion Gear
3. Reducer Pinion parameter table:
The following are the numerical ranges of common pinion parameters for designing and selecting the right pinion:
| Parameter | Description | Reference value |
| Module | Size parameters of the rack and pinion | 1.0 mm - 2.0 mm |
| Number of teeth | The number of teeth of the pinion | 15 - 30 |
| Pressure Angle | The pressure Angle at which the gear engages | 15° - 25° |
| Tooth width | The width of the pinion rack | 10 mm - 15 mm |
| Normal displacement | The amount of axial movement of a gear when engaged | 0.1 mm - 0.5 mm |
| Spiral Angle | Bevel Angle of a pinion | 20° - 40° |
| Hardness | Surface hardness of pinion | HRC 40 - HRC 50 |
| Tooth surface roughness | Roughness of pinion tooth surface | Ra 1.2 μm - Ra 2.0 μm |
By selecting the appropriate value within the parameter range according to the actual requirements and design standards, the transmission efficiency and reliability of the reducer pinion can be ensured.
Precision Custom Made Gear Machining Cnc Turning Parts Bevel Gear Pinion Gear, Gear Reducer Gearbox Pinion Gear
If you need pinion, please send us drawings with technical requirements and parameters! We will quote you as soon as possible!
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Contact Person: Mr. David
Tel: 86-18637916126
