Scope of application
The briquette machine can press a variety of materials into agglomerates or balls, such as laterite nickel ore, quicklime powder, dolomite powder, magnesium oxide powder, copper concentrate, chrome ore powder, manganese ore powder, lead-zinc waste, bauxite, non-ferrous metal powder, refractory materials, ceramic materials, iron-containing powder in steel plants, converter sludge, iron oxide powder, iron sheets, etc. Its purpose is to reduce dust, control bulk density, return utilization, improve transportation characteristics, etc. It is mainly used in coal, mining, metallurgy, refractory materials, chemicals, building materials and other industries.
Principle structure
The main structure of the briquette machine consists of a transmission system, a main frame, a reducer, a belt conveyor, a pre-pressing device, a ball groove alignment device for the roller sleeve, a hydraulic system and an electronic control. During operation, the material is quantitatively and evenly added to the pre-pressing device of the ball press machine to maintain a stable material level in the pre-pressing device. Then, the pre-pressing screw in the pre-pressing device forces the material into the middle of the rollers to pre-compress the material and transport it to the arc-shaped notch of the two rollers. The surfaces of the two rollers are evenly distributed with roller pits of the same shape. Through meshing transmission, the two rollers rotate at the same speed and in opposite directions, and the material transported to the notch is bitten into the groove and forced to be compressed. As the rollers continue to rotate, the ball is removed under the action of its elastic force and gravity. As the motor continuously rotates, the rollers perform periodic rotation and pressing and molding movements to achieve batch production.
Working Principle
The ball press is mainly used for the treatment of tailings in minerals and for pressing powdery materials that are difficult to mold. It is characterized by high molding pressure, adjustable main engine speed, and a spiral feeding device.
The material is transmitted to the reducer through the belt, and then to the driving shaft through the coupling, and then to a pair of open gears to ensure that the two rollers are synchronized (reverse at the same speed). The material storage bin enters the molding hopper evenly through the quantitative equipment, so that the unit molding pressure of the material changes from small to large. The molding pressure reaches the maximum value at the center line of the rollers. After the material passes the line, the molding pressure decreases rapidly, so that the material enters the ball-off state and is smoothly de-balled.
This machine has obvious effects on materials such as coke powder, iron oxide, dust removal, coal slime, various metallurgical powders, sponge iron carbon products, etc., and its effect is extraordinary.
Mainly used for: coal powder molding; dry powder molding; desulfurized gypsum molding; coke powder molding; iron filings and various metal ore powder molding, etc.
Product Parameter
| model |
Roller diameter (mm) |
Roller width (mm) |
Total pressure (t) |
Maximum linear specific voltage (t) |
Power(kw) |
Output (t) |
weight(t) |
boundary dimension(mm) |
| L |
W |
H |
| GY520-150 |
520 |
196 |
150 |
8 |
55 |
2.2-3.5 |
13 |
4087 |
2882 |
2709 |
| GY650-180 |
650 |
220 |
180 |
8 |
90 |
4-6.5 |
19.1 |
4576 |
3365 |
3003 |
| GY650-220 |
650 |
200 |
220 |
11 |
110 |
4-6.5 |
19.2 |
4576 |
3365 |
3003 |
| GY750-230 |
750 |
280 |
230 |
8 |
160 |
6-8.5 |
30.2 |
5792 |
2963 |
3174 |
| GY750-270 |
750 |
328 |
270 |
8 |
185 |
7-10 |
35.2 |
5792 |
2963 |
3174 |
| GY750-300 |
750 |
280 |
300 |
11 |
185 |
6-8.5 |
34 |
5792 |
2963 |
3174 |
| GY750-350 |
750 |
328 |
350 |
11 |
220 |
7-10 |
38.5 |
5792 |
2963 |
3174 |
| GY1000-350 |
1000 |
440 |
350 |
8 |
250 |
10-15 |
50.8 |
6123 |
4280 |
3603 |
| GY1000-500 |
1000 |
440 |
500 |
11 |
350 |
10-15 |
65 |
6523 |
4480 |
4209 |
| GY1200-800 |
1200 |
900 |
720 |
8 |
280Kw×2 |
40 |
110 |
8830 |
5111 |
4200 |

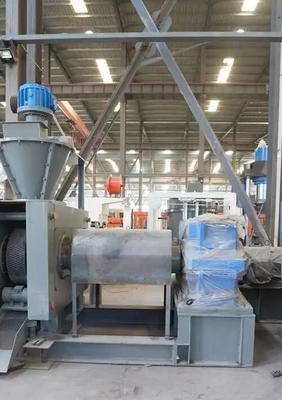

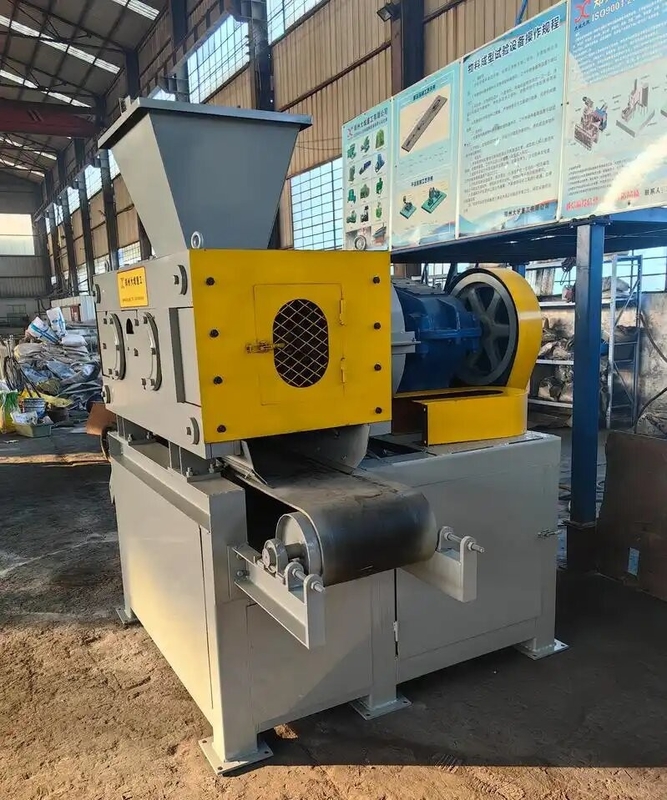

Product Display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
