Customized Wear-Resistant Plate Feeder Conveying Equipment For Feeding Size ≤1800mm

High-Quality Customized Wear-Resistant Plate Feeder Conveying Equipment

Product structure
The tensioning support adopts a steel and bolt connection structure, which is beautiful in appearance and easy to assemble and disassemble. For heavy and super heavy tensioning devices, a set of springs is added to buffer and absorb vibration. In addition, there are the following two features: (1) The screw of the tensioning device of medium and light plate feeders is located above the slide and placed under the inverted equilateral angle steel, so the screw part can be free from contamination and damage; the tensioning device of heavy and super heavy products has the screw passing through the center of the slide. (2) The tensioning device is divided into standard and heavy structures, and maintains serialization and commonality with the lower tensioning device of the bucket elevator.

The material of the moving sprocket is cast iron or steel, and the rim is a replaceable tooth structure made of highly wear-resistant hardened steel; the gearless rim of the tensioning sprocket is modular and replaceable. This can reduce a lot of maintenance and reduce maintenance costs. In addition, the replaceable gearless rim can ensure correct and constant contact between the chain and the sprocket to prevent the tooth surface from gluing.

Working Principle
The high-strength bulldozer die-forged chain with a pitch of 228.6mm (9 inches) is used as the traction part. The two chains are connected to form a closed loop by passing through a pair of driving sprockets installed at the head of the machine body and a pair of tensioning wheels at the tail of the machine body. Each link of the two rows of chains is equipped with overlapping, heavy-duty conveying troughs to form a continuous conveying line capable of carrying materials. Its dead weight and the weight of the materials are supported by multiple rows of supporting rollers, chain support wheels and slideway beams installed on the machine body. The transmission system is connected to the reducer through an AC variable frequency speed regulating motor, and then the expansion sleeve is directly connected with the drive device to drive the carrying mechanism to run at a low speed. The materials unloaded from the tail silo are transported to the front of the machine body along the conveying line for discharge, so as to achieve the purpose of continuous and uniform feeding to the working machinery below.

Working Purpose
It is a kind of continuous transport machinery widely used in mining, metallurgy, building materials, ports, coal and chemical mining enterprises. It is mainly used to continuously and evenly supply and transfer various large heavy objects and abrasive bulk materials from storage bins or transfer hoppers to crushers, batching devices or transportation equipment.

Product Description
Our plate feeder, sometimes called apron feeder, is mainly used to handle materials from 100mm to 200mm. It is widely used in mining, transportation and batching in industries such as cement, fertilizer, non-ferrous metals, mining, chemical industry, metallurgy, papermaking, etc. It is generally suitable for continuous material conveying in horizontal and inclined directions for running machinery, silos, hoppers and other types of containers.

It is mainly used to handle bulk materials with a bulk density not exceeding 1.2t/m³, or a block weight not exceeding 140kg and a temperature not exceeding 350°C. The WBL plate feeder produced by our company is mainly used to convey bulk materials, so that the feeder changes from intermittent feeding to continuous feeding. It has the characteristics of large traction power, less leakage, stable performance, long life and easy maintenance.

Product Parameter

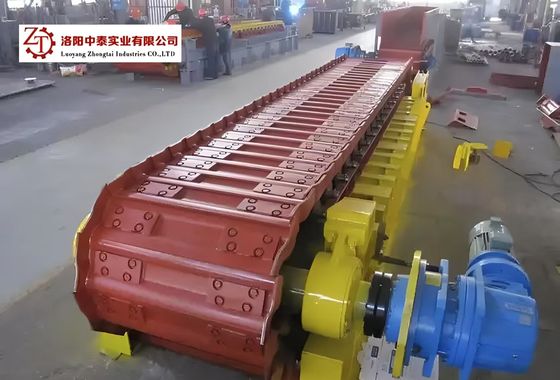

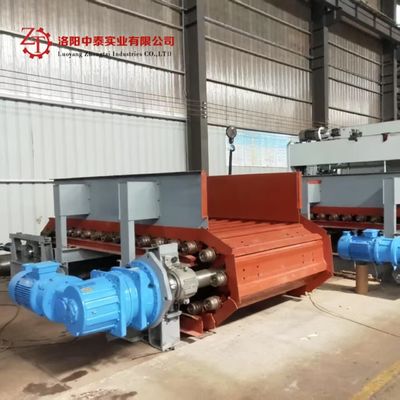

Product Display


Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
