Special Bucket Elevator For Vertical Lifting Of Industrial Materials

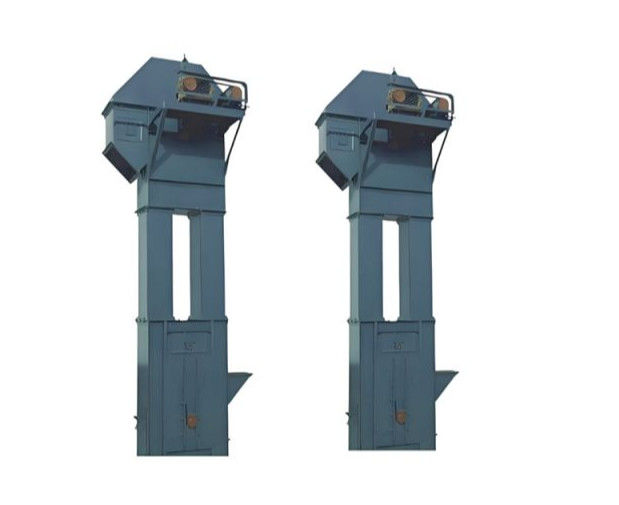

Large Image : Special Bucket Elevator For Vertical Lifting Of Industrial Materials

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	IOS/CE
Model Number:	NE/TH/TGH/HL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	regular packing
Payment Terms:	L/C, T/T
Supply Ability:	10000 sets per year

Contact Now

Detailed Product Description

Conveying Hoisting Machine:	Bucket Elevator	Application:	Metallurgy, Chemical Industry
Usage:	Conveye Materials In Vertical State	Feature:	Efficient Stable
Model:	NE/TH/TGH/HL	Key Word:	Conveying Hoisting Machine
Lifting Capacity:	15-800(m3/h)	Weight Of Operation Parts:	28-313
Highlight:	Special Bucket Elevator , Industrial Materials Bucket Elevator , Vertical Lifting Bucket Elevator

Special Bucket Elevator For Vertical Lifting Of Industrial Materials

Product Introduction

The hopper scoops up materials from the lower storage, lifts them along with the conveyor belt or chain to the top, and flips downward after bypassing the top pulley. The bucket elevator then pours the materials into the receiving tank. The transmission belt of belt-driven bucket elevators usually adopts rubber belts, which are installed on the drive pulley at the bottom or top and the redirecting pulleys at the upper and lower parts. Chain-driven bucket elevators are generally equipped with two parallel transmission chains, with a pair of drive sprockets at the top or bottom and a pair of redirecting sprockets at the bottom or top. Bucket elevators are usually enclosed in a casing to prevent dust from flying.

Suitable for lifting materials from low to high places, the machine automatically and continuously operates upward after materials are fed into the hopper through the vibrating table.

The main components of the bucket elevator include hoppers, driving device, top and bottom pulleys or sprockets, belt or traction chain, tensioning device, and housing.

Technical Parameters of NE Series Bucket Elevator:

Model	Lifting capacity	Bucket			Weight of operation parts	Max. size of materials
	(m³/h)	Volume (L)	Bucket gap (mm)	Bucket speed (m/min)		Percentage (%)
	(m³/h)	Volume (L)	Bucket gap (mm)	Bucket speed (m/min)		10	25	50	75	100
NE15	15	2.5	203.2	29.8	28	65	50	40	30	25
NE30	32	7.8	304.8	30.1	35	90	75	58	47	40
NE50	60	14.7	304.8	30.1	64	90	75	58	47	40
NE100	110	35	400	31	89	130	105	80	65	55
NE150	170	52.5	400	31	112	130	105	80	65	55
NE200	210	84.6	500	30	134	170	135	100	85	70
NE300	320	127.5	500	30	188	170	135	100	85	70
NE400	380	182.5	600	30	205	205	165	125	105	90
NE500	470	260.9	700	30	223	240	190	145	120	100
NE600	600	300.2	700	30	274	240	190	145	120	100
NE800	800	501.8	800	30	313	275	220	165	135	110

Technical Parameters of TH/TGH Series Bucket Elevator

Model	Bucket shape	Conveying capacity (m³/h)	Bucket			Chain		Sprocket pitch diameter (mm)	Operation speed of bucket (m/s)	Max. size of materials (mm)
			Width (mm)	Volume (L)	Distance (mm)	Pitch (mm)	Breaking load (KN)
TH315	zh	36.6	315	3.75	500	50	≥320	φ630	1.4	35
	sh	58.6		6
TGH315	zh	46		3.75	400
	sh	80		6
TH400	zh	57.7	400	5.9	500					40
	sh	92.8		9.5
TGH400	zh	80		5.9	400
	sh	125		9.5
TH500	zh	73	500	9.3	688	86	≥480	φ800	1.5	50
	sh	118		15
TGH500	zh	100		9.3	516
	sh	157		15
TH630	zh	114	630	14.6	688					60
	sh	185		23.6
TGH630	zh	152		14.6	516
	sh	246		23.6
TH800	zh	146	800	23.3	920	92	≥570	φ1000	1.4	75
	sh	235		37.5
	sh	365		58

Technical Parameters of HL Series Bucket Elevator

Model	Output (t/h)	Rotating speed (r/min)	Motor power (kw)	Weight (kg)
Model	Output (t/h)	Rotating speed (r/min)	Motor power (kw)	10m	m
HL160	15-8.0	1.25	3.0-11	2480	140
HL250	21-11	1.25	3.0-15	3390	180
HL300	28-16	1.25	5.5-18.5	3930	200
HL400	47-30	1.25	7.5-22	4990	260
HL315	59-35	1.4	4.0-11	3960	180
HL400	94-58	1.4	7.5-18.5	4980	205
HL500	118-73	1.4	11-22	5820	255
HL630	145-90	1.4	15-30

Product Display

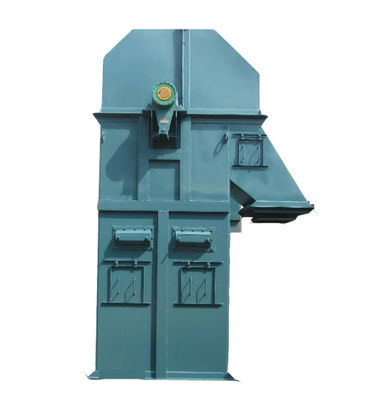

Special Bucket Elevator For Vertical Lifting Of Industrial Materials 0

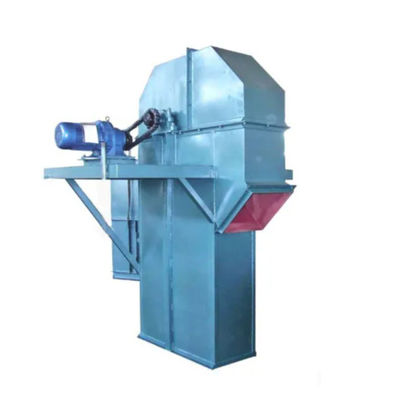

Special Bucket Elevator For Vertical Lifting Of Industrial Materials 1

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
