Widely Applied Highly Automated Ceramsite Sand Production Lines

Widely Applied Highly Automated Ceramsite Sand Production Lines

Characteristics Of Ceramcite Sand

• Tiny, round, solid ball shape provides greater surface area for improved performance and dispersion in its application

• High refractory rating, lower specific gravity rating, and higher service temperature produces greater yield

• With lower bulk density, it offers better air permeability for better performance as a result of its overall physical characteristics

• Lower thermal expansion rate and thermal conductivity produces better results in intense heat environments

• Standard particle size within each grade is ideal for specific applications

• Raw material is easily reclaimed multiple times by dry method

• Physical characteristics produce a lower breakage rate during dry crushing

• Ceramsite sand is a cost effective, single sand application; no need to mix with other sands

• Ceramsite Sand is environmentally friendly, reducing pollution and reusing raw materials

Ceramite Production Process

Product ceramsite generally using the production process of raw material homogenization, granulation, baking, cooling. According to the type and characteristics of raw materials, Its granulating process can be divided into the following kinds:

1. Plastic method technology: Suitable for clay and clayey material.
Its process: clay - plasticizing, smoothing of roller and granulating - roasting - cooling - finished products.

2. Mud into the ball process: Suitable for fly ash or other powder raw materials.
Its process: fly ash - mixed smoothing - into balls set granulating - roasting - cooling - finished products.

3. Powder grinding ball process: Suitable for shale, clay shale and gangue materials.
Its process: shale, drying, grinding, prewetting - into a ball dish granulating - roasting - cooling - finished product, the additive agent.

4. Broken (dry) process: Suitable for shale,etc.
Its process: raw materials and broken graded - roasting shale and finished product. And cooling.

5. Fuel: according to local fuel supply, using bituminous coal, crude oil or natural gas.

Ceramsite Sand Making Machinery

Ceramsite sand making machinery includs crusher, screening machine,belt conveyor, feeding machine, discharge machine, raw material storage warehouse,dustfall room,induced draft fan,main kiln body,coal injection system and control cabinet,etc.The speed of the feeder under the raw material stroge warehouse, kiln body and the quantity of coal arching are all of stepless speed regulating.

Production Process Of Metallurgy Machine

Raw materials of ceramic production are mainly shale, clay, fly ash, industrial waste, river silt. Different raw materials and products of its production process performance indicators are also different.

In general, clay shale (siltstone and claystone of the mixture) of the extruded larger magnification, small bulk density, good insulation properties, but relatively low compressive strength of cylinder can be used to produce non-load bearing hollow block products. However, some areas are dominated by

siltstone and shale raw materials to produce ceramic body weight, for the production of load-bearing block, beam, plate and so on.

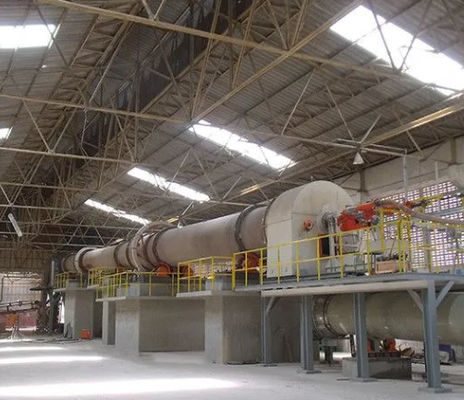

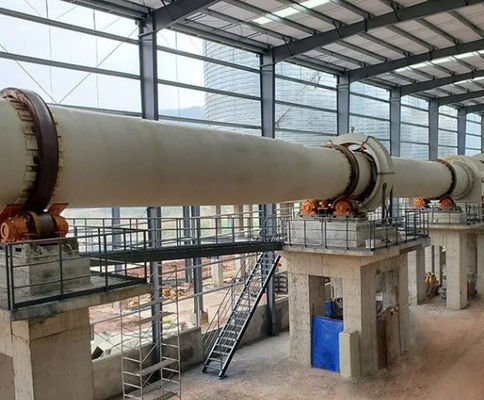

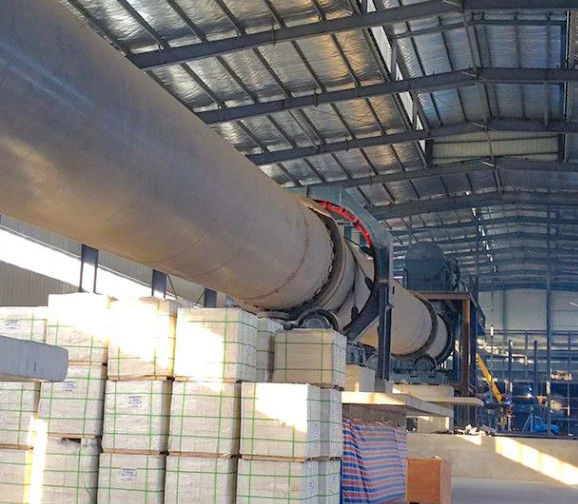

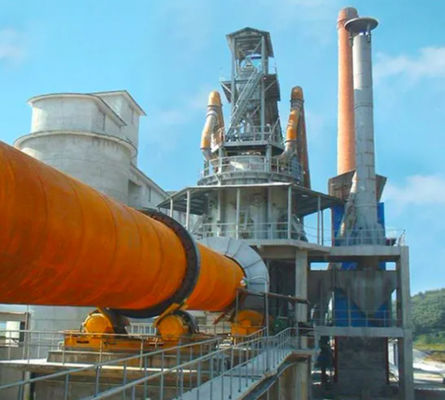

Product Display Of Metallurgy Machine

Product Display Of Metallurgy Machine

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
