Eco-Friendly And Pollution-Reducing Air-Swept Coal Mill

Large Image : Eco-Friendly And Pollution-Reducing Air-Swept Coal Mill

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Ore Grinding Mill

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Air Swept Coal Mill	Condition:	New
Type:	Ore Grinding Mill	Application:	Stones And Bulk Materials
Warranty:	12 Months	Uasge:	Building Materials, Chemical
Application Industry:	Cement Plant, Steel Mill, Chemical Plant & Incinerator	Port:	QingDao,TianJian,ShangHai
Weight:	36.7-215t	Power:	250-1400kw

Eco-Friendly And Pollution-Reducing Air-Swept Coal Mill

The air-swept coal mill is a type of equipment mainly used in industrial fields such as cement plants and thermal power plants for the preparation and processing of coal powder.

Working principle Of Ore grinding mill

The air-swept coal mill feeds the raw materials into the mill through the feeding device, and at the same time introduces hot air for drying. Inside the mill, the raw materials are crushed under the impact and grinding action of the grinding media. The qualified fine powder is then carried away by hot air and enters the cyclone dust collector for separation.

The technical features Of Ore grinding mill

The transmission forms adopted by the cylinder mill include edge flinging, center transmission, multi-point meshing edge transmission, etc. The drive forms include asynchronous motor + reducer + pinion + large gear and synchronous motor + air clutch + pinion + large gear.
Generally, a two-end static and dynamic pressure bearing support method is adopted. A fully enclosed self-aligning 1200-line contact 'rocker type' bearing is used. Single sliding shoe, double sliding shoe static and dynamic pressure support methods or full static pressure support can also be used.
It is equipped with a reliably sealed gear cover and an automatic glycerin spray lubrication device.
The cylinder is a key component of the mill. Finite element analysis is conducted on it by using a computer to ensure its reliability in use.
Large and medium-sized grinding mills are equipped with slow-speed drive devices.
Large and medium-sized grinding mills are equipped with high and low pressure lubrication stations.
The control and protection system adopts PLC control

Ore grinding mill technical parameters

Specifications (diameter × length)	Rotating speed (r/min)	Feed size(mm)	Capacity(t/h)	Abrasive body loading (t)	Main motor			Main decelerator		Weight (t)
Specifications (diameter × length)	Rotating speed (r/min)	Feed size(mm)	Capacity(t/h)	Abrasive body loading (t)	Model	Power(kw)	Rotating speed(r/min)	Model	Speed ratio	Weight (t)
φ2.2×4.4	22.4	≤25	8～9t/h	18t	YRKK4501-6	250	986	ZD60-11	6.3	36.7
φ2.2×5.8	22.4	≤25	5.5～7	23.5～25	Y4005-8	280	750	ZD70-10	5.6	45
φ2.4×4.75	21.2	≤25	14	22～24	YR4501-8	315	740	ZD60-8	4.5	49
φ2.4×4+2	20.2	≤25	10～11	19	YRKK450-8	250	740	ZDY355	4.5	60
φ2.4×4.5+2	20.2	≤25	10～12	20.8	YRKK500-8	280	740	JDX45	4.5	68
φ2.6×(5.25+2.25)	19.7	≤25	9～10	28	YRKK500-8	400	740	ZDY450	4.5	87.4
φ2.8×(5+3)	18.7	≤25	13～13.5	32	Y5001-8	500	740	JDX560	4.5	102
φ2.9×4.7	19.1	≤25	14～19	34.4	YR560-8	500	743	MBY560	5.6	79
φ2.5×3.9	21	≤25	14	21	JR138-8	280	740	ZD70-9	5	49.5
φ3×(6.5+2.5)	18.3	≤25	17～19	43	YRKK5603-8	630	740	MBY560	5	120
φ3.2×4.8	16.7	≤25	20	48	YR630-8	630	740	MBY560	5	118
φ3.2×(6.5+2)	16.9	≤25	20	50	YRKK560-8	710	740	JDX630	5	137
φ3.5×8	17.2	≤25	55～60	80	YRKK710-8	1000	740	MBY800	6.3	182
φ3.8×(7.75+3.5)	16.7	≤25	85	85	YRKK710-8	1400	740	JDX90-WX-2A	5.6	215

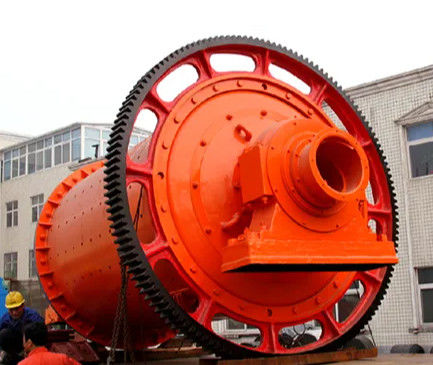

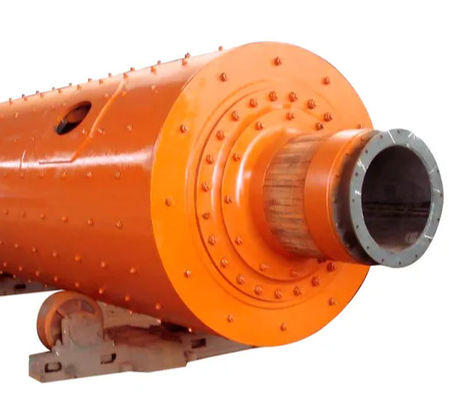

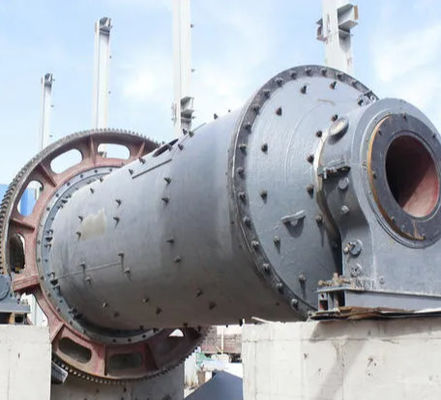

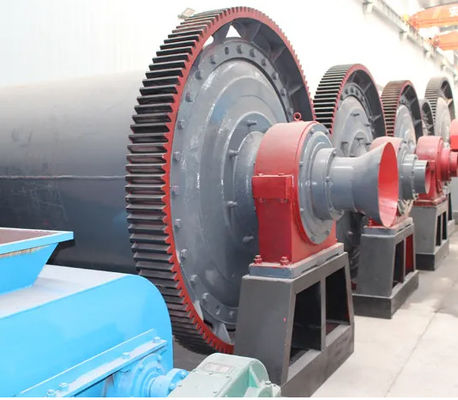

Ore grinding mill photo explanation

Eco-Friendly And Pollution-Reducing Air-Swept Coal Mill 0

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
