JKMD Multi-Rope Friction Mine Hoist Is Specially Designed For Mine Shafts
Product Introduction
Adopting various types of drums, including integral, two-piece, and four piece types;
1.The drum rope groove adopts processed spiral rope groove, folded line rope groove, or spiral rope groove pressed with wood lining and plastic lining, and a steel rope transition device is set between the ropes;
2.Adopting a rear mounted disc brake with oil cylinder and electric hydraulic joint control; Hydraulic stations are divided into two types: medium low pressure and medium high pressure. There are two types of medium and low pressure hydraulic stations: constant braking force electrical delay and hydraulic delay two-stage braking; There are two forms of medium and high pressure hydraulic stations: constant deceleration and constant braking torque two-stage braking. The hydraulic station can be equipped with pressure sensors and pressure relays;
3.The spindle and drum are connected by flat high torque friction connection;
4.A signal monitoring device composed of a photoelectric encoder, a self aligning machine, and a low-speed Chilean speed measuring generator, with complete monitoring and protection functions such as overspeed, over winding, depth indication failure, brake shoe wear, spring fatigue, etc;
5.The control panel comes in two forms: integral and split, all of which use integrated signal lights, reliable electrical instruments, and a new integral operating handle. It also has a digital depth indicator and a depth indication system that integrates digital and screw type depth indicators. Both have dedicated tabletops such as industrial televisions, computers, printers, etc;
6.The Tianlun device adopts a one-piece or two-piece welded structure, supported by rolling bearings and equipped with PVC or nylon friction pads on the wheel rim;
7.It can be equipped with a mine hoist network control and diagnostic system.

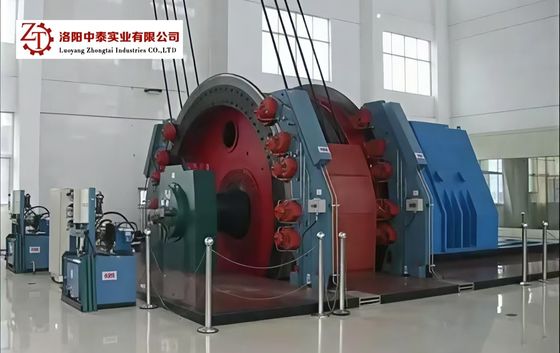

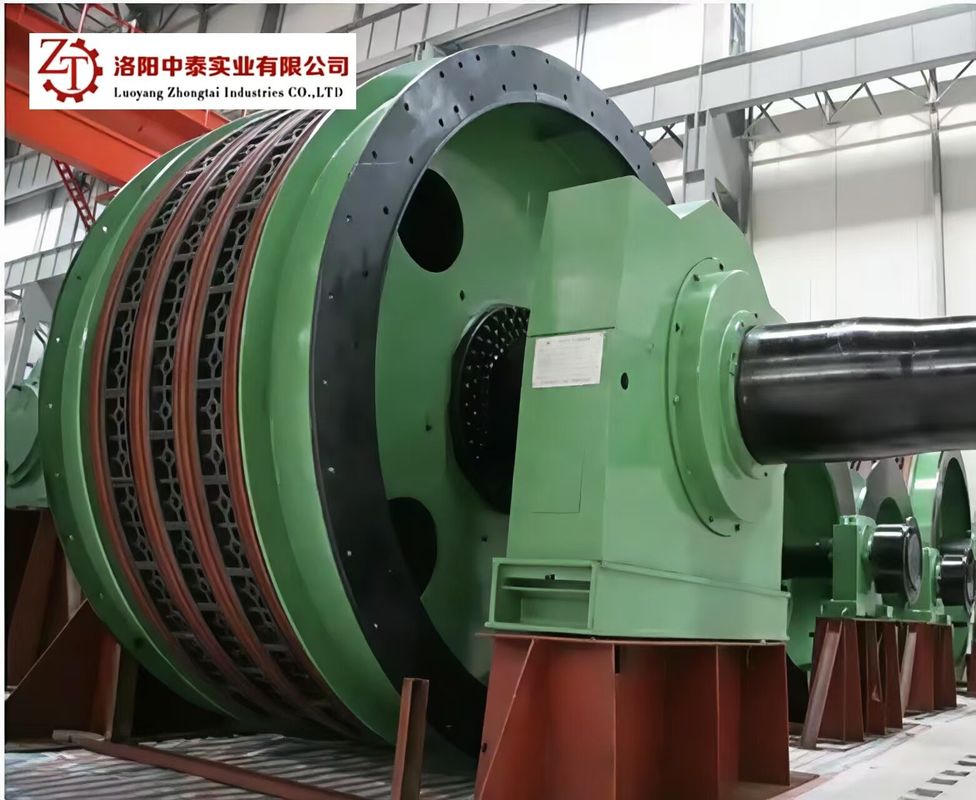

Product Display
Product Parameters
| Model |
Crown wheel diameter |
Wirerope |
Max.lifting speed |
Reduction drive |
Displacement weight of rotating parts |
Shifting weight of the celestial wheel |
Boundary dimension(L×W×H) |
Remarks |
| Max.static tension |
Max.tension difference |
Max.diameter |
Spacing |
| m |
kN |
mm |
m/s |
model |
speed ratio |
t |
t |
m |
| JKMD-2.25×2(Ⅰ)E |
2.25 |
105 |
25 |
22 |
300 |
10 |
ZZP560(2) |
11.5 |
4.83 |
1.2×2 |
7.7×9×2.1 |
The weight and dimensions in the table do not include the microdrag device |
| JKMD-2.25×4(Ⅰ)E |
215 |
65 |
XP800(2) |
7.35 10.5 11.5 |
6.5 |
2.3×2 |
6.8×9.5×2.3 |
| JKMD-2.8×2(Ⅱ)E |
2.8 |
165 |
45 |
28 |
XP800(2) |
4.911 5.165 5.239 |
1.528×2 |
7.8×10×2.65 |
| JKMD-2.8×4(Ⅰ)E |
335 |
95 |
XP1000(2) |
9 |
3.44×2 |
8.5×10×2.65 |
| JKMD-2.8×4(Ⅱ)E |
P2H800(2) |
10.2 |
3.44×2 |
7.5×10×2.65 |
| JKMD-3.5×2(Ⅰ)E |
3.5 |
265 |
70 |
35 |
XP1000(2) |
12 |
3.1×2 |
7×9.5×3.02 |
| JKMD-3.5×4(Ⅰ)E |
525 |
140 |
13 |
XP1120(2) |
20.6 |
6.3×2 |
8.5×9.5×3 |
| JKMD-3.5×4(Ⅱ)E |
P2H800(2) |
22.8 |
6.3×2 |
8×9.5×3.02 |
| JKMD-3.5×4(Ⅲ)E |
|
|
|
|
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
