Economic Environmentally Friendly And Yield-Increasing Mineral Processing Ball Mill

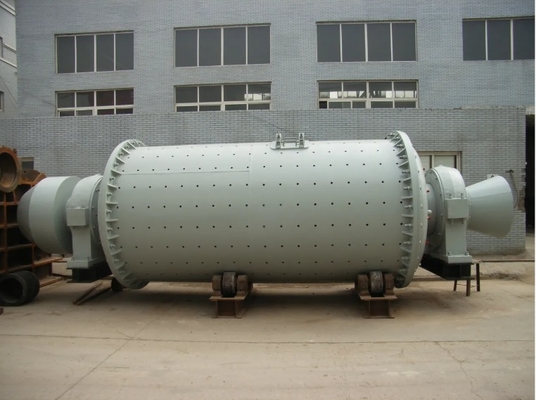

Large Image : Economic Environmentally Friendly And Yield-Increasing Mineral Processing Ball Mill

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	IOS/CE
Model Number:	Steel Ball Coal Mill

Payment & Shipping Terms:

Minimum Order Quantity:	1 set/sets
Price:	negotiate
Packaging Details:	Standard packing or according to customer's requirement
Payment Terms:	L/C, T/T,
Supply Ability:	3000 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Steel Ball Coal Mill	Application:	Cement Industry, Metallurgy Industry, Chemical Industry
Model:	DTM Series	Condition:	New
Feature:	Efficient Low Consumption	Materials:	Various Hardness Of Coal
Type:	Ore Grinding Mill	Warranty:	12 Months
Port:	Qingdao China	Cylinder Diameter:	1500mm
Cylinder Length:	3000mm	Effective Volume:	5m3
Rotate Speed:	26.6r/min	Max. Ball Loading Capacity:	9t

Economic Environmentally Friendly And Yield-Increasing Mineral Processing Ball Mill

The ore dressing ball mill is the main equipment in mineral processing, used for separating and screening minerals to improve the quality of selected ores.

Working principle

Materials enter the cylinder through the feed end. When the cylinder rotates, the grinding body is lifted to a certain height under the action of inertia, centrifugal force, and friction, then falls to crush the materials. After coarse grinding in the first chamber, the materials enter the second chamber for further grinding, and finally discharge through the discharge grate, completing the grinding operation.

Application scope

Suitable for powder grinding and processing in industries such as mining, lime, chemical, cement, construction, and fly ash. According to different discharge methods, it can be divided into lattice type and overflow type, respectively suitable for coarse grinding and fine grinding operations.

The technical features are as follows:

The tube mill adopts various drive modes including edge single drive, central drive, and multi-point meshing edge drive; the drive systems include asynchronous motor + reducer + pinion + gear and synchronous motor + air clutch + pinion + gear.
It generally uses a supporting method with static and dynamic pressure bearings at both ends, employing fully enclosed self-aligning 1200-line contact 'rocking type' bearings, and can also use single or double sliding shoe static and dynamic pressure supporting methods or full static pressure support.
Large open gears are designed according to American AGMA standards, equipped with reliable gear covers and automatic glycerin spray lubrication devices.
The cylinder is a key component of the mill. Finite element analysis is conducted on it by using a computer to ensure its reliability in use.
Large and medium-sized mills are equipped with slow drive devices.
Large and medium-sized mills are equipped with high and low-pressure lubrication stations.
The control and protection system uses PLC control.

Product parameters Of Ore Grinding Mill

Main Technical Parameters of Wet Grate Ball Mill:

Model	Cylinder diameter	Cylinder length	Effective volume	Rotate speed	Max. ball loading capacity	Motor		Size (L×W×H)	Weight
Model	Cylinder diameter	Cylinder length	Effective volume	Rotate speed	Max. ball loading capacity	Power	Speed	Size (L×W×H)	Weight
	mm	mm	m³	r/min	t	kw	r/min	m	t
MQS12×24	1500	3000	5	26.6	9	95	742	6.4×2.9×2.6	18
MQS15×15	1500	1500	2.3	29.2	4.8	60	725	5.7×3.2×2.8	13.7
MQS15×24	1500	2400	3.7	29.2	7.6	90	730	6.9×3.3×2.8	16.5
MQS15×30	1500	3000	4.6	26.6	10	90	742	7.6×3.4×2.8	19.5
MQS21×30	2100	3000	9.4	22.1	20	220	740	8.5×4.65×3	45
MQS24×30	2400	3000	12.2	21	25	250	980	8.8×4.7×4.4	55
MQS24×70	2400	7000	26.66	21	54	475	740	14.3×5.8×4.4	67
MQS27×21	2700	2100	10.6	19.7	22	280	733	9.7×6.5×4.8	69
MQS27×36	2700	3600	18.5	20.5	39	400	187.5	12×5.8×4	74
MQS27×40	2700	4000	20.5	20.24	38	400	187.5	12.4×5.8×4.7	77
MQS27×60	2700	6000	34.34	19.5	53	630	589	12×5.7×4.5	84
MQS29×41	2900	4100	26	19.34	42	450	740	9.9×6.1×5.1	76.1
MQS31×64	3100	6400	43.7	18.3	56	1000	167	15.2×6.98×5.8	141
MQS32×31	3200	3100	22.65	18.3	46.9	500	167	13.9×7.3×6.0	109
MQS32×36	3200	3600	26.3	18.3	54	630	167	14.3×7.3×6.0	116.94
MQS32×40	3200	4000	29.2	18.2	60	710	980	14.7×7.3×6.0	121.4
MQS32×45	3200	4500	32.9	18.3	68.5	800	167	15.2×7.3×5.9	126.23
MQS32×54	3200	5400	39.4	18.3	81.6	1000	167	16.6×7.3×6.1	135.4
MQS36×45	3600	4500	41.4	17.25	86	1000	167	13.5×7.3×6.3	153.1
MQS36×60	3600	6000	54	17.3	112	1400	167	15.5×8.3×6.3	190.6
MQS36×85	3600	8500	79	17.4	144	1800	743	20×8.2×7.1	260.89
MQS40×60	4000	6000	69.8	16.0	126	1500	200	17.4×9.34×7.5	215.5
MQS40×67	4000	6700	76	16.0	155	1600	980	16×8.43×7.5	235.2
MQS40×13.5	4000	13500	157	16.5	280	3300	980	24.2×9.9×7.8	284/375

Main Technical Parameters of Overflow Ball Mill:

Model	Cylinder diameter	Cylinder length	Effective volume	Rotate speed	Max. ball loading capacity	Motor		Size (L×W×H)	Weight
Model	Cylinder diameter	Cylinder length	Effective volume	Rotate speed	Max. ball loading capacity	motor	speed	Size (L×W×H)	Weight
	mm	mm	m³	r/min	t	kw	r/min	m	t
MQY15×30	1500	3000	5	26.6	9	95	742	7.4×3.4×2.8	18.5
MQY15×36	1500	3600	5.7	26.6	10.6	95	742	8.0×3.4×2.8	17.22
MQY18×61	1830	6100	13.4	24.5	24.6	220	736	10.2×5.1×4.0	37.3
MQY21×30	2100	3000	9.4	22.1	15	200	740	8.5×4.65×3	45
MQY24×30	2400	3000	12.2	21	22.5	250	980	8.8×4.7×4.4	55
MQY24×70	2400	7000	26.66	21	48	475	740	14.3×5.8×4.4	67
MQY27×36	2700	3600	18.5	20.5	39	400	187.5	9.8×5.8×4.7	61.34
MQY27×40	2700	4000	20.5	20.24	38	400	187.5	10.4×5.8×4.7	70
MQY27×45	2700	4500	23.5	20.5	43.5	500	187.5	12.5×5.8×4.7	76
MQY27×60	2700	6000	34.34	19.5	53	630	589	13.5×5.9×4.7	71.2
MQY28×54	2800	5400	30	19.5	55.2	630	167	13×5.83×4.7	97.8
MQY28×80	2800	8000	43	20	78.6	800	137	16.5×7.3×5	115
MQY30×11	3000	11000	69.2	17.3	100	1250	429	28.9×3.8×5	227.8
MQY32×36	3200	3600	26.3	18.3	48.4	500	167	14.3×7.3×6	116.94
MQY32×40	3200	4000	29.2	18.2	60	560	980	16.7×7.3×6	121.4
MQY32×45	3200	4500	32.9	18.3	60.5	630	167	13×7.0×5.82	124.23
MQY32×54	3200	5400	39.4	18.3	73	800	167	14.2×7.0×5.82	129
MQY32×64	3200	6400	46.75	18.3	86	1000	167	15.2×7.0×5.8	140
MQY32×75	3200	7500	55.5	18.3	102	1250	743	17.7×8.4×6.3	154
MQY32×90	3200	9000	64.2	18.3	106.6	1250	150	18.5.7.3×6	173
MQY34×45	3400	4500	37	18.4	74.6	800	167	11.5×7×6.1	129.8
MQY34×56	3400	5600	45.8	17.9	84.3	1120	985	16.7×7.6×6.3
MQY36×45	3600	4500	41.4	17.25	76	1000	167	13×7.3×6.3	144.1
MQY36×50	3600	5000	46.7	17.5	85.96	1250	167	15×7.6×6.2	150
MQY36×50	3600	5000	46.7	17.3	85.96	1250	429	23×4.6×6.3	176
MQY36×56	3600	5600	55.4	17.76	106.3	1250	750	14.4×8×6.3	159.7
MQY36×60	3600	6000	55.7	17.3	102.5	1250	429	24×4.6×6.3	138.73
MQY36×60	3600	6000	54	17.3	102	1250	167	15.6×8.3×6.3	162.7
MQY36×61	3600	6100	55.36	17.76	106.3	1200	980	15.8×8.5×6.2	164.1
MQY36×85	3600	8500	79	17.4	131	1800	743	20×8.2×7.1	251.89
MQY36×90	3600	9000	83.5	17.4	138	1800	743	28×4.6×5.6	286
MQY38×67	3800	6700	70	16.5	130	1400	743	19×8.2×7.1	185.2
MQY40×60	4000	6000	69.8	16.0	126	1500	200	17.4×9.5×7.6	203.5
MQY40×67	4000	6700	78	16.0	136.3	1600	200	15.6×9.6×7.3	206.2
MQY40×135	4000	13500	155	16	233	3300	200	23×10×4.9	343
MQY43×61	4270	6100	80	15.67	144	1750	200	14×10×7.7	215.3
MQY50×64	5030	6408	120	14.4	251	2600	200	14.6×11×9.1	318.5
MQY50×83	5030	8300	152.3	14.4	266	3300	200	22×10.5×9	402.6
MQY55×65	5500	6500	143.3	13.8	264	3400	200	18.5×9.8×8.9	451.5
MQY50×85	5500	8500	187.4	13.8	335	4500	200	20.5×12×9.8
MQY55×65	5500	6500	143.3	13.8	264		3400	200
MQY50×85	5500	8500	187.4	13.7	335		4500	200
MQY55×88	5500	8800	191.5	13.7
MQY60×95	6700	9500	249.3	13
MQY67×116	6700	11600	385	12.5
MQY73×115	7300	11500	495	12
MQY80×120	8000	12000	570.5	11.5

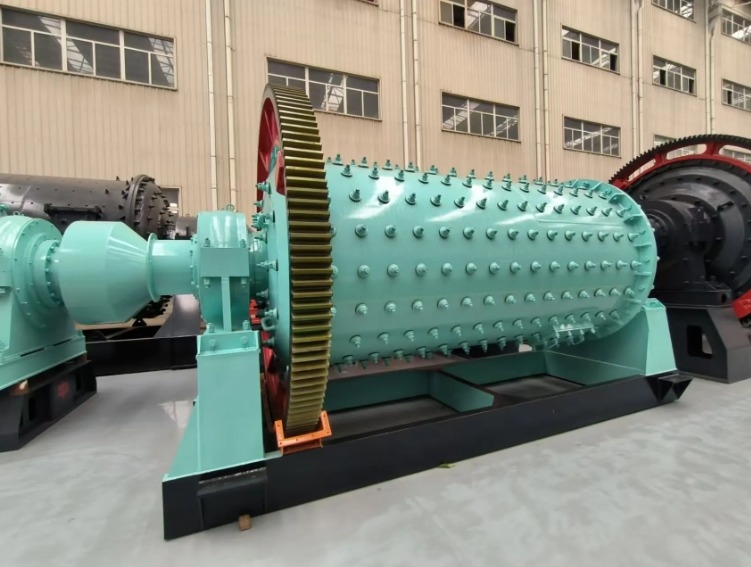

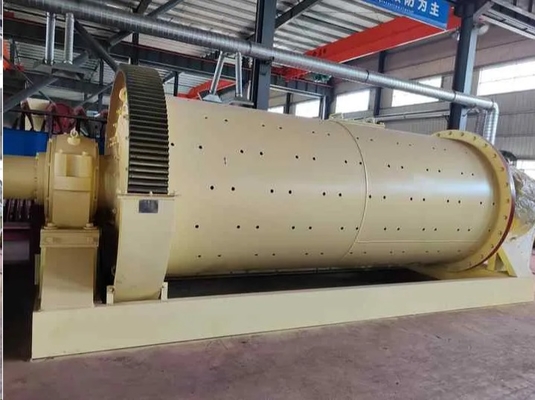

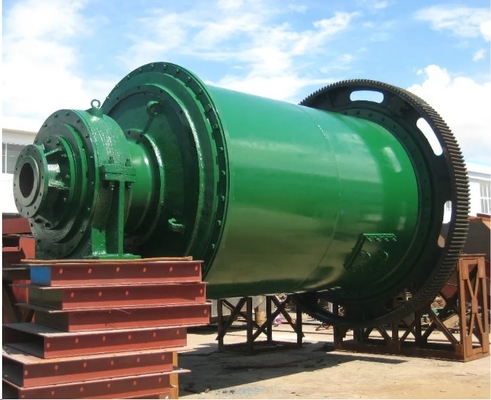

Product Display Of Ore Grinding Mill

Economic Environmentally Friendly And Yield-Increasing Mineral Processing Ball Mill 0

Ore Grinding Mill

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
