Vibrating Feeder With Adjustable Bar Gap Used In Mining Metallurgy And Coal

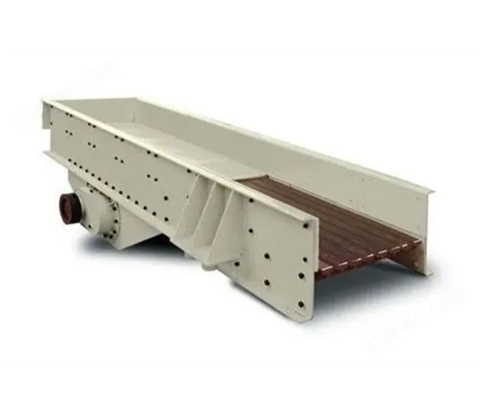

Large Image : Vibrating Feeder With Adjustable Bar Gap Used In Mining Metallurgy And Coal

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Conveying Hoisting Machine

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	$10,000.00
Packaging Details:	Standard packing or according to customer's requirement
Payment Terms:	L/C, T/T
Supply Ability:	10.0 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Name:	Ore Vibrating Feeder
Applicable Industries:	Manufacturing Plant, Construction Works , Energy & Mining	Local Service Location:	Viet Nam, Indonesia, Australia, Argentina
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Model:	GZD,ZSW Series
Port:	Qingdao, Tianjin, Shanghai	Warranty:	1.5 Years
Max. Feeding:	300mm	Pocessing Capacity:	80t/h
Motor Power:	1.1*2kw	Obliquity Of Material Trough:	10o
Total Weight:	2798kg	Type:	Conveying Hoisting Machine

Vibrating Feeder With Adjustable Bar Gap Used In Mining Metallurgy And Coal

Vibrating feeder is a feeding device widely used in metal, coal and other industries. It is mainly used to evenly discharge the material in the silo onto the belt conveyor to form a material layer of appropriate thickness and width.

Working Principle
A motor vibrating feeder uses two vibration motors of the same specification as the excitation source. The excitation force is generated by eccentric weights at each end of the motors, making it an ideal vibratory drive device. The feeding process of a motor vibrating feeder is achieved by reciprocating linear vibration of the feed trough in the inclined direction. When the component of the trough's vibration acceleration exceeds the component of gravity acceleration perpendicular to the trough, the material in the trough is thrown up and jumps forward in a parabolic wheel path. With each vibration of the trough, the material is thrown up once. In this way, the material continuously jumps forward at the trough's vibration frequency, achieving the desired feeding effect.

Structural Features

Smooth vibration;
Special bar design prevents material blockage;
Adjustable bar gap;
Optional stepless speed control motor for easy feed rate control without frequent motor restarts.

Technical Parameters Of Conveying Hoisting Machine

Model	Max. feeding (mm)	Pocessing capacity (t/h)	Motor power (kw)	Obliquity of material trough (o)	Total weight (kg)	Trough size (mm)	Dimensions (LWH) (mm)
GZD-650*2300	300	80	1.1*2	10	2798	650*2300	23001360780
GZD-750*2500	350	100	1.1*2	10	3260	750*2500	25001460780
GZD-850*3000	400	120	3*2	10	3607	850*3000	311018001600
GZD-1000*3600	500	150	5.5*2	5	3895	1000*3600	385019501630
GZD-1100*4200	580	240	5.5*2	5	4170	1100*4200	440020501660
GZD-1100*4900	580	280	7.5*2	5	4520	4900*1100	520020501700
GZD-1300*4900	650	450	11*2	5	5200	4900*1300	520023501750
GZD-1500*5600	1050	450-800	12*2	10	7500	1500*5600	570020001750
ZSW-380*95	500	96-160	11	0	4082	3800*960	392016401320
ZSW-490*110	630	120-280	15	0	5352	4900*1100	498018301320
ZSW-600*130	750	400-560	22	0	7800	6000*1300	608225802083
ZSW-600*150	800	500-700	30	0	10190	600*1500	608626601912
ZSW-600*180	800	700-1000	37	0	13750	600*1800	631032622230

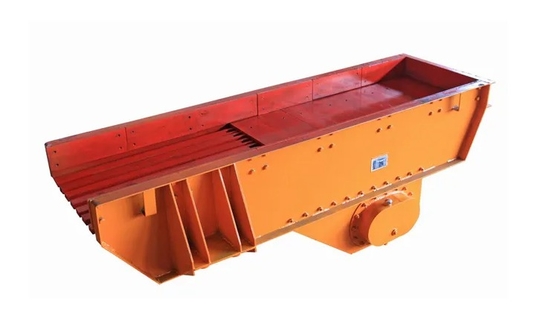

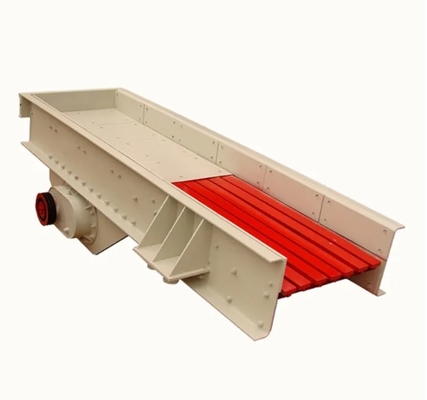

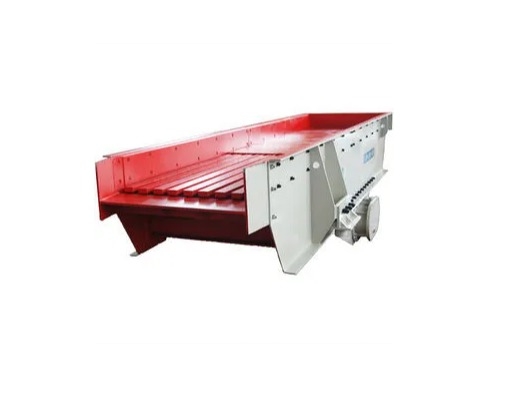

Product Display Of Conveying Hoisting Machine

Conveying Hoisting Machine

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
