Mining Equipment Multi-Rope Friction Mine Hoist Suitable For Coal And Metal Mine

Large Image : Mining Equipment Multi-Rope Friction Mine Hoist Suitable For Coal And Metal Mine

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Conveying Hoisting Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Multi-Rope Winding Mine Hoist	Condition:	New
Type:	Conveying Hoisting Machine	Application:	Cement Industry, Metallurgy Industry, Chemical Industry
Warranty:	12 Months	Uasge:	Building Materials, Chemical
Port:	Qingdao China	Application Industry:	Cement Plant, Steel Mill, Chemical Plant & Incinerator

Mining Equipment Multi-Rope Friction Mine Hoist Suitable For Coal And Metal Mine

Technical characteristics of the hoist

According to the number and structure of drums, there are three types of single drum, double drum and separable drum. It is reliable, simple in structure, only suitable for shallow Wells and medium-depth mines, and the terminal load can not be too large. In deep Wells and when the terminal load is large, the diameter of the lifting wire rope and the hoisting drum is large, resulting in a large volume and a surge in gravity, which makes the lifting wire rope and the hoisting machine in the manufacturing, transportation and use of a lot of inconvenience. Therefore, to a certain extent, the use of single-rope winding elevator in deep well conditions is limited.

Mine hoist is mainly composed of working mechanism, braking system, mechanical transmission system, lubrication system, observation and operation system and dragging, control and safety protection system.

Product Parameters

Model	Guide wheel diameter	Wirerope					Max Up speed	Reduction drive		Displacement weight of rotating part (except motor and guide wheel)

		Maximum static tension	Maximum static tension difference	Directed warenshisu Major diameter	Undirected warenshisu Major diameter	separation distance


	m	kN		mm			m/s	Model	velocity ratio	t
JKM-1.3×4(Ⅰ)E		100	25		16.5	200	5	XP550	11.5	2.1
JKM-1.6×4(Ⅰ)E		150	40		19.5		8	XP560	7.35	4
JKM-1.85×4(Ⅰ)E		210	60		23		10	XP800	10.5	5.8
JKM-2×4(Ⅰ)E	2	230	65	20	24		10	XP800	11.5	5.7
		180	55
JKM-2.25×4(Ⅰ)E	2	215	65	22	28		10	XP800		6.5
JKM-2.8×4(Ⅰ)E	2.5	335	100	28		250	14	XP1000		9.1
JKM-2.8×4(Ⅱ)E								P₂H630		10
JKM-2.8×6(Ⅰ)E	2.5	500	140	28			14	XP1120		15.8
JKM-2.8×6(Ⅱ)E								P₂H800		17.8
JKM-2.8×6(Ⅲ)E										14
JKM-3.25×4(Ⅰ)E	3	450	140	32		300	14	XP1120	7.35	13.36
JKM-3.25×4(Ⅱ)E								P₂H800	10.5	15.74
JKM-3.5×6(Ⅰ)E	3	790	220	35		300	14	XP1250	11.5	22.85
JKM-3.5×6(Ⅱ)E								P₂H900		25.6
JKM-3.5×6(Ⅲ)E										21
JKM-4×4(Ⅰ)E	3.2	690	180	39.5		300	14	XP1250	7.35	18.5
									10.5
JKM-4×4(Ⅱ)E								P₂H900	11.5	24.7
JKM-4×4(Ⅲ)E										16
JKM-4×6(Ⅲ)E	3.2	1030	270	39.5		300				22
JKM-4.5×6(Ⅲ)E	3.6	1330	340	45		300	16			30
JKM-5×6(Ⅲ)E	4	1600	420	50		300

Product Display

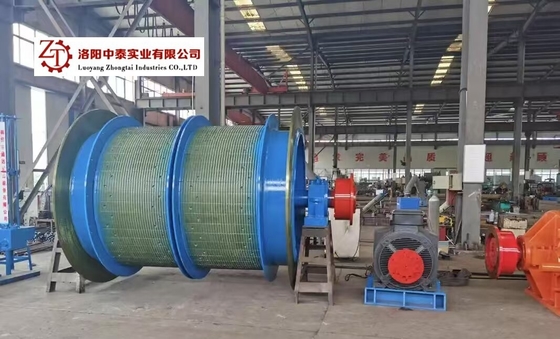

Mining Equipment Multi-Rope Friction Mine Hoist Suitable For Coal And Metal Mine 0

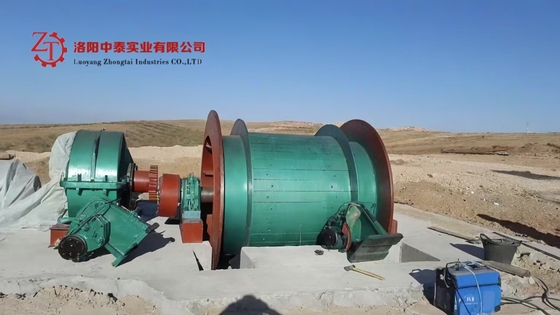

Mining Equipment Multi-Rope Friction Mine Hoist Suitable For Coal And Metal Mine 1
