Easy To Maintain Horizontal Hoist Single Rope Winding Mine Hoist

Easy To Maintain Horizontal Hoist Single Rope Winding Mine Hoist

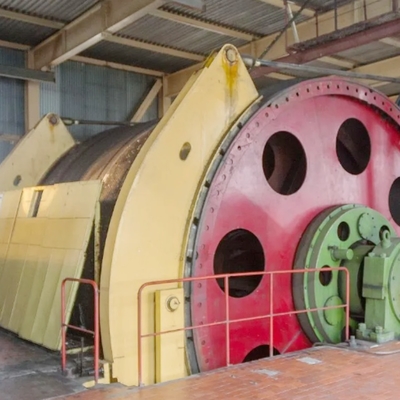

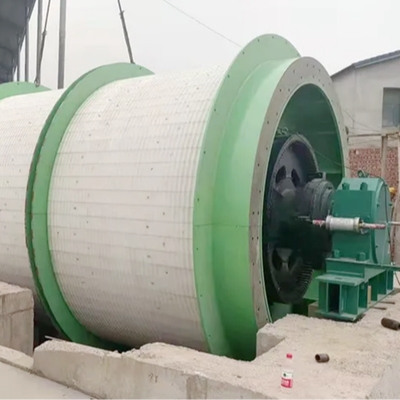

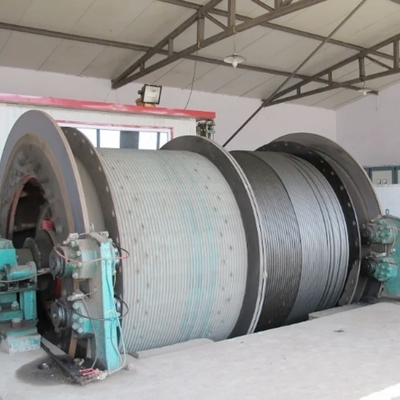

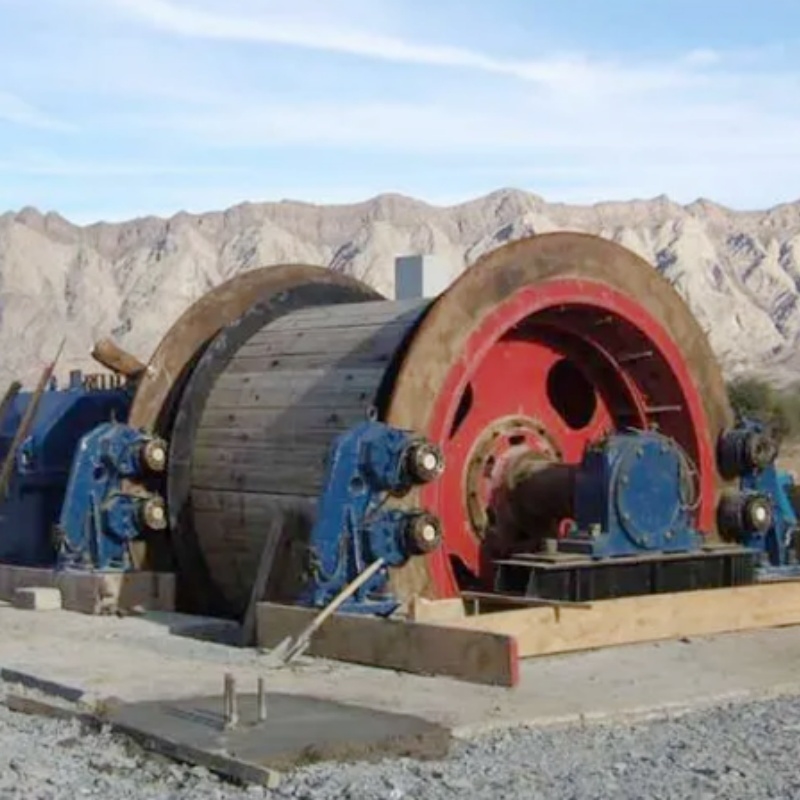

Single-rope winding mine hoist is a device used to raise or lower personnel, materials, and equipment in mines.

Main Features
Simple Structure: Consisting of a main shaft assembly, reducer, brake, depth indicator, and electronic control system, the machine boasts a relatively simple mechanical structure and easy maintenance.
High Reliability: Manufactured using high-quality materials and advanced processes, key components such as the main shaft and drum undergo rigorous inspection and flaw detection to ensure equipment reliability.
Safety: Equipped with a disc brake and hydraulic station for precise braking, it features a safety protection system, including a depth indicator and tachometer generator, to ensure safe operation.
Wide Application: Suitable for vertical or inclined shafts in coal, metal, and non-metallic mines, single- or double-drum configurations are available as needed.

Advantages and Disadvantages of Single-Rope Winding Mine Hoists

Advantages

• Reliable principle with a long history of use;
• Single wire rope with a container eliminates the issue of uneven wire rope tension;
• Minimal tension fluctuations on the wire rope;
• Adjustable relative rope lengths between the two drums, suitable for multi-level hoisting. ⑤ A single wire rope makes hanging, adjustment, maintenance, and replacement simple and convenient.

Disadvantages

• Due to the weight of the wire rope, it is not suitable for deep well hoisting.
• For equipment of the same specifications, the hoisting capacity is low.
• Equipment specifications are significantly affected by well depth, resulting in rope capacity issues.
• There is a possibility of wire rope breakage. When carrying containers on a single wire rope, a fall arrester must be installed.
• The wire rope has a twist direction and may loosen, causing the container ears to exert pressure on the tank channel.

Product parameters of single rope winding mine hoist of Conveying Hoisting Machine

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
