High Temperature Refractory Bricks Clay / High Alumina Lining Bricks

High Temperature Refractory Bricks Clay / High Alumina Lining Bricks

Large Image :  High Temperature Refractory Bricks Clay / High Alumina Lining Bricks

Product Details:
Place of Origin: Henan China
Brand Name: ZTIC
Certification: ISO\CE
Model Number: Fire brick
Payment & Shipping Terms:
Minimum Order Quantity: ≥1 Tons
Price: negotiated
Packaging Details: Standard packing or according to customer's requirement
Detailed Product Description
Shape: Brick Material: Clay
SiO2 Content (%): 10% Al2O3 Content (%): 10%
MgO Content (%): 10% CrO Content (%): 10%
CaO Content (%): 10% Port: Qingdao China

High Temperature Refractory Bricks Clay / High Alumina Lining Bricks



Physical and Chemical Properties
1. Wear Resistance:
2. Thermal Conductivity: The rate of heat flow through a material per unit area under a unit temperature gradient, related to porosity.
3. Impact Resistance: Self-explanatory: Good impact resistance means a longer service life.
4. Slag Resistance: The ability to withstand the erosion of molten slag at high temperatures without damage.



Product Introduction
High-alumina refractory bricks are composed of corundum, mullite, and glass phases. The content of these phases depends on the Al₂O₃/SiO₂ ratio and the type and amount of impurities. Refractory bricks are graded based on Al₂O₃ content. The raw materials are natural high-alumina bauxite and sillimanite ores. Some bricks also contain fused corundum, sintered alumina, synthetic mullite, or clinker calcined with varying ratios of alumina and clay. They are primarily produced by the sintering process. However, other products include fused-cast bricks, fused-granular bricks, unfired bricks, and monolithic bricks. High-alumina refractory bricks are widely used in the steel, nonferrous metals, and other industries.

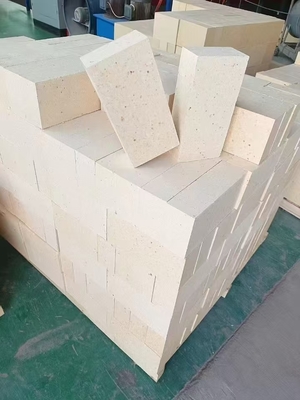

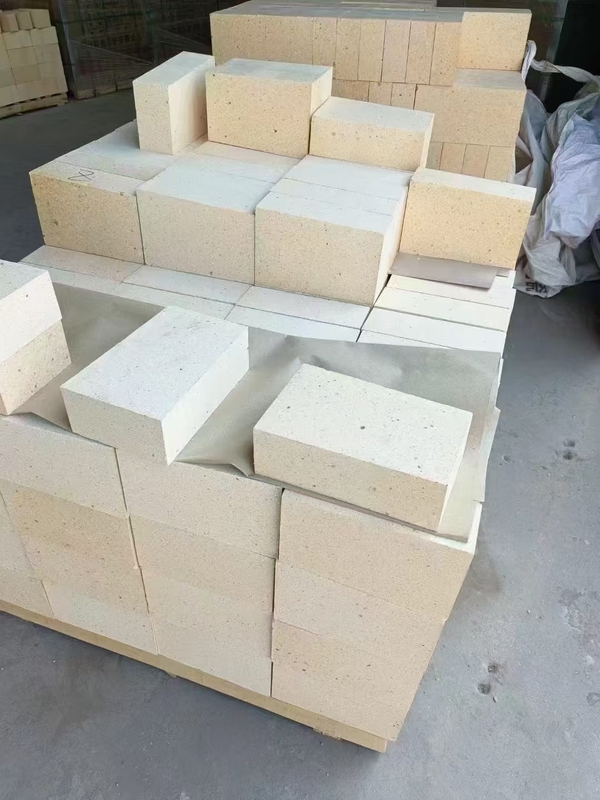

Product Display

High Temperature Refractory Bricks Clay / High Alumina Lining Bricks 0

High Temperature Refractory Bricks Clay / High Alumina Lining Bricks 1



Product Parameters

SK series SK30 SK32 SK34 SK35
Al2O3 30%-35% 35%-38% 38%-42% 42%-50%
Item 33% Al2O3 38% Al2O3 42% Al2O3 48% Al2O3
  fire clay brick fire clay brick fire clay brick fire clay brick
Al2O3 33% 38% 42% 48%
Fe2O3/% ≤3 ≤3 ≤3 ≤2.5
Refractoriness ≥1690 °C ≥1730 °C ≥1750 °C ≥1750 °C
Bulk density/g/cm3 1.9-2.0 2.0-2.1 2.1-2.18 2.15-2.3
Unit weight (230*114*65mm) ≥3.35KGS ≥3.55KGS 3.65KGS ≥3.75KGS
Apparent porosity/% ≤26 ≤24 ≤24 ≤22
Cold crushing strength ≥20Mpa ≥25Mpa ≥30Mpa ≥35Mpa
Refractoriness under load ≥1250 °C ≥1300 °C ≥1350 °C ≥1420 °C
Reheating Linear Change/% 0~ -0.5 0~ -0.3 0~ -0.4 +0.1~ -0.4
  (1350°C,2h) (1350°C,2h) (1450°C,2h) (1450°C,2h)
