870 Type Diaphragm Filter Press Sand Washing Mud Treatment Equipment
Product Introduce
The high pressure program controlled membrane filter press adopts internationally leading TPE diaphragm technology. Long specific service life, good membrane shrinkage, strong acid and alkali resistance, suitable for various industries. Air pressure or water pressure can be used for pressing, and the water pressure can reach 0.8-4.0 MPa.
Product Feature
Variable filter chamber technology is widely used in solid-liquid separation applications in various industries such as petrochemical, mining and metallurgy, food and medicine, coal washing, papermaking, pigment dyes, new energy lithium batteries, photovoltaics, fly ash desalination, etc., greatly improving production efficiency and reducing filter cake moisture content. The pressure level is divided into conventional diaphragm pressing of 0.8-1.6Mpa, and ultra-high pressure diaphragm pressing can choose different pressure level equipment of 2.0-4.0Mpa to meet the needs of different working conditions.
The application of high-pressure dewatering technology in the municipal domestic sludge dewatering industry reduces the moisture content of the filter cake to the lowest level that meets the standards for landfill and incineration (with municipal sludge achieving a moisture content of 35%
-60%). Compared to traditional dewatering equipment, it achieves sludge reduction treatment.
The dehydration system can achieve automated operation, and can be equipped with filter cake auxiliary discharge system, filter cloth online flushing system, and automatic valve instrument, etc., which can achieve unmanned operation.

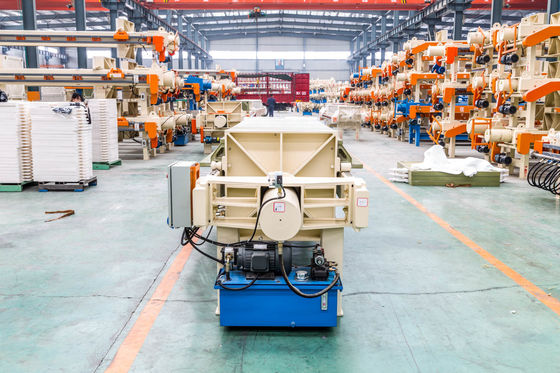

Product Display
Product Parameters
| Model |
Filter area(m²) |
Plate size(mm) |
Cake thickness(mm) |
Filter chamber volume(L) |
Plate NO.(pcs) |
Filtration pressure(Mpa) |
Motor Power(kw) |
Weight(kg) |
Dimensions L*W*H(mm) |
Foundation Size(mm) |
| L |
B |
D |
H |
| X |
A |
G30/870-U |
B |
30 |
870*870 |
≤35 |
498 |
23 |
≤0.8 |
2.2 |
3046 |
3880*1350*1230 |
2920 |
700 |
1270 |
785 |
| M |
K |
| X |
A |
G40/870-U |
B |
40 |
623 |
29 |
3593 |
4270*1350*1230 |
3300 |
| M |
K |
| X |
A |
G50/870-U |
B |
50 |
789 |
37 |
4057 |
4790*1350*1230 |
3820 |
| M |
K |
| X |
A |
G60/870-U |
B |
60 |
955 |
45 |
4597 |
5310*1350*1300 |
4340 |
| M |
K |
| X |
A |
G70/870-U |
B |
70 |
1121 |
53 |
5136 |
5830*1350*1230 |
4860 |
| M |
K |
| X |
A |
G80/870-U |
B |
80 |
1287 |
61 |
5636 |
6350*1350*1230 |
5380 |
| M |
K |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
