Fully Automatic Candle Filter Press Self-Cleaning Slag Discharge

Large Image : Fully Automatic Candle Filter Press Self-Cleaning Slag Discharge

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Cement Plant Equipments

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Cartidge QTY:	7-190	Cartridge Size:	90500-901000
Filter Area(m²):	1-60	Capacity:	2.2-132
Housing Volume(L):	140-5700	Inlet(DN):	25-150
Housing Diameter(mm):	4563-222010	Total Height(mm):	1448-3100
Port:	Qingdao China	Condition:	New
Warranty:	12 Months

Fully Automatic Candle Filter Press Self-Cleaning Slag Discharge

Product Introduction
Candle filter is an efficient filtration equipment commonly used for solid-liquid separation, widely used in fields such as chemical, pharmaceutical, food, beverage, water treatment, etc. Its core component is the "candle filter element", named after its shape resembling a candle. This device drives liquid through the filter material under pressure to remove suspended solids, impurities, and particles, achieving the purpose of clarification or purification.

The candle filter is mainly composed of a cylinder, a filter element, inlet and outlet pipelines, and a sewage outlet. The cylinder is generally a closed pressure vessel, with multiple vertically arranged candle filter elements installed inside. The filter element consists of a porous support tube and a filter cloth or mesh wrapped around it. Liquid passes through the filter material under pressure, while solid particles are trapped on the surface of the filter material.

Product Display

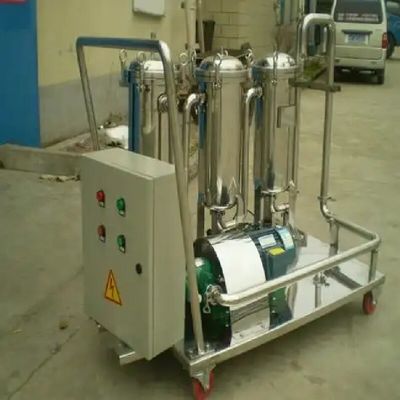

Fully Automatic Candle Filter Press Self-Cleaning Slag Discharge 0

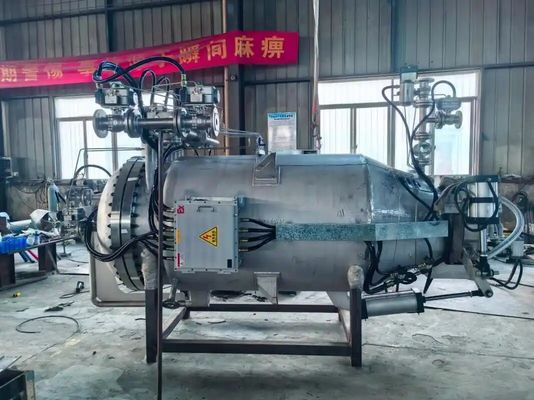

Fully Automatic Candle Filter Press Self-Cleaning Slag Discharge 1

Product Parameters

Model	Cartidge QTY	Cartridge Size	Filter area(m²)	Capacity	Housing Volume(L)	Inlet(DN)	Cake Discharging Outlet(DN)	Housing Diameter(mm)	Total Height(mm)	Height of Housing(mm)	Height of Waste Discharging Oulet(mm)	Dimension(mm)
DZZS-1	7	90*500	1	2.2	140	25	150	456*3	1902	1448	500	￠1000
DZZS-1.5	10	90*500	1.5	3.3	180	25	200	508*4	1928	1474	500	￠1000
DZZS-2	7	90*1000	2	4.4	220	32	150	456*3	2402	1948	500	￠1200
DZZS-3	10	90*1000	3	6.6	280	40	200	508*4	2428	1974	500	￠1200
DZZS-4	14	90*1000	4	8.8	400	40	200	608*4	2502	1868	500	￠1300
DZZS-6	19	90*1000	6	13.2	560	50	250	708*5	2578	1944	500	￠1400
DZZS-8	24	90*1000	8	18	740	65	250	808*5	2644	2010	500	￠1500
DZZS-12	40	90*1000	12	26	1200	65	300	1010*5	2854	2120	600	1300*1440
DZZS-18	64	90*1000	18	40	1800	80	400	1212*6	2904	2170	600	1400*1540
DZZS-30	106	90*1000	30	66	3000	100	500	1616*8	3440	2840	600	1800*1940
DZZS-40	140	90*1000	40	88	3815	150	500	1820*10	3560	2960	600	2000*2140
DZZS-60	190	90*1000	60	132	5700	150	500	2220*10	3700	3100	600	2400*2540
