Mechanical Compression Filter Press, Manual Hydraulic Dual-Mode

Large Image : Mechanical Compression Filter Press, Manual Hydraulic Dual-Mode

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Cement Plant Equipments

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated

Contact Now

Detailed Product Description

Area(m²):	15-120	Plate Size(mm):	700*700
Cake Thickness(mm):	30	Filter Chamber Volume(L):	226-1816
Plate Qty(pcs):	18-69	Filtration Pressure (Mpa):	≥0.6
Motor Power(Kw):	2.2-4	Weight(Kg):	1725-6776
Port:	Qingdao China	Condition:	New
Warranty:	12 Months

Mechanical Compression Filter Press, Manual Hydraulic Dual-Mode

Product Introduction

Mechanical filter press presses filter plates by gearing ,which is driven by motor the screw, which is driven by motor via gearbox. The pressing screw and lock nut are self-locked design, to secure the liability and stability while pressing. To avoid overheat or overload of the motor, electronic motor protector utilizes to control automatically.

Introduction

Mechanical compression filter press is a solid-liquid separation equipment that uses mechanical devices (such as screw jacks or screw mechanisms) to provide compression force. Its core feature is to replace hydraulic systems with mechanical locking, with a simple structure and easy maintenance.

Product Display

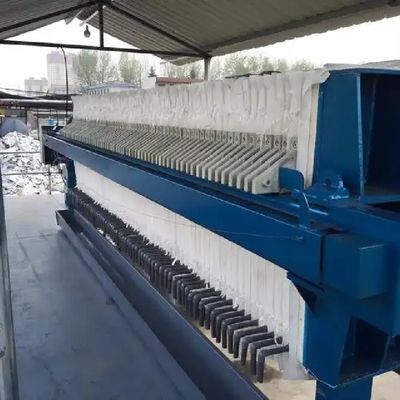

Mechanical Compression Filter Press, Manual Hydraulic Dual-Mode 0

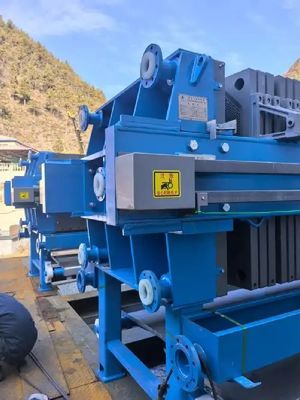

Mechanical Compression Filter Press, Manual Hydraulic Dual-Mode 1

Product Parameters

Model				Area(m²)	Plate size(mm)	Cake thickness(mm)	Filter chamber volume(L)	Plate Qty(pcs)	Filtration pressure (Mpa)	Motor Power(Kw)	Weight(Kg)	Dimensions(mm)	Foundation Size (mm)
													L	B	D	H
X	A	J15/630-30U	B	15	700×700	30	226	18	≥0.6	2.2	1725	2700×1050×1050	1910	560	910	700
	M		K
X	A	J20/630-30U	B	20			297	24			1993	3000×1050×1050	2210
	M		K
X	A	J30/630-30U	B	30			452	37			2360	3650×1050×1050	2860
	M		K
X	A	J40/630-30U	B	40			595	49			2788	4250×1050×1050	3460
	M		K
X	A	J30/870-30U	B	30	870×870 可选800		460	23	≥0.6	3	2580	3325×1400×1250	2350	700	1270	785
	M		K
X	A	J40/870-30U	B	40			595	30			2925	3710×1400×1250	2730
	M		K
X	A	J50/870-30U	B	50			749	38			3318	4150×1300×1250	3170
	M		K
X	A	J60/870-30U	B	60			902	46			3712	4590×1300×1250	3610
	M		K
X	A	J70/870-30U	B	70			1056	54			4106	5060×1300×1250	4050
	M		K
X	A	J80/870-30U	B	80			1210	62			4561	5470×1300×1250	4490
	M		K
X	A	J50/1000-30U	B	50	1000×1000		752	28	≥0.6	4	4172	4030×1400×1360	2900	780	1400	870
	M		K
X	A	J60/1000-30U	B	60			908	34			4468	4390×1400×1360	3260
	M		K
X	A	J70/1000-30U	B	70			1063	40			4863	4750×1400×1360	3620
	M		K
X	A	J80/1000-30U	B	80			1219	46			5259	5110×1400×1360	3980
	M		K
X	A	J100/1000-30U	B	100			1505	57			5985	5770×1400×1360	4640
	M		K
X	A	J120/1000-30U	B	120			1816	69			6776	6490×1400×1360	5360
	M		K
