Environmentally Friendly Safe Easy To Maintain Raymond Mill

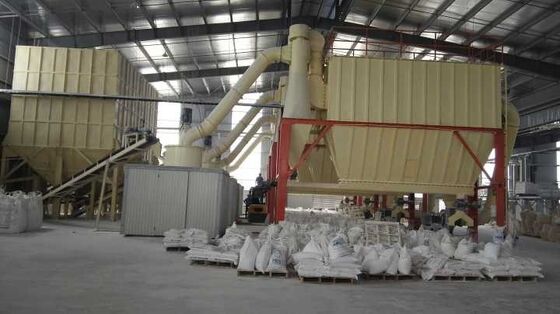

Large Image : Environmentally Friendly Safe Easy To Maintain Raymond Mill

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Ore Grinding Mill

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	$2,000.00 - $20,000.00 / Set
Packaging Details:	Simple packaging for coal raymond mill
Delivery Time:	1-2months
Payment Terms:	T/T, L/C
Supply Ability:	2000 Set/Sets per Year

Contact Now

Detailed Product Description

Classification:	Ore Grinding Mill	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Condition:	New	Motor Type:	AC Motor
Particle Size Of Feed:	≤30mm	Particle Of Finished Product:	0.125- 0.044mm
Warranty:	12 Month	The Machines Classification:	Granding Mill Machine
Shift Output At Different Material Fine Degree:	16-120t	Rotate Speed Of Central Shaft:	82r/min
Port:	Qingdao

Environmentally Friendly Safe Easy To Maintain Raymond Mill

Product Description

Raymond mill (also known as Raymond mill, pendulum mill) is a dry powder making equipment based on the "ring-roller" grinding principle. It is widely used in metallurgy, chemical industry, building materials and other industries.

Structural advantages of Raymond mill
1. The main engine transmission system adopts a closed transmission device and pulleys to ensure smooth transmission and reliable operation.

2. The entire factory has a vertical structure, which is highly systematic and occupies a small area. The crushing, grinding and packaging of raw materials are an independent production system.

3. The electronic control system is centralized and has a high degree of automation, requiring no personnel in the operating room.

4. The main components of the entire factory are made of high-quality steel castings. Exquisite craftsmanship ensures the durability of the entire factory.

5. Compared with other grinding equipment, its qualification rate reaches 99%, which cannot be achieved by other grinding machines.

Data parameters of Ore Grinding Mill

Model	6R4525	5R4119	4R3216	3R90	3R85	3R75	3R65	3R60
Model	6R4525	5R4119	4R3216	4R90	4R85	3R75	3R65	3R60
Particle size of feed (mm)	≤30	≤25	≤25	≤25	≤20	≤20	≤15	≤15
Particle of finished product(mm)	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044
shift output at different material fine degree(t)	16-120	8-60	4-45	3-35	2-28	1.5-20	1-18	0.5-8
Rotate speed of central shaft (r/min)	82	105	130	160	160	160	180	280
Inner diameter of pulverzing ring (mm)	1770	1400	1073	973	885	865	725	495
Diameter of pulverizing roller(mm)	450	410	320	300	270	260	210	140
Height of pulverizing ring(mm)	250	190	160	160	150	150	150	100
Main motor	y315m- 4-132	y280s- 4-75	y225s- 4-37	y225m- 8-30	y225m- 8-22	y225s- 8-18.5	y200L- 8-15	y160m- 6-7.5
Fan motor	y315m- 4-132	y250m- 4-75	y200L- 4-37	y180m- 4-22	y160L- 4-15	y160L- 4-15	y160m- 4-11	y132s- 2-5.5
Analyzer motor	y160m- 4-11	yc200- 4B-7.5	yc120- 4a-5.5	y112m- 6-2.2	y112m- 6-2.2	y112m- 6-202	y112m- 6-2.2	y90L- 6-1.1

Product Display of Ore Grinding Mill

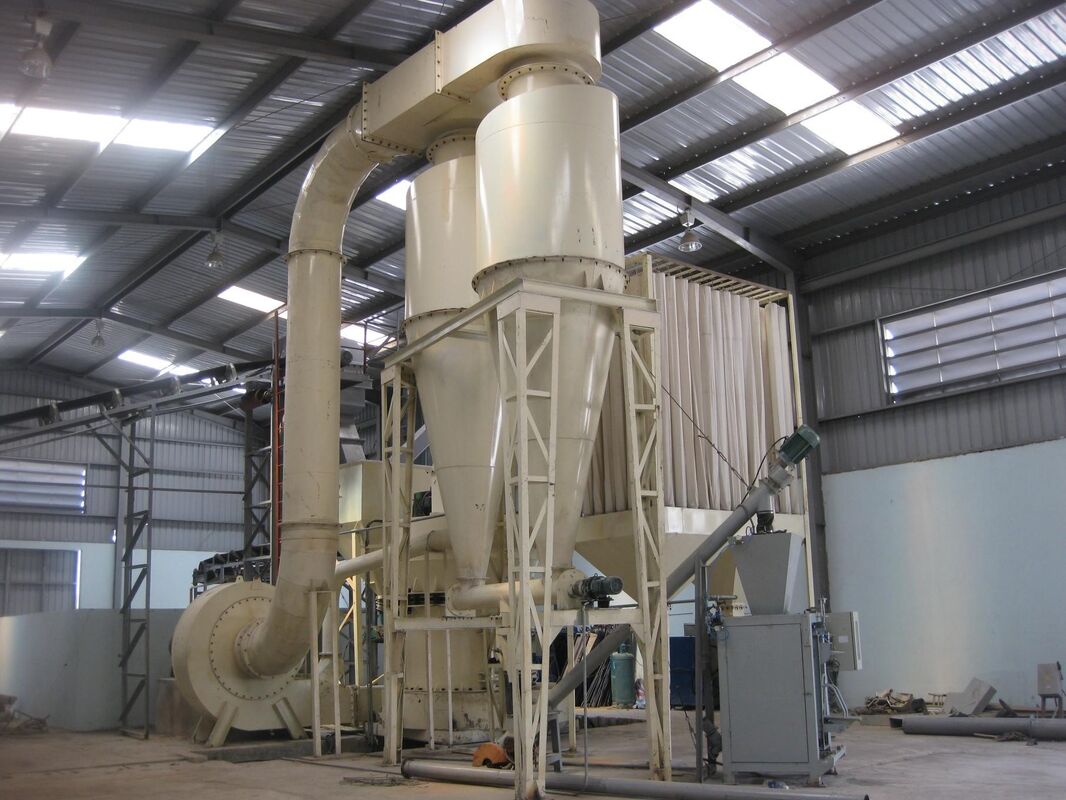

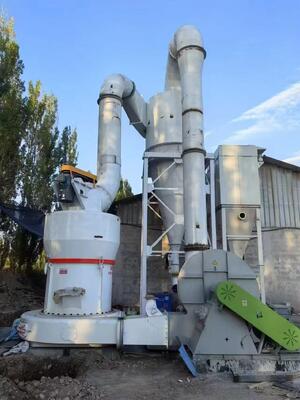

Environmentally Friendly Safe Easy To Maintain Raymond Mill 0

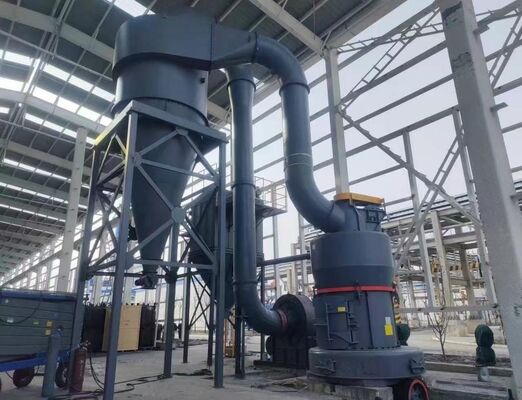

Environmentally Friendly Safe Easy To Maintain Raymond Mill 1

Ore Grinding Mill

Our Services

Aftersales service

Luoyang Zhongtai Industries Able To Provide:
1. Engineered Spares - Design And Manufacturing
2. Large Volume Steel And Iron Casting Foundaries
3. Huge Machine Shop Capabilities
4. Training Programmes
5. Preventative Maintenance Programs
6. Prevetative Maintenance Services
7. Comprehensive Maintenance Programs
Luoyang Zhongtai Industries’S Field Service Engineers Are Trained Specifically In The Luoyang Zhongtai Industries Brand Group Products But Are Capable Of Undertaking The Servicing Of Other Oem Brands.
Our Technicians Are Equipped With The Most Advanced Technological Diagnostic Equipment Available To Trouble Shoot Your Equipment To Optimise Performance And Minimise Down Time.
Luoyang Zhongtai Industries Also Has An Extensive Capability In Supplying All You Consumable And Electrical/ Mechanical Spare Part Needs.

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
