Long Service Life Easy Installation And Maintenance Ultra Fine Grinding Mill
The ultra-fine grinding mill is a high-performance, specialized equipment for ultra-fine powder processing. It can directly replace traditional Raymond mills, achieving stable mass production of ultra-fine powder. The fineness of the finished product can be freely adjusted from 80 mesh to 1500 mesh, precisely matching different production needs.
The equipment features a high-quality grinding system with significant core advantages: low operating noise and vibration, optimizing the working environment; high grinding pressure and high fine powder output rate, improving production efficiency; uniform wear of grinding rings and rollers, resulting in a service life 3-5 times longer than ordinary Raymond mills, reducing equipment wear and tear costs; capable of processing hard materials with a hardness of ≤9.3, and the finished micro-powder has a low iron content, ensuring powder purity.
At the same time, the equipment operates stably and supports continuous operation. Lubrication can be directly added to the roller bearing chamber during operation without interrupting production; it has low energy consumption and high grinding efficiency, and installation and daily maintenance are convenient; the mill has a shovel-free feeding design, significantly reducing equipment failure rate and downtime for maintenance.
This equipment is widely used for the high-fineness powder processing of non-metallic minerals with a moisture content of ≤6%, such as barite, calcite, limestone, kaolin, bentonite, marble, and gypsum. It is the preferred equipment for ultra-fine powder production in industries such as refractory materials, glass, and ceramics.

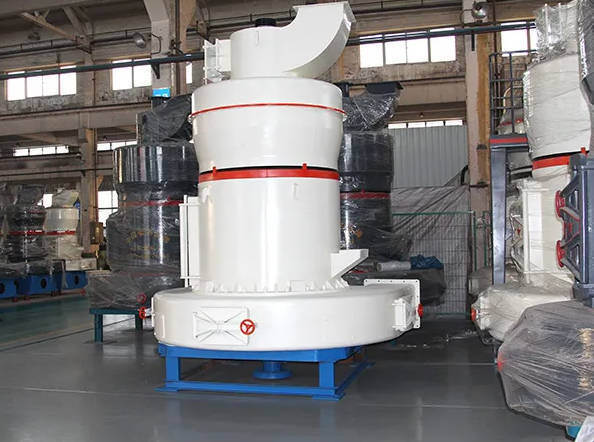

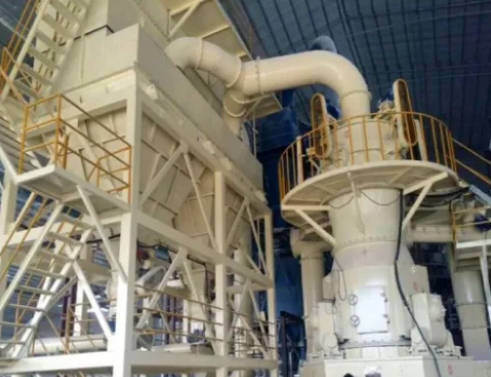

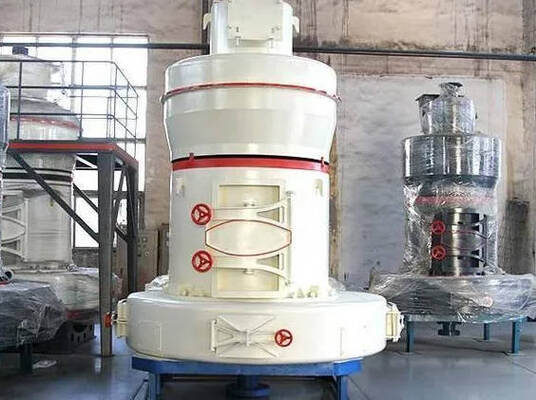

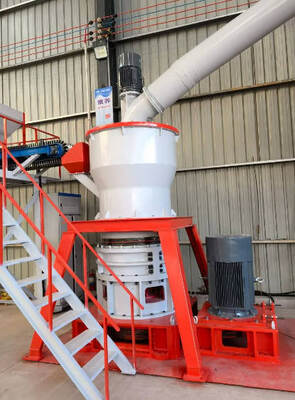

Product Display Of Ore Grinding Mill
Technical Parameters of Ore Grinding Mill
| Model |
LXM820 |
LXM1120 |
LXM1300 |
LXM1550 |
LXM1700 |
LXM1900 |
LXM2200 |
LXM2300 |
| Grinding disc diameter (mm) |
820 |
1120 |
1300 |
1550 |
1700 |
1900 |
2200 |
2300 |
| Production capacity(t/h) |
1~5 |
6~10 |
16~20 |
22~28 |
30~38 |
36~43 |
70~90 |
95~115 |
| Particle size of material entering the mill(mm) |
0~25 |
0~30 |
0~35 |
0~45 |
0~50 |
0~55 |
0~60 |
0~65 |
| Product Moisture(%) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
| Total motor power(kw) |
55 |
110 |
220 |
315 |
400 |
500 |
710 |
800 |
| Equipment weight(t) |
16 |
27 |
45 |
75 |
90 |
115 |
160 |
|
|
Ore Grinding Mill
