New Type Of Environmentally Friendly Highly Efficient Vertical Mill For Steel Slag Nickel Slag
Applicable Scenarios: Large-scale production of steel slag micro-powder in industrial and mining enterprises such as cement plants, grinding stations, and steel plants.
Equipment Introduction: The steel slag vertical mill is a new type of dedicated production equipment for steel slag micro-powder, integrating crushing, conveying, grinding, and drying. With environmental protection and high efficiency as its core features, it is the preferred equipment for the comprehensive utilization of steel slag resources. The equipment boasts excellent grinding efficiency, with a system-wide power consumption of ≤50 kWh/t, and the finished steel slag powder can reach a specific surface area of 4500~5000 cm²/g. Its outstanding performance indicators make it suitable for industrial-scale production needs.
Working Principle: The material falls into the center of the grinding disc through the feeding pipe. The material, rotating at a constant speed with the grinding disc, is evenly dispersed and spread outwards by centrifugal force, forming a stable material bed. It is then crushed by multiple grinding rollers on the grinding disc. Driven by continuous centrifugal force, the material constantly moves towards the outer edge of the grinding disc. After leaving the grinding disc, it meets the hot airflow entering the mill through the air ring and rises with the airflow. During the ascent, sufficient heat exchange occurs, rapidly evaporating moisture. Subsequently, the material enters the separator in the middle shell of the mill with the hot airflow. The classifier precisely controls the fineness of the finished product. Coarse particles that do not meet the standard are separated and fall back onto the grinding disc for re-grinding, while the finished product meeting the fineness requirements is collected by the classifier, completing one grinding cycle.
Technical Parameters of Ore Grinding Mill
| Model |
Mill diameter (mm) |
Roller diameter
(mm)
|
Quantity of grinder roll (n) |
Power (kW) |
Production(t/h) |
| LKMS33.31 |
3300 |
1700 |
3 |
1600 |
45 |
| LKMS35.41 |
3500 |
1800 |
4 |
1800 |
60 |
| LKMS40.41 |
4000 |
1900 |
4 |
2240 |
70 |
| LKMS43.41 |
4300 |
2120 |
4 |
2800 |
90 |
| LKMS46.41 |
4600 |
2240 |
4 |
3150 |
90 |
| LKMS48.41 |
4800 |
2240 |
4 |
3550 |
125 |
| LKMS50.41 |
5000 |
2360 |
4 |
3800 |
140 |
| LKMS53.41 |
5300 |
2500 |
4 |
4200 |
150 |
| LKMS56.61 |
5600 |
2500 |
6 |
5000 |
160 |

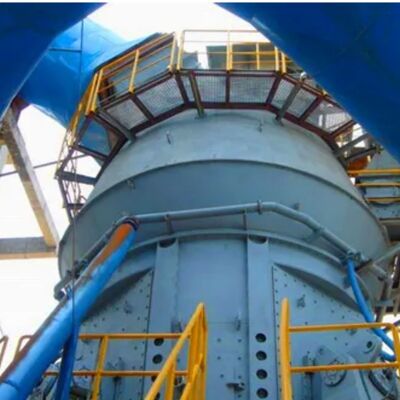

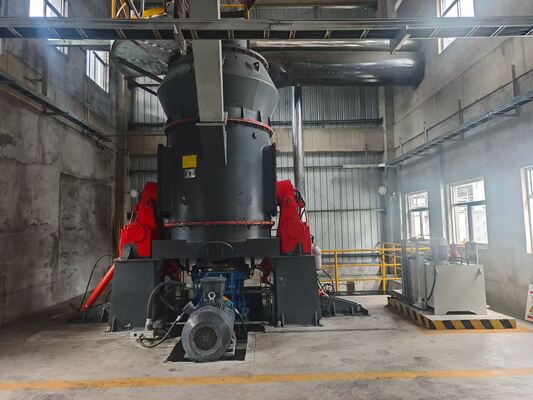

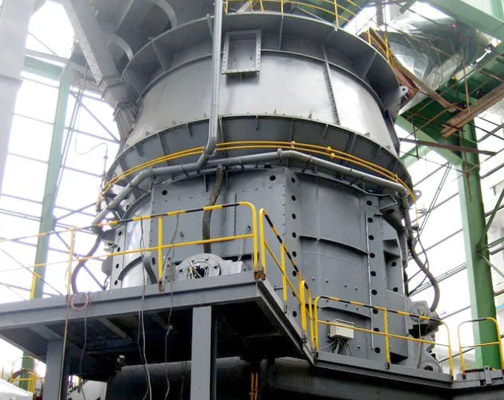

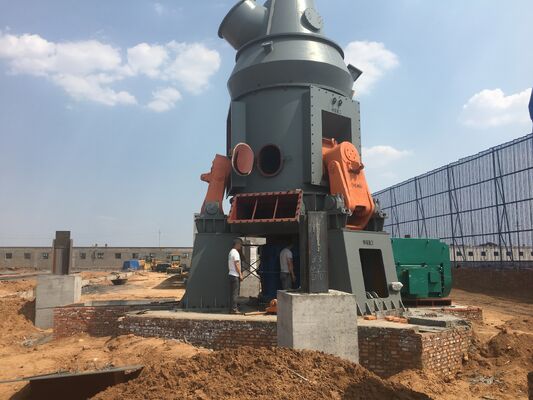

Product Display Of Ore Grinding Mill
Ore Grinding Mill
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
