Compact Structure Small Size Excellent Explosion Proof Performance Hydraulic Explosion Proof Lifting Machine
The JT(K)YB-*×*XP series hydraulic explosion-proof hoisting machine and winch is a high-end explosion-proof hoisting equipment integrating mechanical, electrical, and hydraulic systems. It is specifically designed for hazardous environments containing explosive gases such as methane-air mixtures and coal dust, and can safely and efficiently complete the hoisting and lowering of personnel and materials. It is a core equipment choice for high-risk scenarios such as mines.
This series of products offers two standard series: single-drum and double-drum, covering 18 standard specifications. Non-standard specifications can also be customized according to user needs to adapt to different working conditions. Currently, the product specifications cover a diameter range of 1.6 meters to 3 meters, fully meeting the hoisting needs of various mines.
In terms of transmission system design, the product uses an explosion-proof motor to directly drive a high-pressure variable pump, which drives multiple quantitative and variable hydraulic motors through a closed hydraulic circuit. The power is then transmitted through a planetary gear reducer to drive the main shaft and drum rotation, accurately adapting to various working conditions in hoisting operations and achieving stable transmission.
Core Technical Features
1. Excellent explosion-proof performance, suitable for high-risk environments
2. Precise stepless speed regulation, stable low-speed operation
3. Significant energy saving effect, optimized operating costs
4. Flexible parameter matching, ample selection space
5. Compact and small structure, saving infrastructure costs
6. Long service life, controllable overall cost
7. Simple and sensitive operation, improved work efficiency
8. Smooth heavy-load starting, upgraded safety performance
9. Safe and reliable operation, eliminating major hidden dangers
10. Complete safety protection, compliant with industry standards
11. Excellent braking performance, strong reliability
Applicable Working Conditions and Environment
The main unit is suitable for ambient temperatures ranging from 5℃ to 40℃; the electrical control system is suitable for altitudes not exceeding 1500 meters (special customization is available for altitudes above 1500 meters). In environments with a relative humidity of ≤95% (25℃), it must have the ability to be waterproof and prevent liquid from entering the electrical components. It should also avoid severe vibration, corrosive gases, and other harsh conditions. In addition, the use of the equipment must comply with other requirements specified in the instruction manuals of the respective equipment manufacturers.
Product Parameters of Conveying Hoisting Machine
| product model |
reel |
Maximum lifting height (rope maximum diameter) |
wirerope |
Maximum lifting speed |
Main motor power |
Maximum working pressure of main oil circuit |
Number of hydraulic motors |
| quantity |
diameter |
wide |
No.1 |
No.2 |
No.3 |
Maximum static tension |
Maximum static tension difference |
maximum diameter |
| mm |
m |
KN |
KN |
mm |
m/s |
KW |
MPa |
per |
| JKYB－3×2.2XP |
1 |
3000 |
2200 |
471 |
981 |
1539 |
120 |
120 |
36 |
4.5 |
≤800 |
32 |
≤6 |
| JKYB－3×2.5XP |
2500 |
546 |
1131 |
1767 |
| 2JKYB－3×1.5XP |
2 |
3000 |
1500 |
298 |
630 |
1008 |
120 |
120 |
36 |
4.5 |
≤800 |
≤6 |
| 2JKYB－3×1.8XP |
1800 |
372 |
780 |
1235 |
| JKYB－2.5×2XP |
1 |
2500 |
2000 |
394 |
827 |
1300 |
90 |
90 |
32 |
4 |
≤400 |
≤4 |
| JKYB－2.5×2.3XP |
2300 |
463 |
967 |
1513 |
| JKYB－2.5×2.5XP |
2500 |
510 |
1060 |
1593 |
| 2JKYB－2.5×1.2XP |
2 |
2500 |
1200 |
209 |
453 |
734 |
90 |
90 |
32 |
4 |
≤400 |
≤4 |
| 2JKYB－2.5×1.5XP |
1500 |
278 |
593 |
946 |
| 2JKYB－2.5×2XP |
2000 |
394 |
827 |
1305 |
| JKYB－2×1.5XP |
1 |
2000 |
1500 |
276 |
588 |
934 |
60 |
60 |
26 |
3.5 |
≤280 |
≤3 |
| JKYB－2×1.8XP |
1800 |
343 |
724 |
1140 |
| 2JKYB－2×1XP |
2 |
2000 |
1000 |
163 |
362 |
590 |
60 |
60 |
26 |
3.5 |
≤200 |
≤3 |
| 2JKYB－2×1.25XP |
1250 |
220 |
475 |
762 |
| JTYB－1.6×1.2XP |
1 |
1600 |
1200 |
176 |
389 |
627 |
45 |
45 |
24 |
3 |
≤200 |
≤2 |
| JTYB－1.6×1.5XP |
1500 |
235 |
507 |
806 |
| 2JTYB－1.6×0.9XP |
2 |
1600 |
900 |
118 |
272 |
450 |
45 |
345 |
24 |
3 |
≤160 |
≤2 |
| 2JTYB－1.6×1.2XP |
1200 |
177 |
390 |
628 |

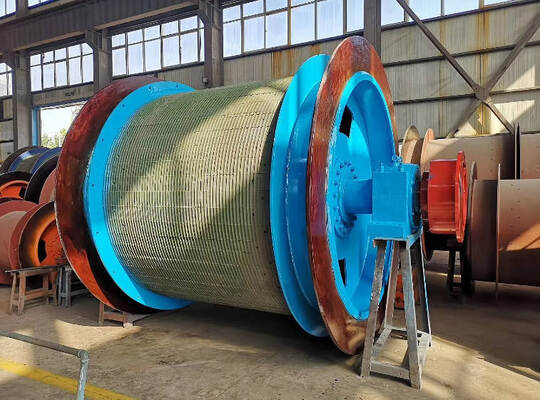

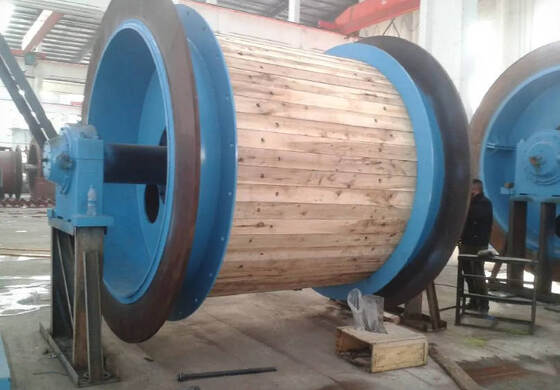

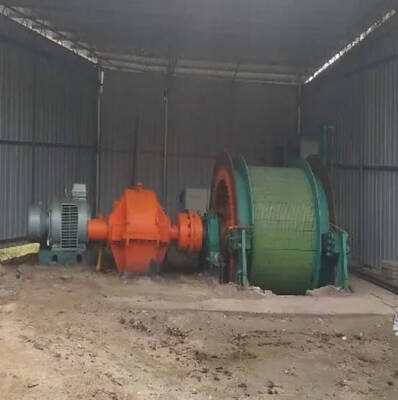

Product Display of Conveying Hoisting Machine
Conveying Hoisting Machine
