Multi-rope Friction Mine Hoist -JKM Tower Multi-Rope Friction Mine Hoist,JKMD Landing Multi-Rope Friction Mine Hoist
This hoist is engineered with a host of advanced technical features that ensure superior performance, safety, and adaptability for diverse industrial applications:
Flexible Drum Configurations
Available in integrated, two-piece and four-piece drum designs, the equipment can be tailored to meet the specific lifting requirements of different working scenarios, delivering strong compatibility and versatility.
Optimized Rope Groove Design
The drum rope grooves are available in multiple options: precision-machined spiral grooves, broken line grooves, or spiral grooves pressed on wooden/plastic liners. Equipped with steel rope transition devices between grooves, it effectively reduces rope wear and extends the service life of steel cables.
High-Efficiency & Reliable Braking System
Adopting rear-mounted cylinder disc brakes with electro-hydraulic joint control, the hoist is paired with two types of hydraulic stations: medium-low pressure and medium-high pressure.
Medium-low pressure hydraulic stations support two-stage braking modes: electrical delay constant braking force and hydraulic delay constant braking force.
Medium-high pressure hydraulic stations feature two-stage braking options: constant deceleration and constant braking torque.
Both types of hydraulic stations can be optionally equipped with pressure sensors and pressure relays for real-time pressure monitoring and intelligent control.
Stable Spindle-Drum Connection
The spindle and drum are connected via a large-torque planar friction structure, which ensures high torque transmission efficiency, stable operation, and easy maintenance, effectively avoiding the risks of deformation and loosening under heavy-load conditions.
Comprehensive Safety Monitoring & Protection
The signal monitoring device is composed of photoelectric encoders, synchros and low-speed tachogenerators. It provides full-range protection functions including overspeed alarm, overwinding prevention, depth indicator failure detection, brake shoe wear warning and spring fatigue monitoring, ensuring safe operation of the equipment at all times.
Humanized Console Design
The console comes in integrated and split-type models, both equipped with integrated signal lights, high-reliability electrical instruments and new-type integrated control handles. It features a digital depth indicator and a dual-mode depth indication system combining digital and lead screw-type displays. Dedicated platforms for industrial TV, computer and printer are reserved for intelligent management needs.
Durable Head Sheave Device
The head sheave adopts integrated or two-piece welded structure, supported by rolling bearings for smooth rotation. The wheel rim is fitted with PVC or nylon friction liners, which reduce friction resistance and noise, while enhancing wear resistance and operational stability.
Optional Intelligent Control System
The hoist can be optionally configured with a mine hoist network control and diagnostic system, enabling remote monitoring, fault diagnosis and data analysis. This helps to realize predictive maintenance, reduce downtime and improve overall operational efficiency.
Product parameters of Conveying Hoisting Machine
JKM tower multi-rope friction mine hoist
| Model |
Guide wheel diameter |
Wire rope |
Maximum lifting speed |
Reducer |
Displacement weight of rotating parts (except motor and guide wheel) |
Guide wheel displacement weight
|
Dimensions
(L×W×H) |
Note |
| Maximum static tension |
Maximum static tension difference between two wire ropes |
Maximum diameter with guide wheels
|
Maximum diameter without guide wheel
|
Interval |
| m |
kN |
mm |
m/s |
Model |
Velocity ratio |
t |
t |
m |
| JKM-1.3×4(Ⅰ)E |
|
100 |
25 |
|
16.5 |
200 |
5 |
XP550 |
11.5 |
2.1 |
|
6.4×6.5×1.6 |
|
| JKM-1.6×4(Ⅰ)E |
|
150 |
40 |
|
19.5 |
8 |
XP560 |
7.35
10.5
11.5 |
4 |
|
6.4×7×1.75 |
| JKM-1.85×4(Ⅰ)E |
|
210 |
60 |
|
23 |
10 |
XP800 |
5.8 |
|
7×7.5×2.02 |
| JKM-2×4(Ⅰ)E |
2 |
230
180 |
65
55 |
20 |
24 |
10 |
XP800 |
5.7 |
|
7×8×2.2 |
In this table, weights and dimensions do not include micro - drag devices |
| JKM-2.25×4(Ⅰ)E |
2 |
215 |
65 |
22 |
28 |
10 |
XP800 |
6.5 |
1.39 |
7.4×8×2.3 |
| JKM-2.8×4(Ⅰ)E |
2.5 |
335 |
100 |
28 |
|
250 |
14 |
XP1
000
|
9.1 |
2.48 |
8.5×10×2.65 |
| JKM-2.8×4(Ⅱ)E |
P2H630 |
10 |
2.48 |
7.5×8.5×2.65 |
| JKM-2.8×6(Ⅰ)E |
2.5 |
500 |
140 |
28 |
|
14 |
XP1120 |
15.8 |
3.69 |
8×8.5×2.68 |
| JKM-2.8×6(Ⅱ)E |
P2H800 |
17.8 |
3.69 |
7.5×8.5×2.68 |
| JKM-2.8×6(Ⅲ)E |
|
14 |
3.7 |
7.5×8×2.7 |
| JKM-3.25×4(Ⅰ)E |
3 |
450 |
140 |
32 |
|
300 |
14 |
XP1120 |
7.35
10.5
11.5 |
13.36 |
2.72 |
8.9×8.9×2.98 |
| JKM-3.25×4(Ⅱ)E |
P2H800 |
15.74 |
2.72 |
8.5×8.7×2.98 |
| JKM-3.5×6(Ⅰ)E |
3 |
790 |
220 |
35 |
|
300 |
14 |
XP1250 |
22.85 |
4.06 |
11.5×9.2×3.15 |
| JKM-3.5×6(Ⅱ)E |
P2H900 |
25.6 |
4.06 |
10.5×9.2×3.15 |
| JKM-3.5×6(Ⅲ)E |
|
21 |
4.06 |
8×9×3.2 |
| JKM-4×4(Ⅰ)E |
3.2 |
690 |
180 |
39.5 |
|
300 |
14 |
XP1250 |
7.35
10.5
11.5 |
18.5 |
4.1 |
9×10×3.63 |
| JKM-4×4(Ⅱ)E |
P2H900 |
24.7 |
4.1 |
9×10×3.63 |
| JKM-4×4(Ⅲ)E |
|
|
16 |
4.1 |
7.5×9×3.63 |
| JKM-4×6(Ⅲ)E |
3.2 |
1030 |
270 |
39.5 |
|
300 |
|
|
22 |
6.5 |
9×9×3.63 |
| JKM-4.5×6(Ⅲ)E |
3.6 |
1330 |
340 |
45 |
|
300 |
16 |
30 |
10 |
12×9.5×3.9 |
| JKM-5×6(Ⅲ)E |
4 |
1600 |
420 |
50 |
|
300 |
|
|
|
|

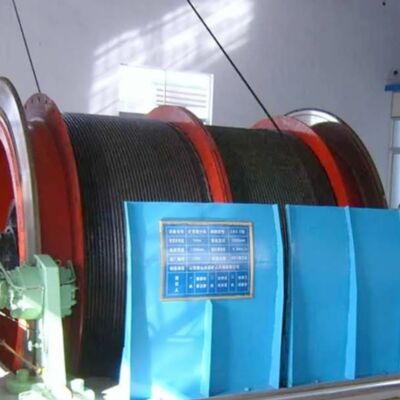

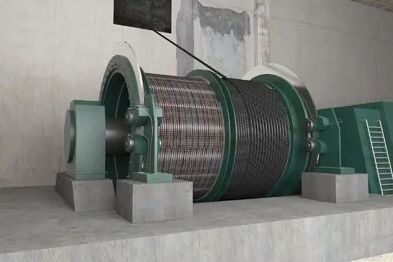

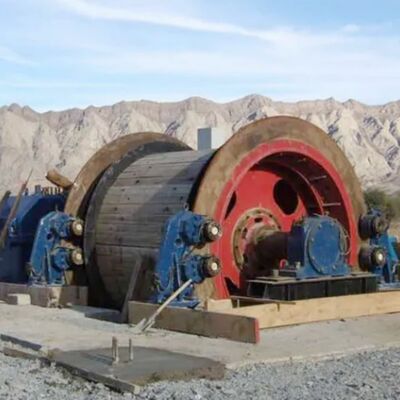

Product Display of Conveying Hoisting Machine
Conveying Hoisting Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
