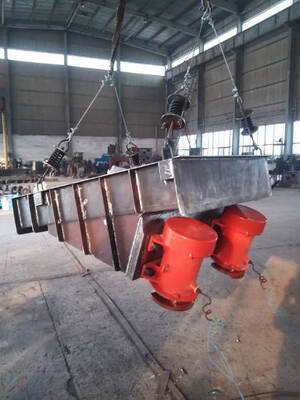

Easy To Install Simple To Maintain GZG Series Self Synchronizing Inertial Vibrating Feeder
The GZG series self-synchronizing inertial vibrating feeder has a wide range of applications, covering numerous industries including mining, metallurgy, coal, building materials, light industry, chemical, power, and grain. It is mainly used to uniformly, continuously, or quantitatively transport lumpy, granular, and powdery materials from storage silos and hoppers to receiving equipment. It is compatible with feeding and batching operations in crushing, coal preparation, screening, conveying, and packaging equipment.
The GZG series features a standard trough structure, suitable for feeding conventional materials without special operating conditions. The GZGF series adopts a closed trough design, specifically designed for conveying materials with high dust content and volatile properties, effectively reducing dust spillage and material volatilization.
This inertial vibrating feeder can be used with a reverse-connection brake control box, enabling rapid equipment shutdown and helping the feeder quickly pass through the resonance range, improving operational stability.
Product Features and Advantages
Compact size and lightweight design with a simple and compact structure; Easy installation and maintenance; Low operating costs; High working efficiency and strong feeding and conveying capacity; Low operating noise, helping to optimize the on-site working environment; Low energy consumption and excellent power factor; Designed to far exceed resonance conditions, ensuring stable amplitude, reliable operation, and strong adaptability to various materials; With the addition of a motor speed controller, stepless adjustment of the feeding rate can be achieved without adjusting the eccentric block, simplifying operation.
Product Parameters of Conveying Hoisting Machine
| Model |
Capacity
(t/h)
|
Feed size
(mm)
|
Power
(kw) |
| Level |
-10° |
| GZG40-4 |
30 |
40 |
100 |
2×0.25 |
| GZG50-4 |
60 |
85 |
150 |
2×0.25 |
| GZG63-4 |
110 |
150 |
200 |
2×0.50 |
| GZG70-4 |
120 |
170 |
200 |
2×0.50 |
| GZG80-4 |
160 |
230 |
250 |
2×0.75 |
| GZG90-4 |
180 |
250 |
250 |
2×0.75 |
| GZG100-4 |
270 |
380 |
300 |
2×1.5 |
| GZG110-4 |
300 |
420 |
300 |
2×1.5 |
| G2G140-6 |
400 |
470 |
300 |
2×2.2 |
| G2G180-6 |
450 |
520 |
300 |
2×2.2 |

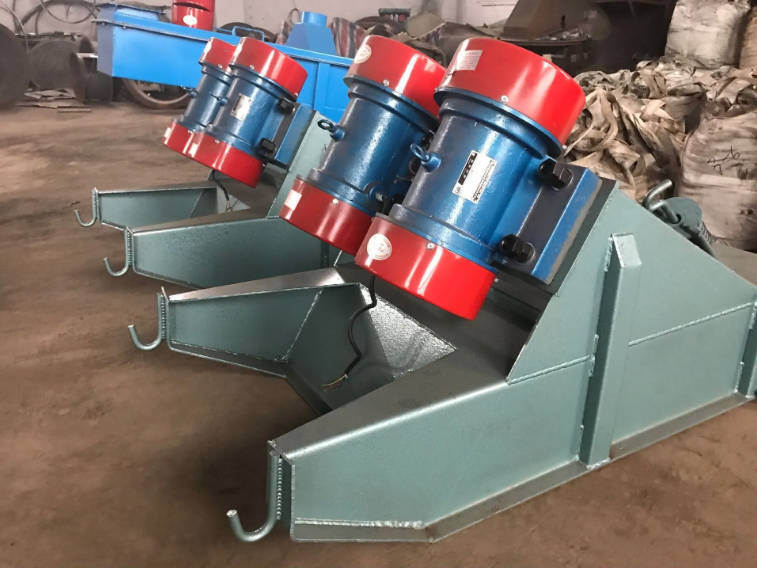

Product Display of Conveying Hoisting Machine
Conveying Hoisting Machine
