Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores

Large Image : Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores

Product Details:

Place of Origin:	Henan,China
Brand Name:	ZTIC
Certification:	IOS,CE
Model Number:	Ore Grinding Mill

Payment & Shipping Terms:

Minimum Order Quantity:	1 set/sets
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	3000 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Ore Grinding Mill	Key Words:	Ball Mill
After Sale Service:	Life-long Service	Warranty:	12 Month
Model:	Ф900×1800	Cylinder Rotation Speed:	36-38(r/min)
Ball Loading Capacity:	1.5t	Feed Particle Size:	<20mm
Discharge Particle Size:	0.075-0.89mm	Output:	0.65-2tph

Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores

1. Ore Grinding Mill- Ball Mill Basic Introduction

The ball mill is the core grinding equipment in the mining machinery industry. Through the impact and grinding effects produced by the rotating grinding media (steel balls, steel segments, etc.) inside the cylinder, it crushes and grinds mined ores to a suitable particle size, laying a foundation for subsequent mineral processing and useful mineral extraction. As a key piece of equipment in the mineral processing production line, the performance of the ball mill directly determines the ore grinding efficiency, finished product particle size and overall production capacity. It is widely suitable for the processing of various metallic and non-metallic ores, and is an essential equipment for mining enterprises to realize large-scale production.

2. Ore Grinding Mill- Ball Mill Welcome to Inquiry and Purchase

With years of deep cultivation in the mining machinery industry, we have always adhered to the core philosophy of "Quality-oriented, Customer First". Each ball mill undergoes strict factory testing to ensure stable performance and reliable quality. Whether it is a large-scale mining project or a customized demand for small and medium-sized mining enterprises, we can provide suitable solutions and comprehensive after-sales services — including on-site installation guidance, equipment commissioning, after-sales maintenance and spare parts supply.

We sincerely invite mining enterprises, engineering contractors and mining investors to consult for quotations and field inspections. With professional technology, high-quality products and attentive service, we will help your mining project land efficiently and achieve greater benefits!

3. Ore Grinding Mill- Ball Mill Product parameters

SPEC	Cylinder rotation speed	Ball loading capacity	Feed particle size	Discharge particle size	Output	Motor power	Total weight
SPEC	(r/min)	(t)	(mm)	(mm)	(t/h)	(kw)	(t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	Determined by process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	Determined by process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	Determined by process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525

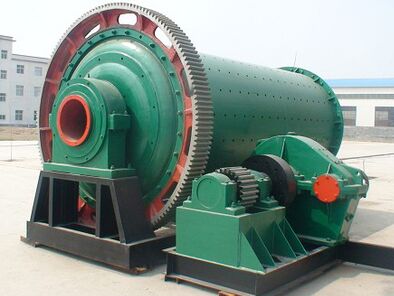

Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores

Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores 0

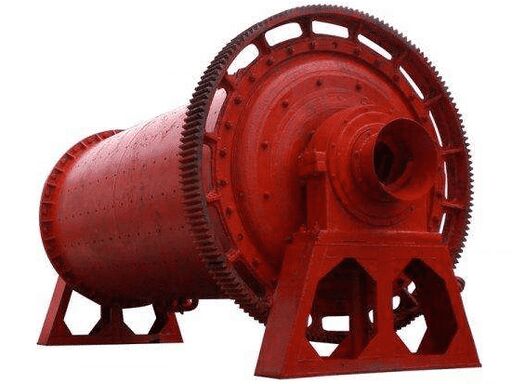

Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores

Ore Grinding Mill Ball Mill Designed For Grinding Various Metallic Ores 1
